ULT-1KRT
$401.00 Configured Summary
ULT-1KRT

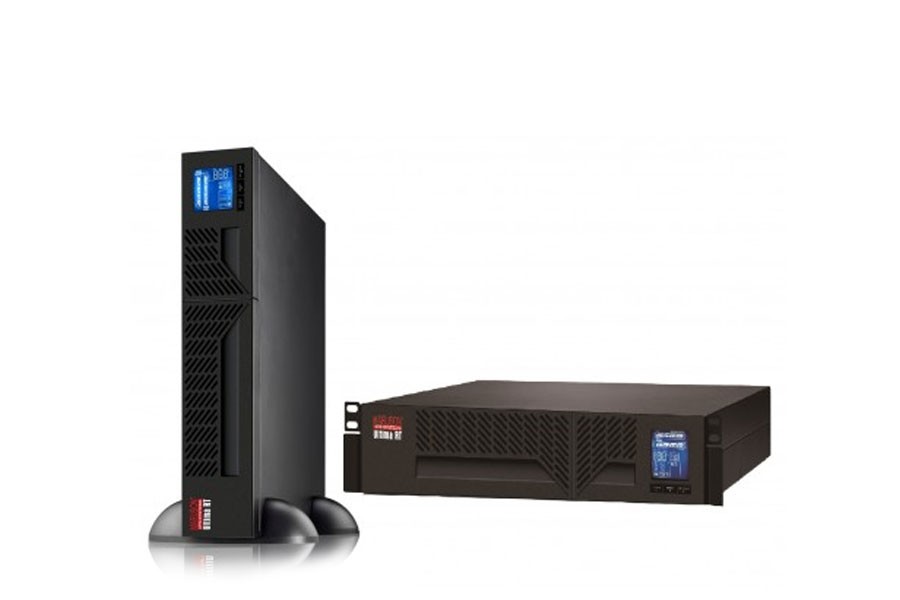

Maruson ULT-1KRT 1000VA/900W UPS System
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU MARUSON_ULT-1KRT
Details
Mfr Part Number:
ULT-1KRT

Features:
True double-conversion online UPS
0.9 Output power factor
ECO and advanced ECO mode for energy saving
Easy-shift LCD display for rack/tower mode
Programmable power management outlets
50/60 Hz frequency converter mode
Emergency Power Off (EPO) function
Extendable runtime feature ("L" model)
Capacity: 1000VA / 900W

Input:
Nominal Input Voltage: 100 - 120V AC
Voltage Range: 55 - 150V AC $plusmn; 5%
Frequency Range: 40Hz - 70Hz
Power Factor: ≥ 0.99 @ Nominal Voltage (100% Load)
Plug Type: NEMA 5-15P

Output:
Nominal Output Voltage: 100 - 120V AC
AC Voltage Regulation (Batt. Mode): ± 1%
Frequency Range (Synchronized Range): 47 - 53 Hz or 57 - 63 Hz
Frequency Range (Batt. Mode): 50 Hz ± 0.5% or 60Hz ± 0.5%
Current Crest Ratio: 5:1 (max.)
Harmonic Distortion: ≤ 2 % THD (Linear Load); ≤ 4 % THD (Non - Linear Load)
Transfer Time:
Line Mode to Battery Mode: Zero
Inverter to Bypass: 4 ms (Typical)
Waveform (Batt. Mode): Pure Sinewave
Outlet Type: 4x NEMA 5-15R

Efficiency:
AC Mode: 87%
Battery Mode: 85%
ECO Mode: 94%

Battery:
Battery Type: 12V / 9 AH
Battery Numbers: 2
Typical Recharge Time: 4 hours recover to 90% capacity
Charging Current (Max): 1.0A
Charging Voltage: 27.4V DC ± 1%
Indicators: LCD Panel - UPS status, Load level, Battery level, Input/Output/battery info, Discharge time and Fault indicators

Alarm:
Battery Mode: Beeps every 4 seconds
Low Battery: Beeps every second
Overload: Beeps twice every second
Fault: Continuously beeps
Management: Smart RS-232 / USB - Supports Windows 8/ 7/ 2008/ Vista/ XP/ 2003/ 2000, Linux, Unix, and MAC

Applications:
Networks and servers
Small and medium data centers
Medical server applications
Noise Level: Less than 50dBA @ 1 Meter

Dimensions (WxDxH):
17.2 x 15.0 x 3.5 inch / 438.0 x 380.0 x 88.0 mm (2U)

Weight:
29.1 lbs / 13.2 kg
ULT-1KRT
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
