$3,881.00 Configured Summary
Maruson 10KVA / 9000W, 3U, double conversion online UPS

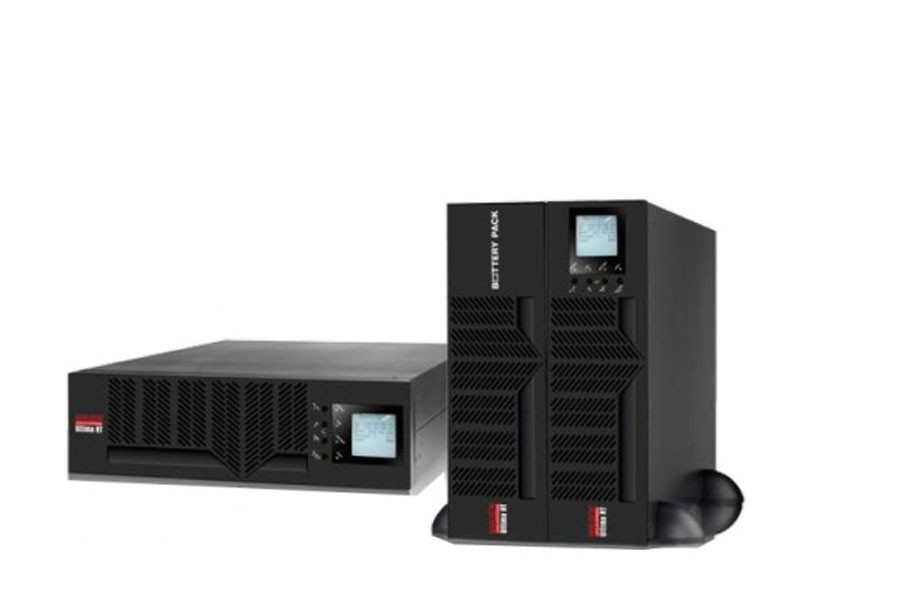

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Mfr Part Number:
10KVA / 9000W, 3U, double conversion online UPS
Battery pack, 3U
0.9 output power factor
DSP controlled for advance maintenance
Isolation transformer built in for dual 120V and 240V output
Efficiency Corrective Optimizer (ECO) and Emergency Power Off (EPO)
Easy-shift LCD display for rack/tower mode
N+X parallel redundancy available up to 3 units
External maintenance bypass switch (optional)
SNMP intelligent slot
10000VA / 9000W
Nominal Voltage: 200/208/220/230/240 VAC
Voltage Range: 176-300 VAC at 100% load; 110-175 VAC de-rating up to 50% load
Frequency Range: 46~54 Hz or 56~64 Hz
Power Factor: ≥ 0.96 @ 100% load
Nominal Output Voltage: 104VAC x 2/ 208VAC or 110 VAC x 2/ 220 VAC or 115 VAC x 2/ 230 VAC or 120 VAC x2/ 240VAC
AC Voltage Regulation : ± 3%
Frequency Range (Synchronized Range): 46~54 Hz or 56~64 Hz
Frequency Range (Batt, Mode): 50Hz ± 0.1Hz or 60Hz ±0.1 Hz
Current Crest Ratio: 3:1 (max.)
Harmonic Distortion: ≤ 3.5% THD (Linear Load) ≤7% THD (Non-linear Load)
Transfer Time:
Line Mode to Battery Mode: Zero
Battery Mode to Line Mode: Zero
Inverter to Bypass: Zero
Bypass to Inverter: Zero
Waveform (Batt. Mode): Pure Sinewave
Line Mode: 84%
Battery Mode: 83%
ECO Mode: 87%
Standard Model:
Nominal Voltage: 240 VDC
Battery Type: 12 V / 9 AH
Battery Numbers: 20 (18-20 pcs adjustable)
Typical Recharge Time: 9 hours recover to 90% capacity
Charging Current (Max): 1.0 A
Float Charging Voltage: 273VDC (based on battery numbers at 20 pcs)
Long Run Model:
Battery Type and Numbers: Depending on application
charging Current (max.): 4.0 A
float Charging Voltage: 273 VDC (based on battery bumbers at 20 pcs)
LCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge time and Fault conditions.
Battery Mode: Beeps every 4 seconds
Low Battery: Beeps every second
Overload: Beeps twice every second
Fault: Continuously beeps
Smart RS-232 / USB: Supports Windows 8/ 7/ 2008/ Vista/ XP/ 2003/ 2000, Linux, Unix, and MAC
Noise Level:
Less than 60dBA @ 1 Meter
Networks and servers
Small and medium data centers
Medical server applications

Dimensions (DxWxH):
Standard Model:
UPS unit: 26.3"x 17.2" x 5.2"
51.8 lb
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
