$575.00 Configured Summary

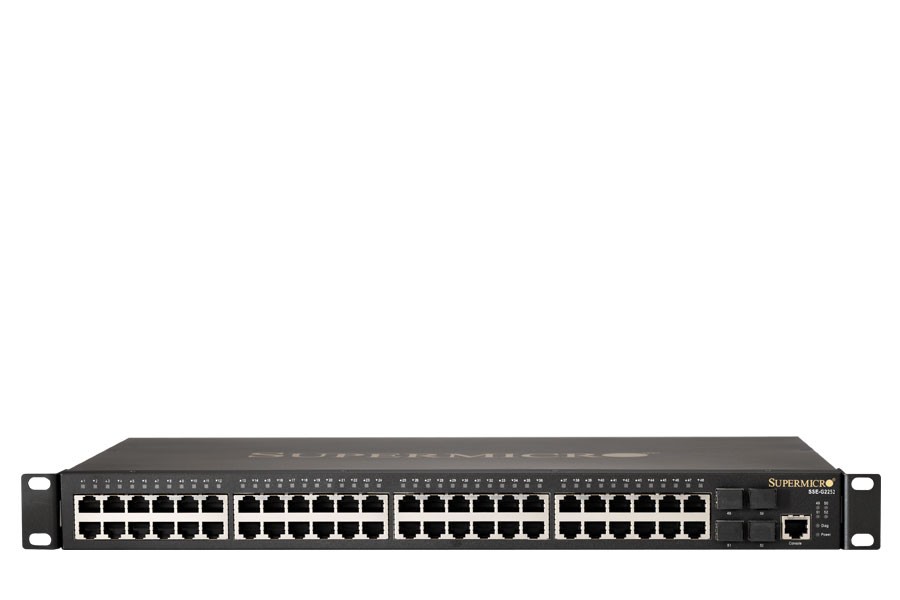

Supermicro 48 Ports Layer 2 Ethernet Switch
  • Layer 2 Switching
  • Non-blocking connectivity
  • 1U form factor for flexible installation
  • 48 RJ45 10/100/1000 ports and 4 SFP 1G ports
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
17.3" (440mm)
11" (379mm)
1.7" (43mm)
6.8 lbs (3.1 kg)
Available Colors:
Switching Features:
 - 16K MAC address entries
 - Auto negotiation on all ports
   * Flow Control supported
   * Provides IEEE 802.3x for full duplex mode
 - 10/100Mbps mode > back pressure flow control half duplex mode
 - Storm protection
   * Broadcast
   * Multicast
 - Spanning tree
   * IEEE 802.1D spanning tree
   * IEEE 802.1s multiple spanning tree (32 instance)
   * IEEE 802.1w rapid spanning tree
   * Spanning Tree fast forwarding
   * Loopback Detection
   * Auto edge port
   * BPDU filter/guard
   * Root Guard
 - VLANs support:
   * IEEE 802.1Q VLAN
   * Port-based VLAN
   * MAC-based VLAN
   * Protocol-based VLAN
      - 16 entries per system
   * IP-based VLAN
   * 256 active VLANs
   * Support private VLAN Edge (Traffic Segmentation)
   * Voice VLAN
   * Guest VLAN
   * VLAN Trunking
   * GVRP
   * Supports Multicast VLAN Registration (MVR)*:
     - 5 MVR group
     - 256 MVR source group (shared with IPMC table)
 - Double tagging:
   * IEEE 802.1 Q-in-Q
   * IEEE 802.1ad provider bridge
   * Unqualified learning and forwarding
 - IGMP:
   * IGMP snooping v1/v2/v3
   * IGMP v1/v2 querier
   * IGMP immediate leave
   * IGMP filtering/throttling
   * IGMP snooping leave proxy
   * IGMP v1/v2/v3 proxy
 - Link Aggregation
   * IEEE 802.3ad with LACP
   * Manual trunking
   * Up to 12 aggregation groups are supported, and up
      to 8 ports per group
Security Features:
 - Port Security (MAC-binding)
   * Static port (MAC-based)
   * Dynamic port (MAC-based)
 - User/Password protected system management interface
   * SNMP
   * Web
   * Telnet
 - Access control list (512 rules)
   * L2/L3/L4
   * Time-based ACL
 - Extended IPv6 ACL
 - RADIUS (RFC2138)
 - SSH v1.5/v2.0
Quality of Service (QoS):
 - Provides 4 queues per port
 - Priority queue scheduling scheme
   * Strict priority
   * Deficit weighted round robin
 - IPv4/v6 DiffServ
   * L2/L3/L4 Traffic Classification / Priority Management
   * IEEE 802.1p (COS)
   * TCP/UDP port number
   * IP SA/DA
   * MAC SA/DA
   * IPv6
 - Queuing
   * Port based CoS
   * IEEE 802.1p VLAN information based CoS
   * IP ToS/IP precedence based CoS
   * DSCP based CoS
   * TCP/UDP port base CoS
   * QoS marking
 - Packet prioritization based on ingress/egress ports'
    pre-defined value listed below
   * Trusted
   * IEEE 802.1p/Q tag
   * ToS field tag
   * IPv4 DSCP
   * Ethernet type field
   * TCP and/or UDP port numbers
   * SA and/or DA IP address
   * ToS Field Tag
 - Traffic shaping
   * IP based (all ports)
   * Port based (all ports)
   * Port based shaping QoS aware
 - Per port bandwidth management
   * Resolution 64KB
 - Ingress/Egress metering at 64KB increments
   * Ingress/egress policer
   * Ingress and egress co-work
 - CPU interface filtering
Management Features:
 - RJ45-type console interface
 - Management methods:
   * Web-based
   * Telnet (4 session)
   * SNMP
 - Software upgrade/download
 - Multiple configuration file upload / download by TFTP and HTTP
 - Dual image
 - Auto upgrade
 - IP address assignment
   * Static IP assignment
   * BOOTP and DHCP for IP address assignment
 - DHCP functions
   * DHCP client
   * DHCP snooping
   * DHCP Option 82 relay agent
   * DHCP snooping Option 82
   * DHCP dynamic provision option 66, 67
 - DNS: Client, Proxy
 - Telnet-Server
 - SNMP v1/v2c/v3
 - Port mirroring
 - VLAN mirroring
 - MAC-based mirroring
Operating Conditions:
 - Operating temperature: 0 to 50°C
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
