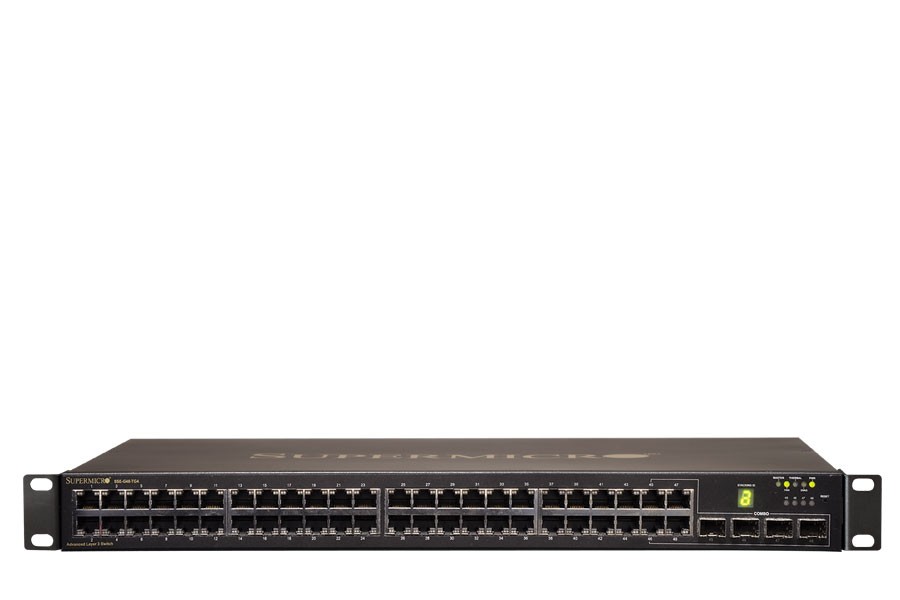

Supermicro SSE-G48-TG4 48-Port Layer 3 1/10-Gigabit Ethernet Switch
The new SSE-G48-TG4 from Supermicro is a standalone 48-port Layer 2/Layer 3 1/10-Gigabit Ethernet switch. It offers a full suite of advanced Ethernet switching features - the same as in the new Ethernet switch for the Supermicro SuperBlade® server systems. In addition to the 48 ports at 1-gigabit per second, the SSE-G48-TG4 offers up to four 10-gigabit per second "uplink ports". These uplink ports can be used to connect to 10-Gigabit Ethernet backbone networks or servers with 10-Gigabit Ethernet connectivity - or they can be "stacked" together to create an even larger capacity switch. Fiber or copper wiring options are available for the 10-Gigabit connections.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
1.7" (43mm)
17.3" (440mm)
15.2" (387mm)
Gross Weight:
w/o modules: 13.4 lbs (6.06 kg)
w/ modules: 13.7 lbs (6.20 kg)
Available Colors:
Port Attributes:
 - 48 one Gigabit Ethernet ports
      * 48 RJ45 Copper ports
      * Four fiber SFP combo ports
      * Two or four 10 Gigabit Ethernet uplink ports
      (requires Add-On-Module(s) for choice of connector
      type – see "Optional Accessories" below)
      * Up to two stacking ports
      (requires AOM-SSE-X2C accessory)
 -    Out-of-band RS-232 Management port
 - Switching capacity: 184 Gbps
 - Stacking performance - up to 48 Gbps
 - Forwarding rate: 131 Mpps
 - Spanning Tree (802.1D)
 - Rapid Spanning Tree (802.1w)
 - Multiple Spanning Trees (802.1s)
 - Virtual Redundant Routing Protocol (VRRP)
 - 802.1Q tagging, port and protocol based
 - 1024 VLANs
 - Dynamic VLAN Support (GVRP)
Quality of Service and DiffServ:
 - 8 priority queues per port
 - Adjusted WRR and Strict Priority Scheduling
 - Layer 2 / 3 / 4 Prioritization
 - Marking
 - Metering / Rate limiting
Switching Features:
 - Link Aggregation - 24 groups w/ 8 members per group
 - LACP Support
 - Link Layer Discovery Protocol (802.1AB)
 - Jumbo Frame Support
 - Port Mirroring - N to 1. Tx & Rx Configurable
Routing Features:
 - Static Routing, RIP v1/v2, RIPng, OSPF v1/v2/v3, BGP
 - IPv4 and IPv6 Routing
 - VRRP (Virtual Router Redundancy Protocol)
 - DVMRP (Distance Vector Multicast Routing Protocol)
 - IGMP Snooping v1/v2/v3
 - IGMP v1/v2/v3
 - PIM SMv6
 - 802.1x Port Based Authentication
 - Switch access password protection
 - Layer 2 / 3 / 4 Access control Lists
 - RADIUS and TACACS+ Authentication
 - SSH / SSL Encryption
 - Web-basd management interface - HTTP, HTTPS
 - Industry standard CLI with telnet, SSH or local
   management port
 - Scripting capability
 - Command completion
 - Context sensitive "Help"
 - Multiple levels of user privileges (CLI and Web UI)
 - SNMP v1/v2/v3
 - Four RMON Groups - (1, 2, 3 and 9)
 - Logging - syslog
 - Dual firmware images
 - Configuration file - upload / download
 - AOM-SSE-X2C: Two-port CX4
   Connector Module for copper connections
 - AOM-SSE-X2F: Two-port XFP Connector Module
   for Fiber connections
 - AOM-SSE-X2S: Two-port SFP+ Connector Module
   for Copper or Fiber connections
Operating Conditions:
 - Operating temperature: 0 to 40°C
 - Power Consumption: 145 W
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
