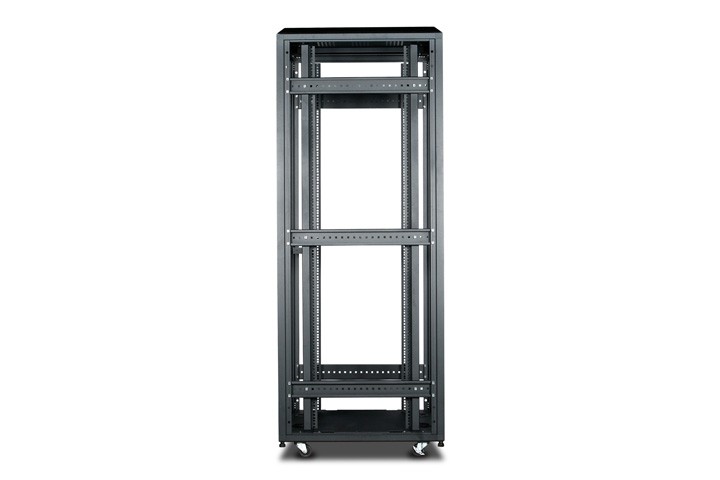

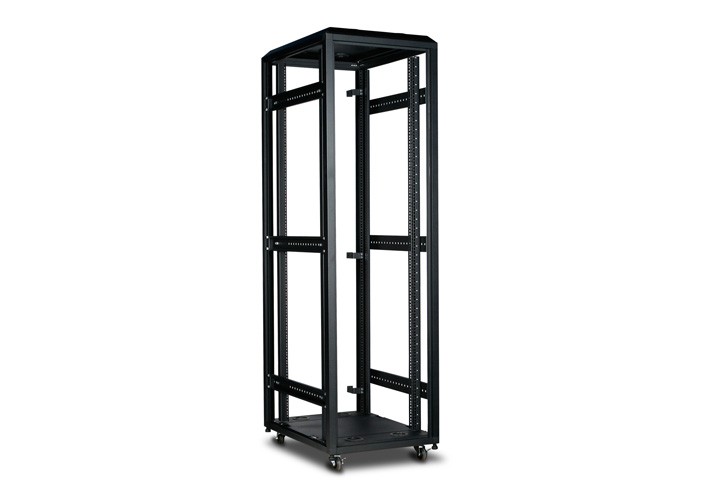

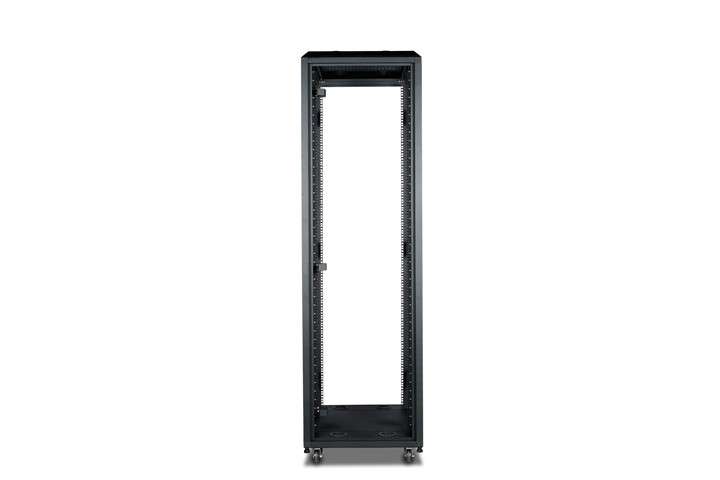

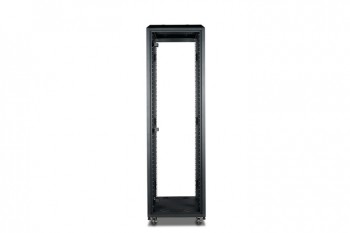

42U 4-Post 31.5" (800mm) Open Frame Rack
- Universal Fit Most of Rackmount Chassis and Equipment

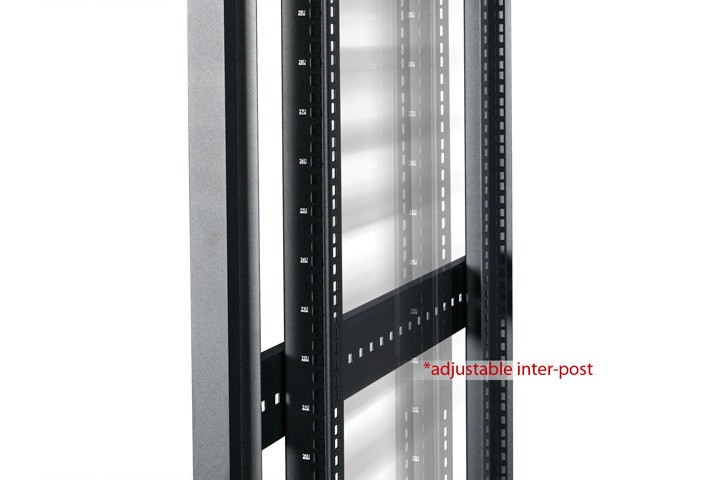

- Fully Adjustable Rails. Mounting Rails are Horizontally Adjustable to Ensure the Best
- Fit of Rack-mount Chassis
- Optional Side Panels
- Optional Front/Rear Doors

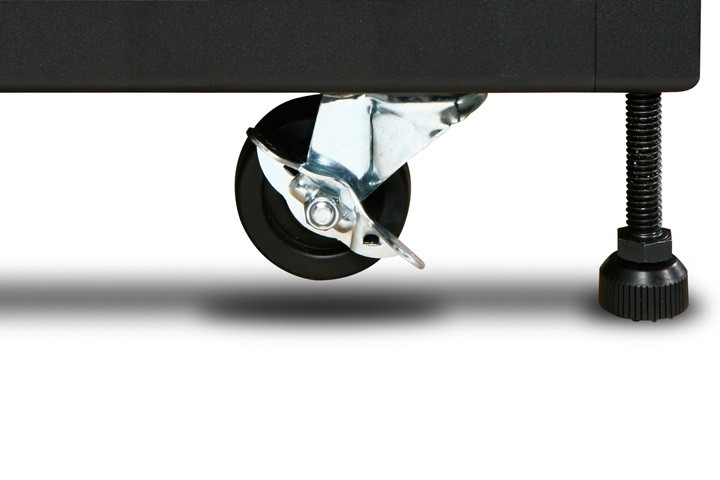

- Locking Mechanism Design on Casters
- Comes with M5 Mounting Screws and Cage Nuts
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
RoHS Compliance Version:
Horizontal Rails:SPCC t:2.0mm
Vertical Rails:SPCC t:2.0mm

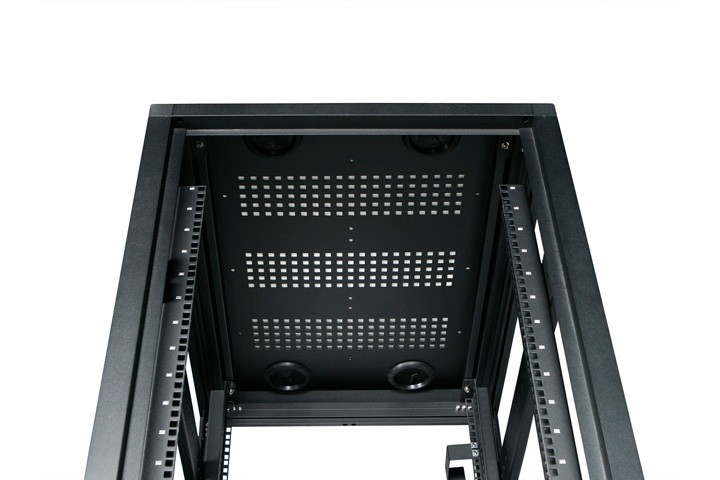

Top Panel:SPCC t:1.2mm
Supported Chassis Depth:
29" and under
Depth: outer post-to-post 26.5" max
23.50" x 82.50" x 31.50"
597 mm x 2,096 mm x 800 mm

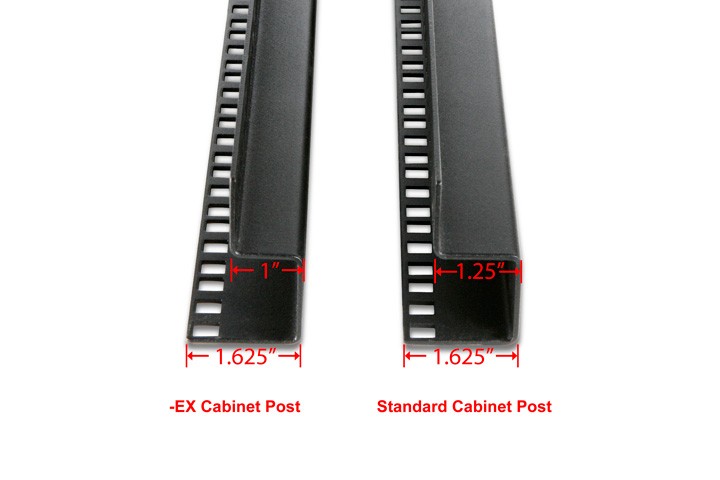

- for HP/ DELL/ IBM servers equipped with sliding rails, please contact sales person for availability of model number WX-428-EX.
- HTS code: 8473.30.5100 (ECCN is not applicable).
- make sure sliding rails minimum mounting depth is within the cabinet's internal maximum mounting depth 26.5".
