5038ML-H24TRF
$7,950.00 Configured Summary
5038ML-H24TRF

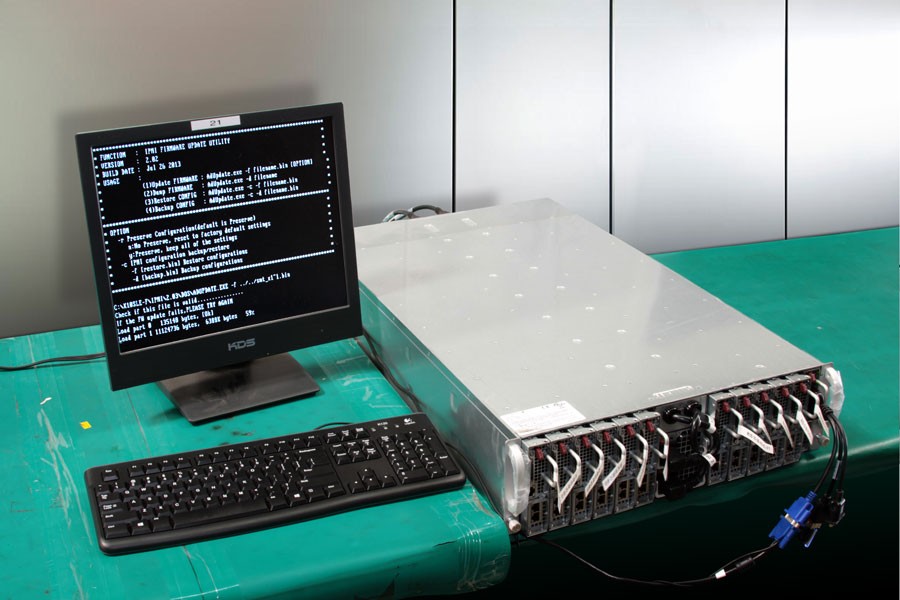

SuperMicro 3U 12 Blade MicroCloud SuperServer

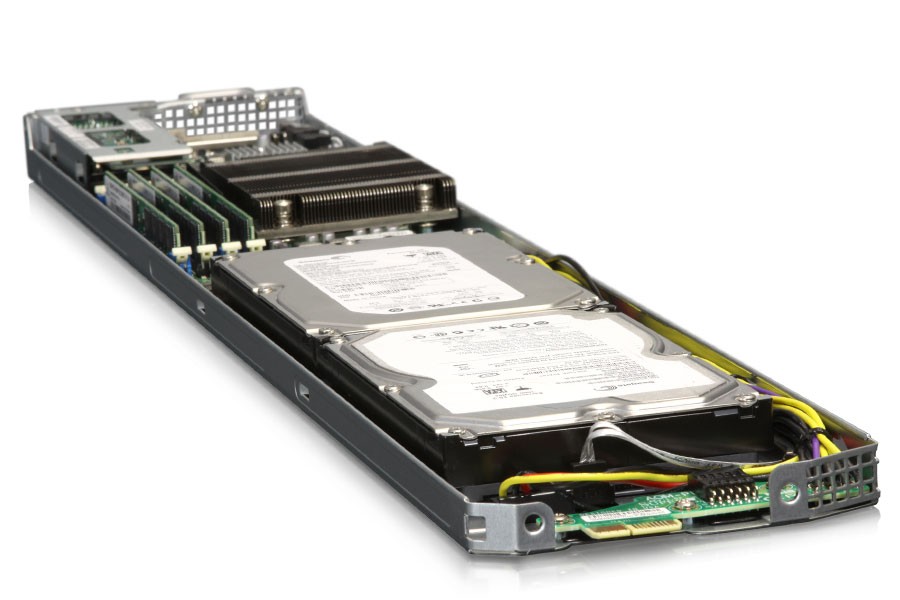

  • (per Sled)
  • Intel® Xeon® processor E3-1200 v3 family, Intel® 4th Gen Core™ processor family; Socket H3 (LGA1150) up to 80W
  • 2x 2.5" SATA3 (6Gb/s) HDDs or 4x 2.5" Slim SSD with Optional kit
  • Up to 32GB DDR3 VLP ECC UDIMM 1600MHz support in 4 sockets
  • 4x GbE LAN (Intel i350), 1x Shared LAN for IPMI Remote Management
  • Shard 1x VGA, 1x COM ports, 2x USB 2.0 (with KVM dongle)
  • 4x 9cm Heavy duty fans with optimal cooling zone
  • 2000W Redundant Platinum Level Digital power supplies
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-5038ML-H24TRF
Processor
CPU:
Intel® Xeon® processor E3-1200 v3 family, Intel® 4th Gen Core™ processor family
Up to 80W
Socket H3 (LGA 1150)
Memory
(per sled)
Memory Capacity:

4x 240-pin DDR3 DIMM sockets
Supports up to 32 GB DDR3 VLP ECC
Memory Type:
1333/1600MHz ECC DDR3 (VLP) SDRAM 72-bit, 240-pin gold-plated UDIMMs
DIMM Sizes:
8GB, 4GB, 2GB, 1GB
Memory Voltage:
1.5 V, 1.35 V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
3U barebone
Dimensions
Height:
5.21" (132.5 mm)
Width:
17.5" (444.5 mm)
Depth:
31.15" (791.2 mm)
Packing:
720mm (W) x 409mm (H) x 1076mm (L)
Weight:
95.0 lbs (43.09 kg) - barebone
115.0 lbs (52.16 kg) - with 2.5" HDDs
Color:
Black
Front Panel
Power Button
Node Switch
Bios
(per sled)
BIOS Type:
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features:
DMI 2.3
ACPI 1.0 / 2.0
USB Keyboard support
SMBIOS 2.3
Onboard Devices
(per sled)
Chipset:
Intel® C224 PCH chipset
SATA:
4x SATA3 (6Gbps); 2x per node w/ RAID 0, 1
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM over LAN support
Aspeed AST2400 BMC
Graphics:
Aspeed AST2400 Graphics (BMC with Graphic controller)
HDD Drive Bays
(per sled)
2x 2.5" SATA3 HDDs per sled; up to 24x 2.5" HDDs total
OR 4x 2.5" Slim SSDs per sled; up to 48x 2.5" SSDs total
Enterprise SATA HDD and SSD only recommended
Power Supply
2000W redundant digital power supplies w/ PMBus
AC Input:
100-120Vac: +12V/91.7A; +5Vsb/4A
120-140Vac: +12V/116.7A; +5Vsb/4A
200-220Vac: +12V/150A; +5Vsb/4A
220-230Vac: +12V/165A; +5Vsb/4A
230-240Vac: +12V/166.7A; +5Vsb/4A
Total Output Power:
1100W/1400W/1800W/1980W/2000W
Certification:
80+ Platinum Level
Input Output
(per sled)
Serial ATA:

4x SATA3 (6Gbps) ports
LAN:
4x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Shared IPMI LAN port
USB:
2x USB 2.0 ports
VGA:
1x VGA port
Cooling
4x 9cm Heavy duty fans with optimal cooling zone
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Included Items
Motherboard / Chassis:
12x MBD-X10SLE-DF
1x CSE-939HD-R2K02B
Cable 1:
1x CBL-0218L
Heatsink / Retention:
24x SNK-P0047PSR
Backplane:
1x BPN-SAS-939H
Add-on Card:
12x AOM-PDB-MC24-O-P
Add-on Card:
12x AOM-BPN-MC24-O-P
Mounting Rail:
1x MCP-290-41803-0N

5038ML-H24TRF5038ML-H24TRF5038ML-H24TRF5038ML-H24TRF5038ML-H24TRF5038ML-H24TRF5038ML-H24TRF5038ML-H24TRF5038ML-H24TRF
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
*Please contact our sales rep for special requirements
Added
Intel® Xeon® Processor E3-1220 v3 (3.1GHz 80W 8M cache)
+ $230.00
Intel® Xeon® Processor E3-1220L v3 (4M Cache, 13W)
+ $238.00
Intel® Xeon® Processor E3-1230L v3 (8M Cache, 25W)
+ $308.00
Intel® Xeon® Processor E3-1240L v3 (8M Cache, 25W)
+ $342.00
MEMORY
Select Memory Capacity:
*Please contact our sales rep for special requirements
Added
4GB DDR3L 1600MHz ECC DIMM Memory (VLP)
+ $51.00
8GB DDR3 1600MHz ECC DIMM Memory (VLP)
+ $99.00
8GB DDR3 1333MHz ECC DIMM Memory (VLP)
+ $99.00
HARD DISK WD/Seagate/HGST Enterprise-Class
Select Storage Capacity:
*Please contact our sales rep for special requirements
Added
2.5" SATA 6Gb/s 7200RPM 500GB
+ $59.00
2.5" SATA 6Gb/s 7200RPM 1TB
+ $215.00
2.5" SATA 6Gb/s 7200RPM 2TB
+ $384.00
2.5" SSD SATA 6Gb/s 256GB
+ $94.00
2.5" SSD SATA 6Gb/s 512GB
+ $160.00
2.5" SSD SATA 6Gb/s 1TB
+ $332.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
Linux Ubuntu LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
