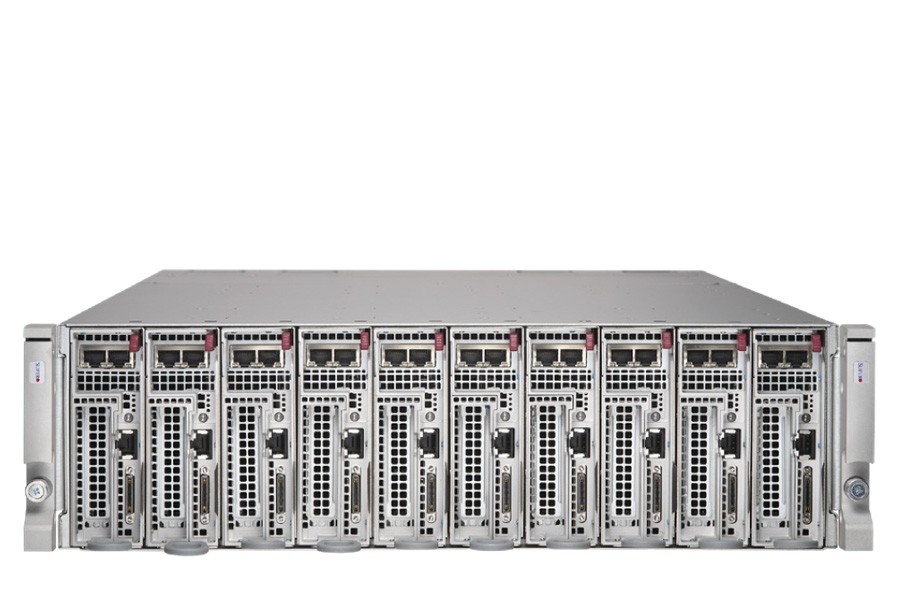

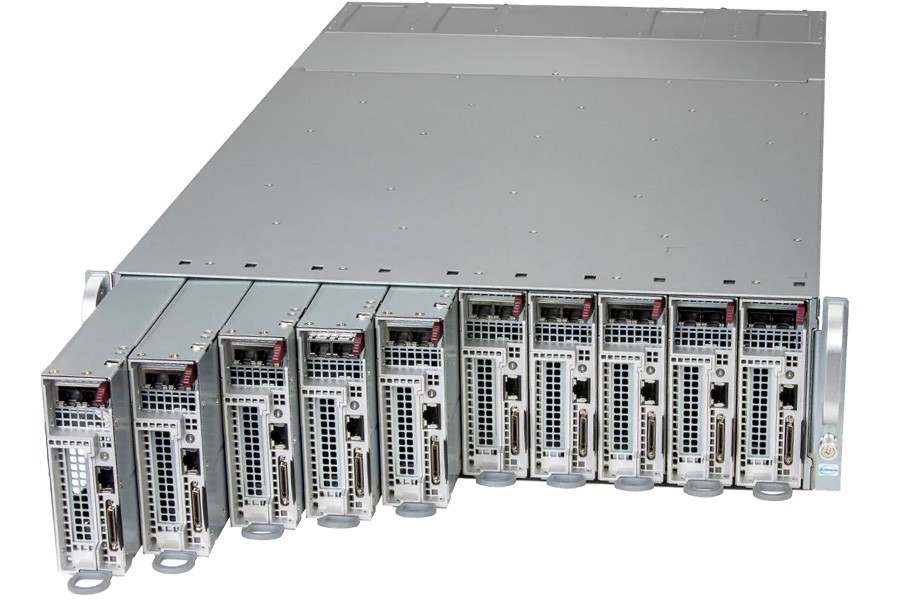

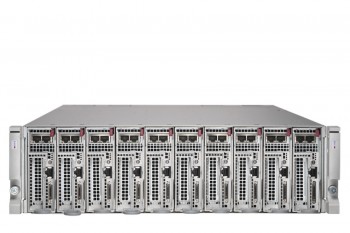

Supermicro 3U 10Nodes 40Bays Single Processor AMD Rackmount MicroCloud Server

Supermicro 3U 10Nodes 40Bays Single Processor AMD Rackmount MicroCloud Server

Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 or Ryzen™ 7000 / 9000 Series Processor up to 170W with air cooling
Support for up to 1 single-width PCIe GPU accelerator cards
Up to 4 DIMMs supporting up to 192GB DDR5-5200 in 2DPC
Up to 1 PCIe 5.0 x16 LP + 1 PCIe 5.0 x4 MicroLP slots
Up to 4 internal 2.5" (2 NVMe and 2 SATA) drive bays
2000W Redundant (2+2 or 3+1) 80+ Titanium Level high-efficiency power supplies
Cloud Computing, Web/Collocation Services, Web Cache, CDN, Video Streaming, Social Networking, Downloads, Corporate - WINS, DNS, Print, Login

Storage configuration notice:
External:
(2+2)x 2.5" Fixed Drive per Node
M.2:
1x M.2 per Node

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	AS-3015MR-H8TNR

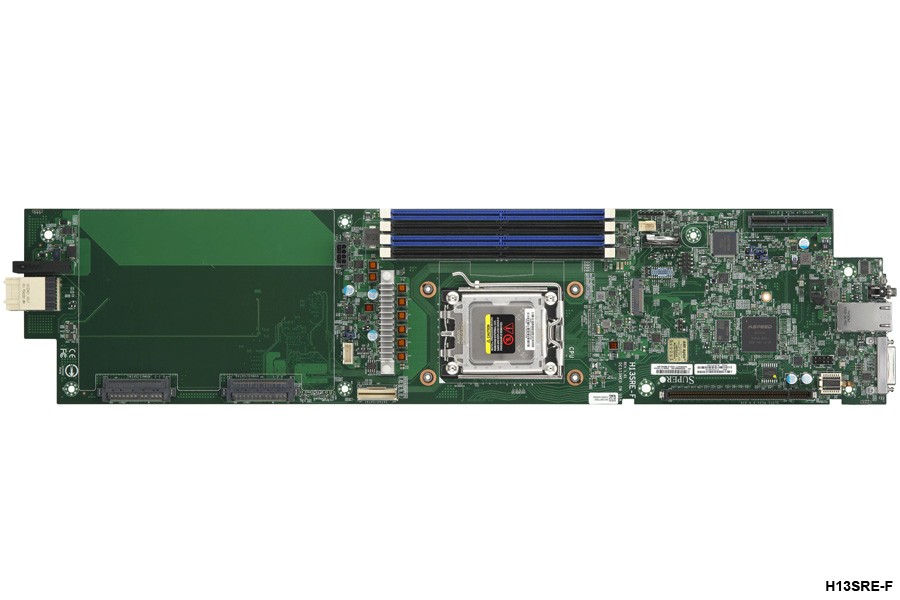

Processor	(per Node) CPU: Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 Series Processor Core Count: Up to 16C/32T; Up to 128MB Cache Note: Supports 65W - 170W TDP CPUs (Air Cooled) Air Cooled CPUs with TDP over 120W only supported under specific conditions. Contact a Supermicro representative for details. GPU (per Node) Max GPU Count: Up to 1 single-width GPU Supported GPU: NVIDIA PCIe: L4, A2
Memory	(per Node) Memory: Slot Count: 4 DIMM slots Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM Memory Voltage: 1.1V
Chassis	3U Rackmount Chassis
Dimensions	Height: 5.16" (131 mm) Width: 17.68" (449 mm) Depth: 30.51" (775 mm)
Front Panel	Buttons: Power On/Off
Bios	BIOS Type: AMI 32MB SPI Flash EEPROM
Onboard Devices	(per Node) NVMe: NVMe; (Native) Chipset: System on Chip Network Connectivity: No NIC option supported

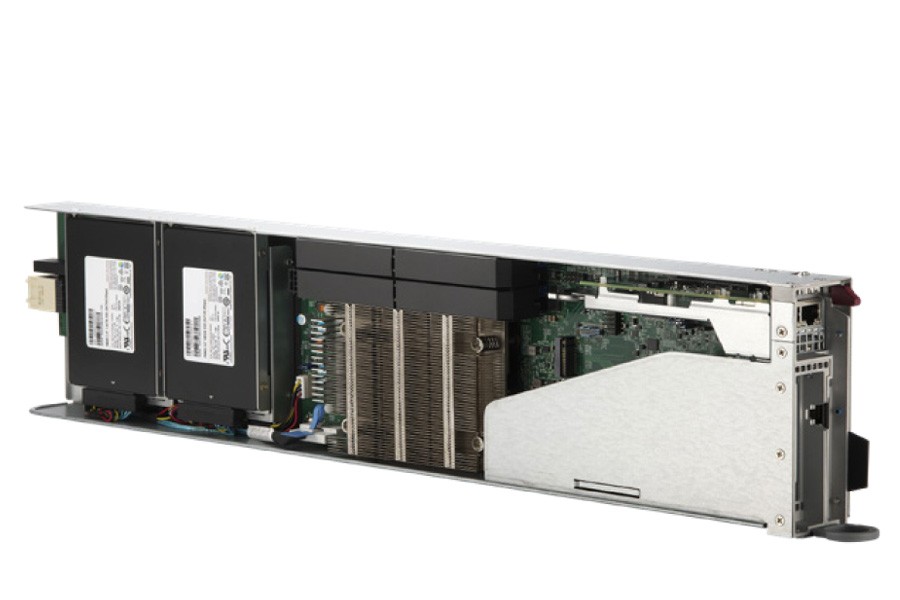

HDD Drive Bays	(per Node) Drive Bays Configuration: Default: Total 4 bays 2 internal fixed 2.5" PCIe 5.0 NVMe drive bays 2 internal fixed 2.5" SATA drive bays M.2: 1 M.2 NVMe slot (M-key 2280/22110)
Expansion Slots	(per Node) PCI-Express (PCIe) Configuration: Default 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x4 MicroLP slot
Power Supply	4x 2000W Redundant (3 + 1) Titanium Level (96%) power supplies Dimension (WxHxL): 73.5 x 40 x 203 mm Input: 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vdc 2000W: 230-240Vac 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for China only) +12V: Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac) 12V SB: Max: 3.5A / Min: 0A Max: 3.5A Output Type: Backplanes (gold finger)
Input Output	(per Node) USB: 2 USB 2.0 ports Video: 1 port TPM: 1 TPM Onboard/port 80

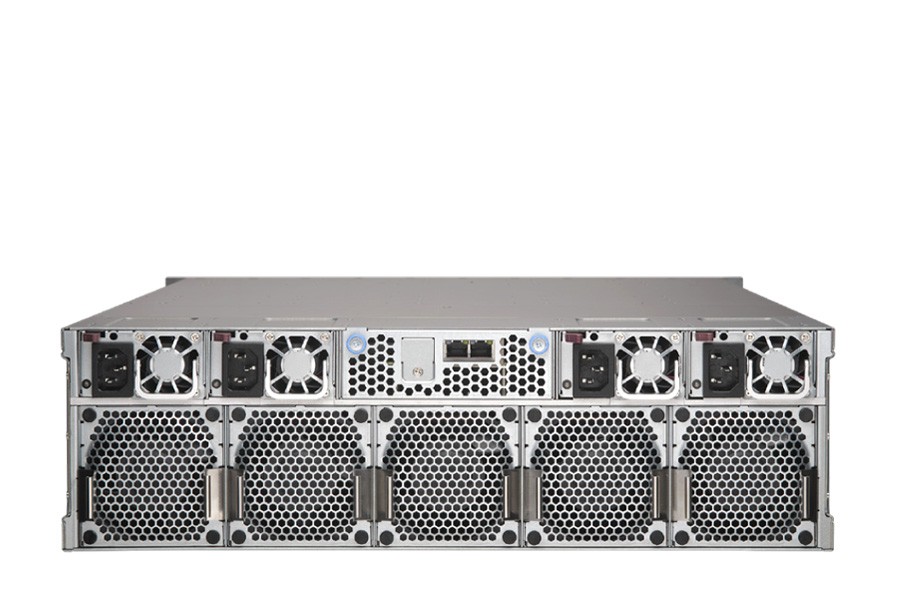

Cooling	Fans: 5 Heavy Duty 8cm Fan(s) Air Shroud: 10 Air Shrouds
Operating Environment	ROHS: RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
Details	Management Software: SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Power configurations: Power-on mode for AC power recovery ACPI 6.0 Power Management Security Hardware: Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant Features: Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown PC Health Monitoring Temperature: Monitoring for CPU and chassis environment CPU: Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V FAN Fan: speed control, Dual Cooling Zone

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU

Select CPU:

AMD EPYC 4004 Series Processor 4124P (3.80GHz,65W)

AMD EPYC 4004 Series Processor 4244P (3.80GHz,65W)

AMD EPYC 4005 Series Processor 4245P (3.90GHz,65W)

Added

AMD EPYC 4004 Series Processor 4344P (3.80GHz,65W)

AMD EPYC 4005 Series Processor 4345P (3.80GHz,65W)

AMD EPYC 4004 Series Processor 4364P (4.50GHz,105W)

AMD EPYC 4004 Series Processor 4464P (3.70GHz,65W)

AMD EPYC 4005 Series Processor 4465P (3.40GHz,65W)

AMD EPYC 4005 Series Processor 4545P (3.00GHz,65W)

MEMORY

Select Memory Capacity:

16G DDR5 5600MHz ECC UDIMM

Added

32G DDR5 5600MHz ECC UDIMM

Enterprise-Class HDD/SSD

Select Storage Capacity:

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

NVMe M.2

*No NVMe M.2 Drives

Added

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB

Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB

Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

NVMe U.2/U.3

*No NVMe U.2 Drives

Added

Intel D7-P5520 NVMe U.2 SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 960GB

Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB

Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB

Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB

Samsung PM9A3 2.5" U.2 NVMe SSD 15TB

OPERATING SYSTEM

Select Operating System:

*Please contact our sales for more operating system options

Added

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Linux Fedora Workstation Edition Linux 64-bit (No Media)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

Select Warranty:

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
