AS-2015SV-WTNRT
Please Inquire Configured Summary
AS-2015SV-WTNRT

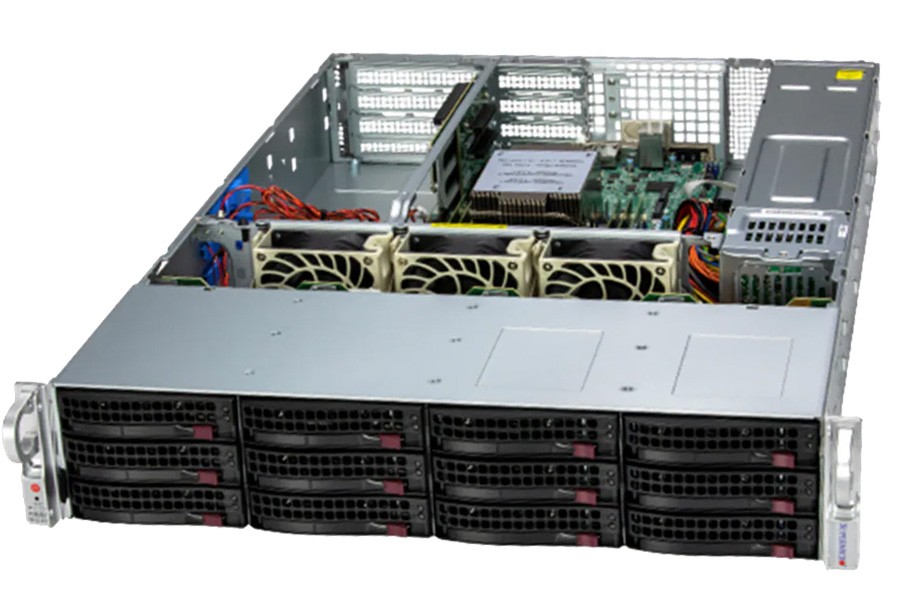

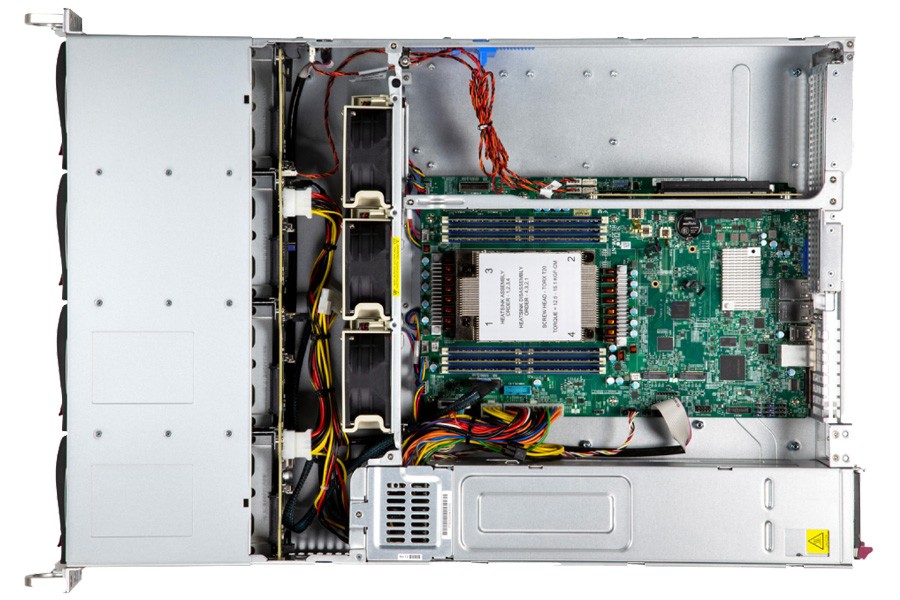

Supermicro 2U 12Bays Single AMD Processor Rackmount Server

  • Single Socket AMD EPYC™ 8004 Series Processor
  • 6x DIMM slots, DDR5-4800MHz memory, support up to 576GB
  • 2x PCIe 5.0 x16 FHFL;
  • 2x PCIe 5.0 x 8 LP, Supports up to 1 double-width or 2 single-width GPU(s)
  • Single dedicated IPMI LAN, dual 10GbE BaseT LAN ports via Broadcom BCM57416 Controller
  • 12 hot-swap 3.5"/2.5" SATA(default)/SAS drive bays or 6 SATA/NVMe hybrid + 6 SATA drive bays (optional cables or SAS controller card for NVMe and SAS drive bays)
  • Virtualization, Data Center Optimized, Firewall Applications, Database/Storage, Edge/Cloud Computing Services

Storage configuration notice:
12x 3.5" drive

2x M.2 drive
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU AS-2015SV-WTNRT
Processor
CPU:
Single processor(s)
AMD EPYC™ 8004 Series Processor
Core Count:
Up to 64C/128T
Note:
Supports up to 225W TDP CPUs (Air Cooled)

GPU
Max GPU Count:
Up to 1 double-width or 2 single-width GPUs
Supported GPU:
NVIDIA PCIe: T400, RTX 4000 Ada Generation
Memory
Memory:
Slot Count: 6 DIMM slots
Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM

Memory Voltage:
1.1V
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.5" (89 mm)
Width:
17.2" (437 mm)
Depth:
25.6" (650 mm)

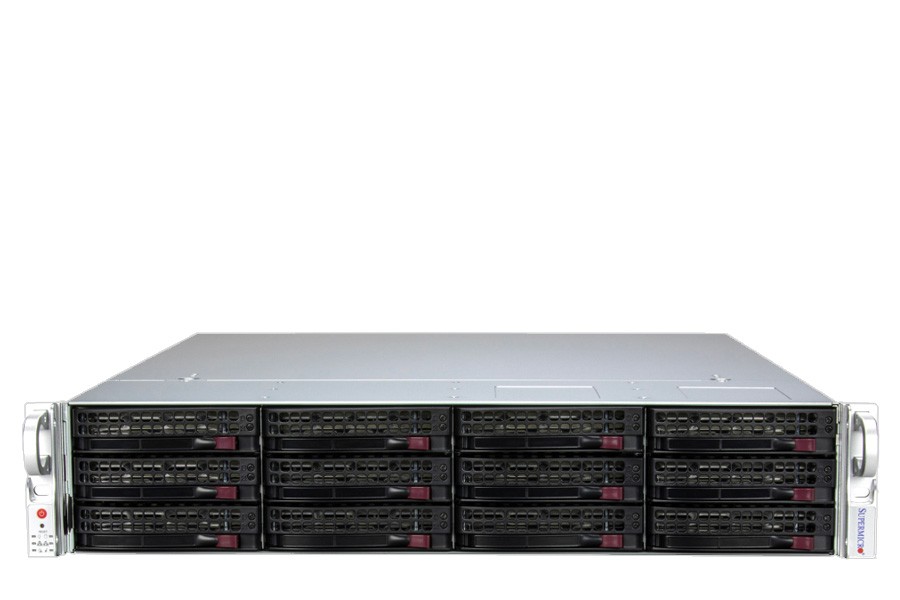

Front Panel
LED:
Device Activity
LAN 1 Activity
LAN 2 Activity
Power Failure LED
Power status
System information

Buttons:
Power On/Off
System Reset
Bios
BIOS Type:
AMI 32MB SPI Flash EEPROM

BIOS Features:
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Onboard Devices
Chipset:
System on Chip

Network Connectivity:
2 RJ45 10GBASE-T with Broadcom® BCM57416
HDD Drive Bays
Drive Bays Configuration:
Default: Total 12 bays
12 front hot-swap 3.5" SATA drive bays
Option A: Total 12 bays
6 front hot-swap 3.5"/2.5" PCIe 5.0 NVMe/SATA drive bays
6 front hot-swap 3.5"/2.5" SATA drive bays
Option B: Total 12 bays
12 front hot-swap 2.5" SAS drive bays
(NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2:
2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
Expansion Slots
PCI-Express (PCIe) Configuration:
Default
2 PCIe 5.0 x16 FHFL slots
2 PCIe 5.0 x8 LP slots

M.2:
2 M.2 PCIe 4.0 x4 NVMe slots (M-key)
Power Supply
2x 800W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL):
76 x 40 x 336 mm

Input:
800W: 100-240Vac / 50-60Hz
800W: 200-240Vdc / 50-60Hz

+12V:
Max: 66A / Min: 0A (100Vac-240Vac)
Max: 66A / Min: 0A (200Vdc-240Vdc)

5V SB:
Max: 4A / Min: 0A

Output Type:
Backplanes (gold finger)

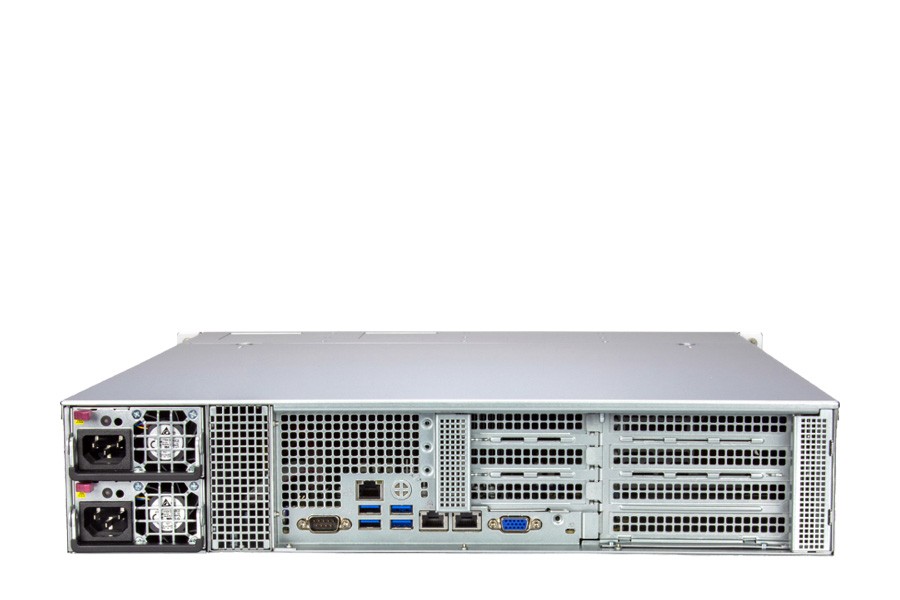

Input Output
LAN:
1 RJ45 1 GbE Dedicated BMC LAN port
2 RJ45 10 GBASE-T LAN ports

USB:
4 ports(rear)

Video:
1 VGA port

Serial:
1 COM port(Rear)

TPM:
1 TPM Onboard/port 80
Cooling
3 Heavy duty PWM 80x80x38mm Fan(s)
Operating Environment
Environmental Spec.:
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Details
Management
Software:
SuperCloud Composer
Supermicro Server Manager (SSM)
Supermicro Update Manager (SUM)
Supermicro SuperDoctor® 5 (SD5)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA) New!
Power configurations:
1U redundant 800W Titanium AC Power Supply

Security
Hardware:
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features:
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown

PC Health Monitoring
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
