ASG-2115S-NE332R
Please Inquire Configured Summary
ASG-2115S-NE332R

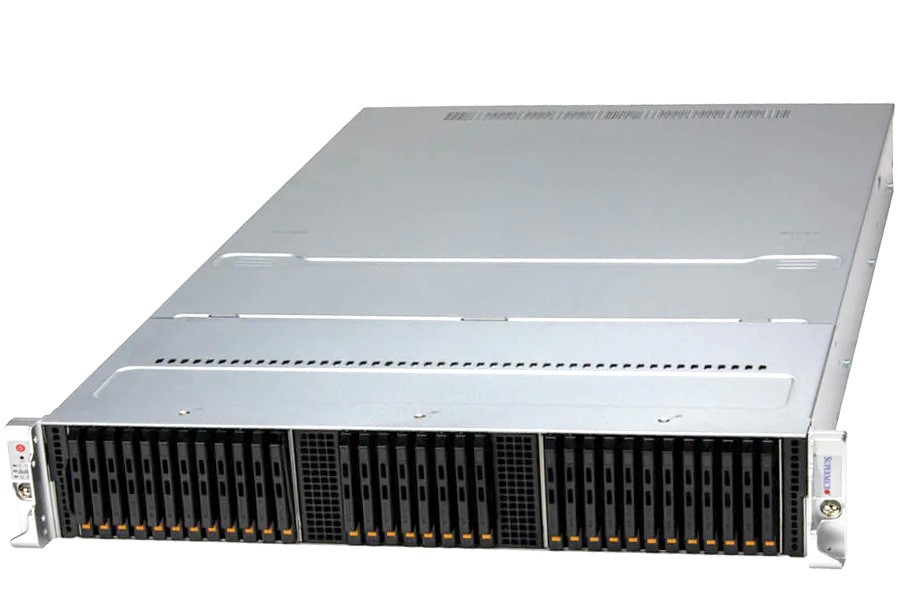

Supermicro 2U 32Bays Single AMD Processor Rackmount Server

  • Single Socket SP5 AMD EPYC™ 9004 Series processors. Up to 360W TDP.
  • Supports 24 DIMMs with 2DPC, up to 6TB memory capacity with 24 DIMMs of 256GB 3DS RDIMM/RDIMM DDR5 ECC memory
  • Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)

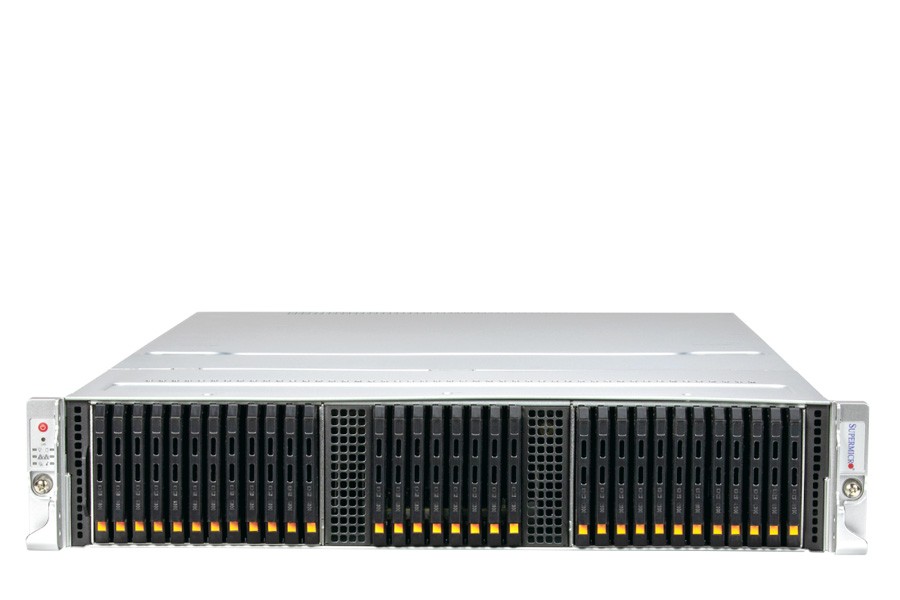

  • 32x hot-swap E3.S (7.5mm) NVMe drive bays
  • Redundant Titanium 2000W Power Supplies
  • Software-defined Storage, In-Memory Computing, Data Intensive HPC, Private & Hybrid Cloud, NVMe Over Fabrics Solution

Storage configuration notice:
32x E3.S NVMe drive

2x M.2 drive
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 1 CPUs, 4 DIMMs or 128G, 8 E3.S Drives and 1 boot drive M.2 or 1 SATA Boot Drive and 1 NIC Card).
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU ASG-2115S-NE332R

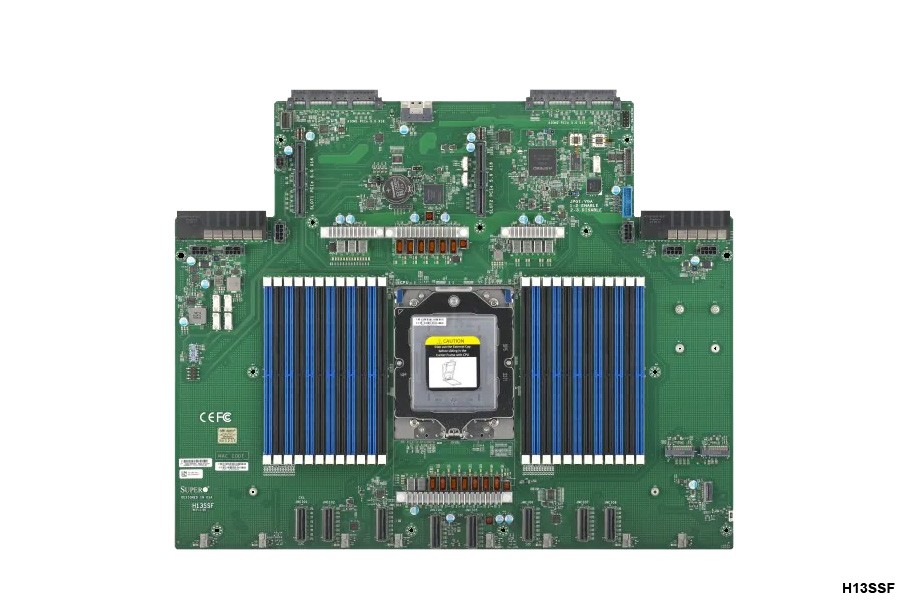

Processor
CPU:
Single Socket SP5
AMD EPYC™ 9004 Series Processors

Note:
Supports 200W - 360W TDP CPUs (Air Cooled)
Memory
Memory:
Slot Count: 24 DIMM slots
Max Memory (1DPC): Up to 4TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
Max Memory (2DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM

Memory Voltage:
1.1V
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.5" (89.8 mm)
Width:
17.2" (438.4 mm)
Depth:
30.8" (789.9 mm)
Bios
BIOS Type:
AMI 32MB SPI Flash EEPROM
Onboard Devices
Chipset:
AMD System on Chip

Network Connectivity:
Via AIOM
HDD Drive Bays
Drive Bays Configuration:
Default: Total 34 bay(s)
32 front hot-swap E3.S 1T NVMe drive bay(s)
2 rear hot-swap 2.5" SATA drive bay(s)

M.2:
2 M.2 NVMe slot(s) (M-key 2280/22110)
Expansion Slots
PCI-Express (PCIe) Configuration:
Default
2 PCIe 5.0 x16 FHHL slot(s)
2 PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

M.2:
2 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 2280/22110)
Power Supply
1x 2000W Redundant Titanium Level power supply
Dimension (WxHxL):
73.5 x 40 x 203 mm

+12V:
Max: 166A / Min: 0A (230Vac-240Vac)

12V SB:
Max: 3.5A

AC Input:
2000W: 230-240Vdc / 50-60Hz (for China only)

Output Type:
Backplanes (gold finger)

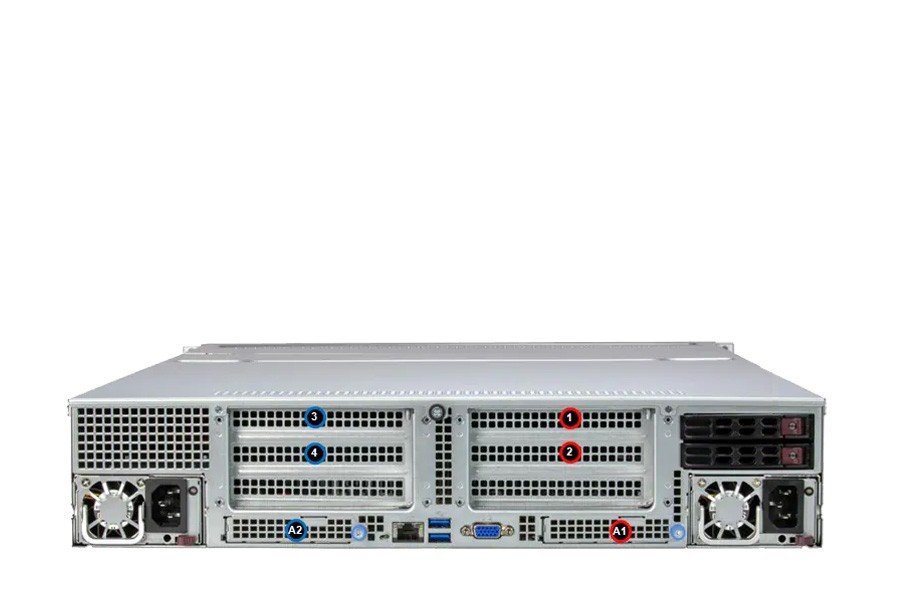

Input Output
LAN:
1 RJ45 1 GbE Dedicated IPMI LAN port(s)

USB:
2 USB 3.0 port(s) (rear)
2 USB 3.0 port(s) (front)

Video:
1 VGA port(s)

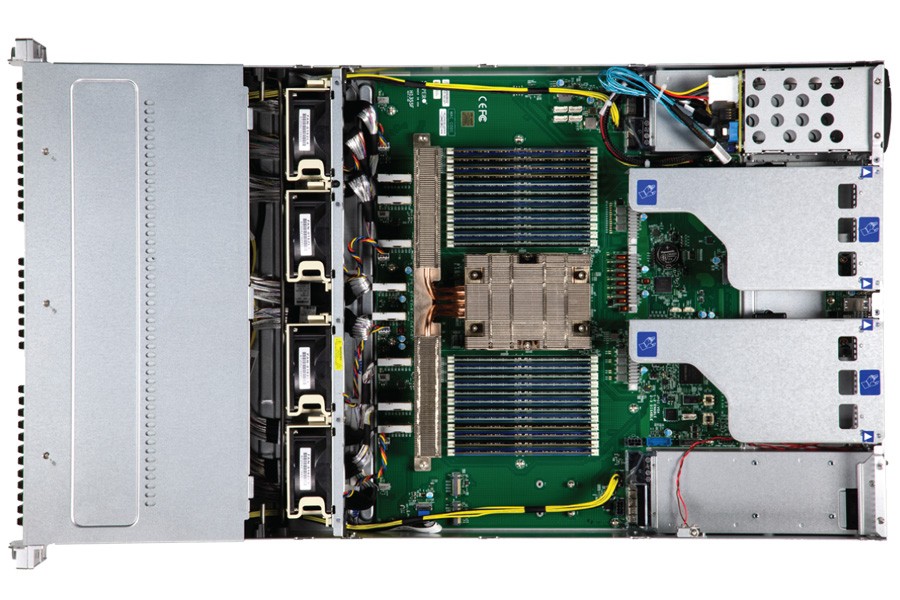

Cooling
4 Heavy Duty 8cm Fan(s)
Operating Environment
ROHS:
RoHS Compliant

Environmental Spec.:
Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
ASG-2115S-NE332R
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable 5th Gen Bronze Processor 3508U (2.10 Ghz 125W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4509Y (2.60 Ghz 125W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4510 (2.40 Ghz 150W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)
Added
Intel® Xeon® Scalable 5th Gen Silver Processor 4510T (2.00 Ghz 115W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4514Y (2.00 Ghz 150W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)
Intel® Xeon® Scalable 5th Gen Gold Processor 5515+ (3.20 Ghz 165W)
Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)
Intel® Xeon® Scalable 5th Gen Gold Processor 5512U (2.10 Ghz 185W)
Intel® Xeon® Scalable 5th Gen Silver Processor 4516Y+ (2.20 Ghz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6526Y (2.80 Ghz 195W)
Intel® Xeon® Scalable 5th Gen Gold Processor 5520+ (2.20 Ghz 205W)
Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6530 (2.10 Ghz 270W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6534 (3.90 Ghz 195W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6542Y (2.90 Ghz 250W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6538Y+ (2.10 Ghz 205W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6554S (2.20 Ghz 270W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6538N (2.10 Ghz 205W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6544Y (3.60 Ghz 270W)
Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6548Y+ (2.50 Ghz 250W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558U (2.00 Ghz 300W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6548N (2.80 Ghz 250W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558 (2.10 Ghz 330W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8562Y+ (2.80 Ghz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)
Intel® Xeon® Scalable 5th Gen Gold Processor 6558Q (3.20 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8568Y (2.30 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8558P (2.70 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8571N (2.40 Ghz 300W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8458P (2.70 GHz 350W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468V (2.40 GHz 330W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468 (2.10 GHz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8581V (2.00 Ghz 270W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8570 (2.10 Ghz 350W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470 (2.00 GHz 350W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8580 (2.00 Ghz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8592V (2.00 Ghz 330W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8460H (2.20 GHz 330W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8480+ (2.0 GHz 350W)
Intel® Xeon® Scalable 5th Gen Platinum Processor 8592+ (1.90 Ghz 350W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8468H (2.10 GHz 330W)
Intel® Xeon® Scalable 4th Gen Platinum Processor 8490H (1.90 GHz 350W)
MEMORY
Select Memory Capacity:
Samsung 16GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 32GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 64GB DDR5 5600MHz ECC RDIMM Memory (Recommend for Xeon 5th Gen CPU)
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Enterprise-Class HDD/SSD
Select Storage Capacity:
Samsung PM1743 NVME E3.S SSD 1.92TB
Added
Samsung PM1743 NVME E3.S 1T SSD 3.84TB
Samsung PM1743 NVME E3.S 1T SSD 7.68TB
Samsung PM1743 NVME E3.S SSD 15.36TB
NVMe M.2
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Added
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P4T0B/AM M.2 NVMe SSD 4TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
Samsung 980 EVO MZ-V8V250B/AM M.2 NVMe SSD 250GB
Samsung 980 EVO MZ-V8V500B/AM M.2 NVMe SSD 500GB
Samsung 980 EVO MZ-V8V1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 EVO MZ-V9E2T0B/AM M.2 NVMe SSD 2TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
(optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
RAID CONTROLLER CARD
*Please contact our sales rep for special requirements
Added
GRAID SupremeRAID SR-1010 card
NETWORK CARD
NETWORK ADAPTERNETWORK ADAPTERNETWORK ADAPTER
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Added
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB
NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB
NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
NVIDIA L40 48GB GDDR6 GPU Card
NVIDIA L40S 48GB GDDR6 GPU Card
NVIDIA A100 80GB HBM2e GPU Card
NVIDIA H100 80GB HBM2e GPU Card
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Linux Fedora Workstation Edition Linux 64-bit (No Media)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
3069
1
0.0000







About Superxpert
SuperXpert.com a member of Yang Ming International Corporation is located in city of La Puente, With a state-of-the-art R&D and manufacturing facility, the company has grown organically, providing cutting edge technological products backed up with tech-savvy engineers, four full-scale assembly lines, and a sophisticated testing lab. In addition we use the latest cutting edge technology to produce some of the server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at Superxpert, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
Super Micro Server & Computer
Supermicro® is the global leader in high-performance, high-efficiency server technology and innovation is a premier provider of end-to-end green computing solutions for Enterprise IT, Datacenter, Cloud Computing, HPC and Embedded Systems worldwide. Supermicro's advanced server Building Block Solutions® offers a wide varity of modular, interoperable components for building energy-efficient, application-optimized, computing solutions. This broad line of products includes servers, blades, GPU systems, workstations, motherboards, chassis, power supplies, storage technologies, networking solutions and SuperRack® cabinets/accessories. Architecture innovations include Twin Architecture, SuperServer®, SuperBlade®, MicroCloud, Super Storage Bridge Bay (SBB), Double-Sided Storage™, Universal I/O (UIO) and WIO expansion technology all of which deliver unrivaled performance and value.
Excellence in Customer Service
Today, SuperXpert.com continues to strive to help customers quickly implement solutions to IT challenges. SuperXpert.com provide a wide range of Intel and AMD rackmount servers with form factors from 1U through 9U and offers various innovative computing solutions for HPC, Data Center, Virtualization, Clustering, GPU, and Cloud Computing applications to help customers meet today demands of high computing capacity and competitiveness. All this to go along with our professional and knowledgeable staff always make sure our customers receives the best service possible.
