Supermicro 2U 24Bays Dual Processor Rackmount Server
- Dual AMD EPYC™ 7003/7002 Series Processors
- (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
- 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
- Expansion slots: 1 PCIe 4.0 x16 slot (FH, 9.5" L) Additional PCIe slots may available if using the 24 SAS Kits solution (Please contact us for more information)
- Integrated IPMI 2.0 + KVM with dedicated LAN Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
- Dual-port 10GBase-T and Dual-port 10G SFP+
- via Intel® X710-TM4
- 6.Drive Bays: 24 hot-swap 2.5" U.2 NVMe drive bays Up to 24 SATA/SAS drive support via optional SAS kit
- 7.1600W Redundant Power Supplies
- Titanium Level (96%)(Full redundancy based on configuration and application load)
- Virtualization, Cloud Computing, High-End Enterprise Server, Hyperconverged Storage
Storage configuration notice:
External:
24x 2.5" Hot-swap Drive Bays
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs & at least 24/32 cores per CPU is recommended). Minimum requirement is 2 CPUs, 4 DIMMs, 1 NVMe HDD drive.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | AS-2124US-TNRP |
| Processor | CPU:
Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) Socket SP3 Supports CPU TDP up to 280W Cores: Up to 64 Cores Chipset: System on Chip (SoC) Note: Certain CPUs with TDP higher than 225W may be supported only under specific conditions. Please contact Technical Support for additional information about specialized system optimization |
| Memory | Memory Capacity:
32 DIMM slots Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM 8-channel memory bus Memory Type: DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs DIMM Sizes: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB Memory Voltage: 1.2V Error Detection: Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| Chassis | 2U Rackmount Chassis
|
| Dimensions | Height:

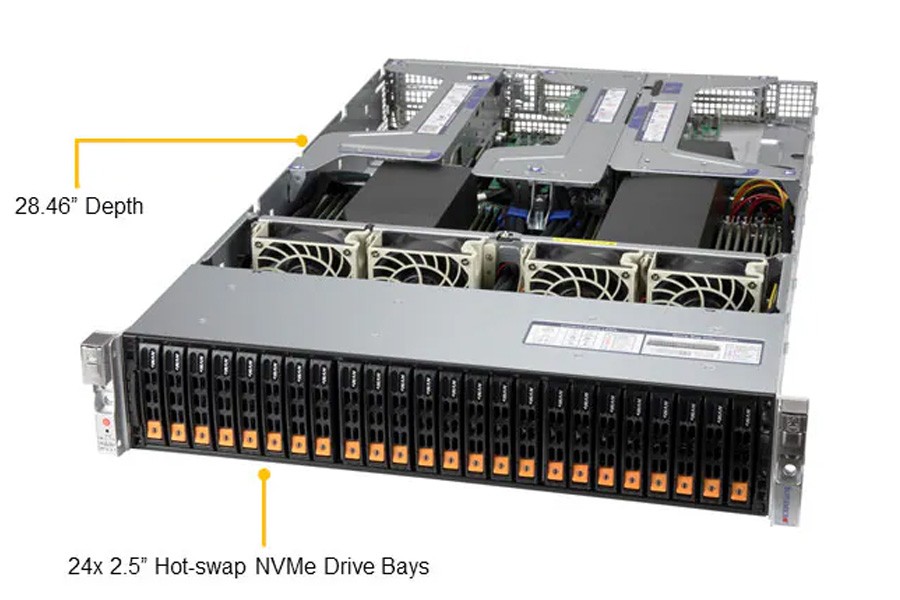

3.5" (89mm) Width: 17.2" (437mm) Depth: 28.46" (723mm) |
| Front Panel | Buttons:
Power On/Off button System Reset button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED / UID LED |
| Bios | BIOS Type:
AMI 128Mb SPI Flash EEPROM BIOS Features: Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1 |
| Onboard Devices | IPMI:
Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC Network Connectivity: Dual-port 10GBase-T and Dual-port 10G SFP+ via Intel® X710-TM4 VGA: ASPEED AST2500 BMC |

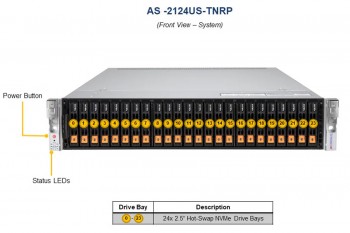

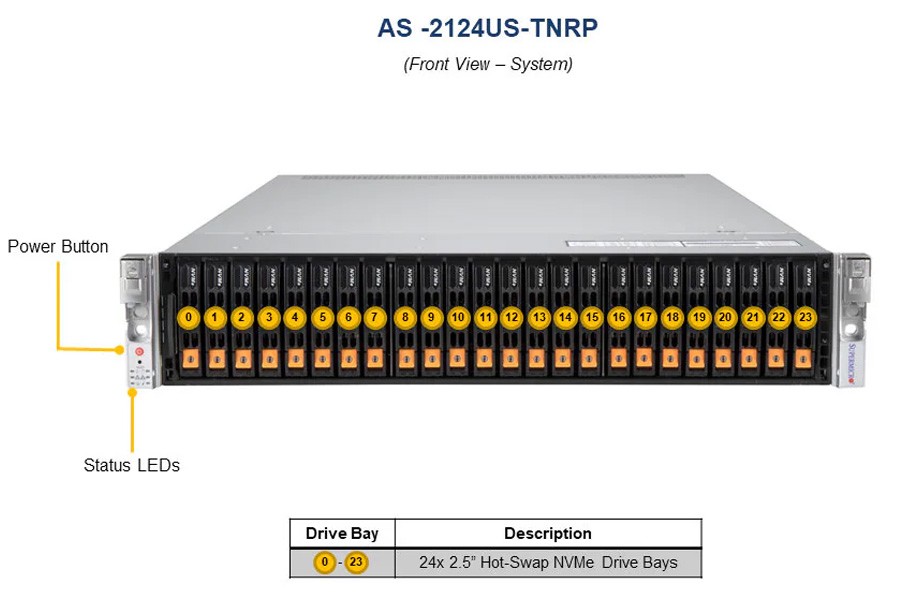

| HDD Drive Bays | 24 hot-swap 2.5" U.2 NVMe drive bays
Up to 24 SAS/SATA drives supported via optional SAS kit |

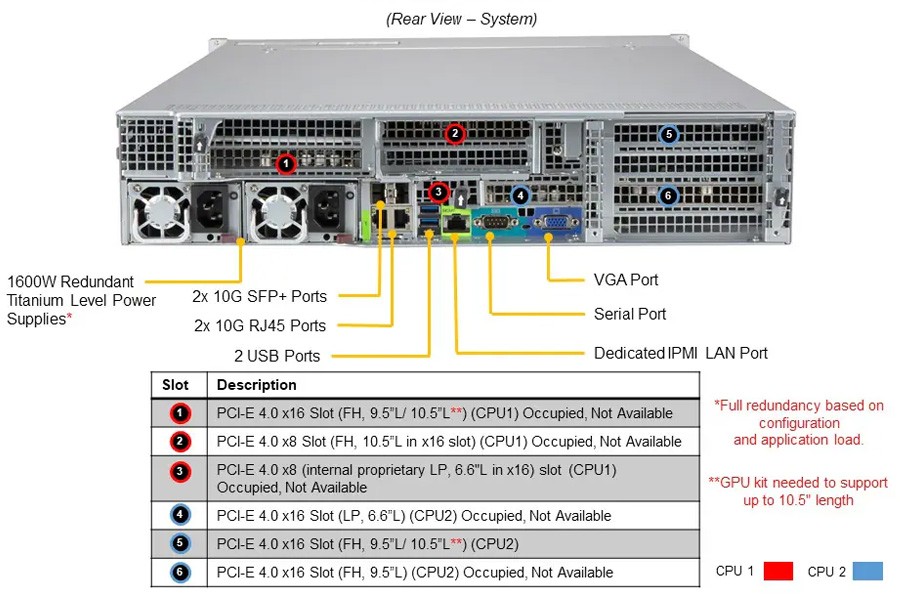

| Expansion Slots | 1 PCIe 4.0 x16 slot (FH, 9.5" L)
(Both CPUs need to be installed for full access to PCIe slots and onboard controllers.) |
| Power Supply | 1600W Redundant Power Supplies with PMBus
Total Output Power: 1600W/1000W Dimension(W x H x L): 73.5 x 40 x 203 mm Input: 100-127Vac / 13 - 9A / 50-60Hz 200-240Vac / 10 - 8A / 50-60Hz +12V: Max: 83.3A / Min: 0A (100-127Vac) Max: 133A / Min: 0A (200-240Vac) 12Vsb: Max: 2.1A / Min: 0A Output Type: 25 Pairs Gold Finger Connector Certification: Titanium Level |
| Input Output | NVMe:
24 U.2 NVMe support LAN: Dual 10GBase-T LAN ports Dual 10G SFP+ LAN ports 1 RJ45 Dedicated IPMI LAN port USB: 3 USB 3.0 ports (2 rear + 1 Type A) VGA: 2 VGA ports (1 rear, 1 onboard) Others: 1 COM port 2 SATA DOM power connectors TPM 2.0 header |

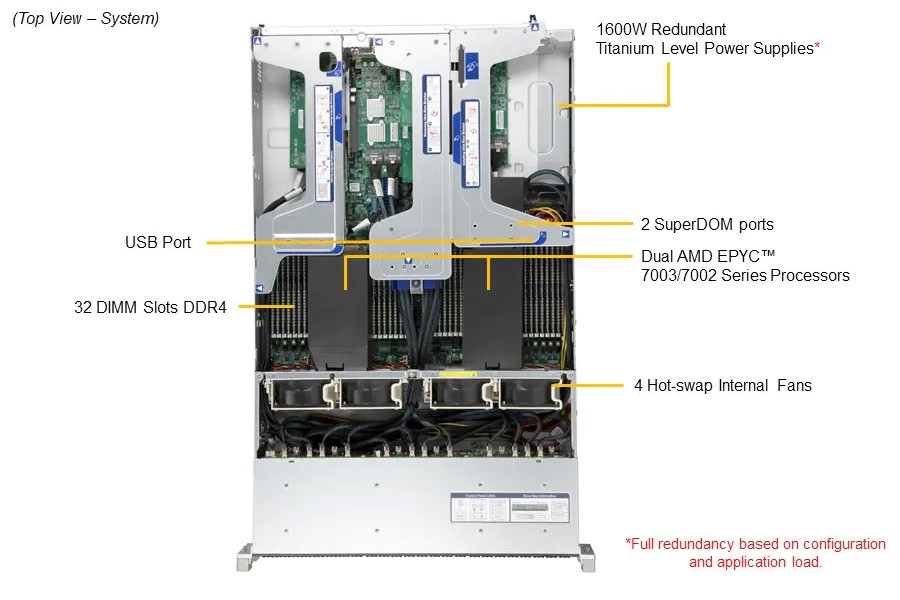

| Cooling | Fans:
4 heavy-duty PWM fans with optimal fan speed control Air Shroud: 1 Air Shroud |
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
AMD ROME EPYC™ 7252 Processor 3.1Ghz,120W)
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)
AMD EPYC 3rd Gen MILAN 7313P 16 Core 3.00GHz
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
MD EPYC 3rd Gen MILAN 7313 16 Core 3.00GHz
Added
AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)
AMD EPYC 3rd Gen MILAN 7443P 24 Core 2.85GHz
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
AMD EPYC 3rd Gen MILAN 7343 16 Core 3.20GHz
AMD EPYC 3rd Gen MILAN 7453 28 Core 2.75GHz
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
AMD EPYC 3rd Gen MILAN 7443 24 Core 2.85GHz
AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)
AMD EPYC 3rd Gen MILAN 72F3 8 Core 3.70GHz
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
AMD EPYC 3rd Gen MILAN 7543P 32 Core 2.80GHz
AMD EPYC 3rd Gen MILAN 7513 32 Core 2.60GHz
AMD EPYC 3rd Gen MILAN 74F3 24 Core 3.20GHz
AMD EPYC 3rd Gen MILAN 7413 24 Core 2.65GHz
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
AMD EPYC 3rd Gen MILAN 73F3 16 Core 3.50GHz
AMD EPYC 3rd Gen MILAN 7543 32 Core 2.80GHz
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
AMD EPYC 3rd Gen MILAN 75F3 32 Core 2.95GHz
AMD EPYC 3rd Gen MILAN 7643 48 Core 2.30GHz
AMD EPYC 3rd Gen MILAN 7713P 64 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7663 56 Core 2.00GHz
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
AMD ROME EPYC™ 7742 Processor (2.25Ghz,225W)
AMD EPYC 3rd Gen MILAN 7713 64 Core 2.00GHz
AMD EPYC 3rd Gen MILAN 7763 64 Core 2.45GHz
MEMORY
Select Memory Capacity:
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Added
Samsung 16GB DDR4 3200 ECC RDIMM Memory
Samsung 32GB DDR4 3200 ECC RDIMM Memory
Samsung 64GB DDR4 3200 ECC RDIMM Memory
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
Enterprise-Class HDD/SSD
Select Storage Capacity:
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB
Added
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB
Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB
Samsung SM883 2.5" SATA III SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 240GB
Samsung PM893 2.5" SATA 6Gb/s SSD 480GB
Samsung PM893 2.5" SATA 6Gb/s SSD 960GB
Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB
Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB
Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB
Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB
Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB
NETWORK CARD
NETWORK ADAPTERNETWORK ADAPTERNETWORK ADAPTER
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Linux Fedora Workstation Edition Linux 64-bit (No Media)
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
Debian Linux (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
