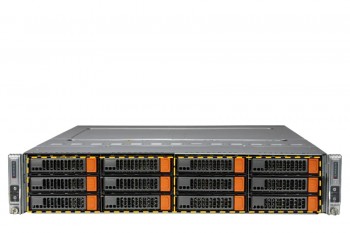

Supermicro 2U 2Nodes Dual Processor Rackmount Server

Supermicro 2U 2Nodes Dual Processor Rackmount Server

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Socket E (LGA 4677) support 4th Gen Intel® Xeon® Scalable processors
Intel® C741
Up to 16 DIMMs ECC DDR5 Slots
1 PCIe 5.0 x16 (LP) slot; 2 PCIe 5.0 x8 (LP) slot; Tool-less support Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard, Optional M.2 NVMe Boot Controller via SCC-A2NM2241G3-B1
Network connectivity via AIOM (OCP 3.0 compliant)
6 Hot-Swap 3.5” drive bays (2x PCIe 5.0 NVMe/SAS and 4x PCIe 4.0 NVMe/SAS), Built-in SAS3 Support via Broadcom 3808; IT Mode
4 cooling fans per 2U enclosure, 14.9K RPM; Shared Cooling Design, Liquid Cooling Support
2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
Hyperconverged Infrastructure, Scale-Out Object Storage, Back-up & Recovery

Storage configuration notice:
(per node)
External:
6x 3.5" Hot-swap Drive Bays
2x M.2
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node) Minimum 2 CPUs, 2 DIMMs, 1 NIC and 1 Drive per node.

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	SYS-621BT-DNC8R
Processor	(per Node) CPU: Dual Socket E (LGA 4677) 4th Gen Intel® Xeon® Scalable processors Intel Xeon CPU Max Series with high bandwidth memory (HBM) Cores: Up to 32C/64T; Up to 112.5MB Cache Note: Supports up to 350W TDP CPUs (Liquid Cooled) CPUs (Air Cooled) with TDP over 300W are only supported under specific conditions. Contact customer support for details. Supports up to 300W TDP CPUs (Air Cooled)
Memory	(per Node) Memory： Memory Capacity: 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 4800MHz ECC DDR5 RDIMM
Chassis	2U Rackmount Chassis
Dimensions	Height: 3.47" (88mm) Width: 17.68" (449mm) Depth: 30.5" (774mm)
Front Panel	Buttons: Power On/Off button UID button LEDs: HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Bios	BIOS Type: AMI 32MB Flash ROM
Onboard Devices	(per Node) SAS: SAS3 (12Gbps) via Broadcom® 3808 (IT mode) Chipset: Intel® C741 Network Connectivity: Via AIOM IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays	(per Node) Hot-swap: 6x 3.5" hot-swap NVMe/SAS drive bays (2x PCI-E 5.0 NVMe/SAS and 4x PCI-E 4.0 NVMe/SAS) M.2: 2 M.2 NVMe
Expansion Slots	(per Node) PCI-Express (PCIe): 2 PCIe 5.0 x8 LP slot(s) 1 PCIe 5.0 x16 LP slot(s)
Power Supply	2200W Redundant Power Supplies with PMBus Total Output Power: 2200W : 100 - 240 Vac 2090W : 230 - 240 Vdc for CCC only Dimension (W x H x L): 45 x 40 x 480 mm AC Input: 1200W: 100-127Vac / 50-60Hz 2090W: 180-220Vac (for UL/cUL only) 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2200W: 220-240Vac (for UL/cUL only) 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc (for CCC only) +12V: Max: 100A / Min: 0A (100-127Vac) Max: 150A / Min: 0A (200-220Vac) Max: 165A / Min: 0A (220-230Vac) Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only) Max: 174.17A / Min: 0A (230-240Vac) Max: 174.17A / Min: 0A (230-240Vdc, CCC only) Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only) 12V SB: Max: 2.1A / Min: 0A Certification: Titanium Level
Input Output	(per Node) LAN: 1 RJ45 Dedicated BMC LAN port USB: 2 USB 3.1 port(s) (2 rear) Video: 1 VGA port(s) Others: 2x M.2 for boot drive or caching M.2 form factor: NVMe double-sided 22x110mm Note: Enterprise-grade M.2 only for caching application
Cooling	Fans: 4x 14.9K RPM Heavy Duty 8cm Fan(s) Liquid Cooling: Direct to Chip (D2C) Cold Plate (optional)
Operating Environment	RoHS: RoHS Compliant Environmental Spec.: Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Details	Management Software: Supermicro Out of Band (OOB) License (Included per Node) SuperCloud Composer SSM Intel® Node Manager SPM KVM with dedicated LAN IPMI 2.0 SUM Watch Dog SuperDoctor® 5 Power Configurations: ACPI / APM Power Management

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU-1st Node

Intel® Xeon® Scalable 4th Gen Silver Processor 4410Y (2.00 GHz 155W)

Added

Intel® Xeon® Scalable 4th Gen Silver Processor 4410T (2.70 GHz 150W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5416S (2.00 GHz 150W)

Intel® Xeon® Scalable 4th Gen Silver Processor 4416+ (2.00 GHz 165W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5411N (1.90 GHz 165W)

Intel® Xeon® Scalable 4th Gen Gold Processor 5418N (1.80 GHz 165W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6430 (2.10 GHz 270W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6421N (1.80 GHz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6428N (1.80 GHz 185W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6438Y (2.00 GHz 205W)

Intel® Xeon® Scalable 4th Gen Gold Processor 6448H (2.40 GHz 250W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8452Y (2.00 GHz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8444H (2.90 GHz 270W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8450H (2.00 GHz 250W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8460Y+ (2.20 GHz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8462Y+ (2.80 GHz 300W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8454H (2.10 GHz 270W)

Intel® Xeon® Scalable 4th Gen Platinum Processor 8470N (1.70 GHz 300W)

MeMory-1st Node

CPU-2nd Node

*No Processor
