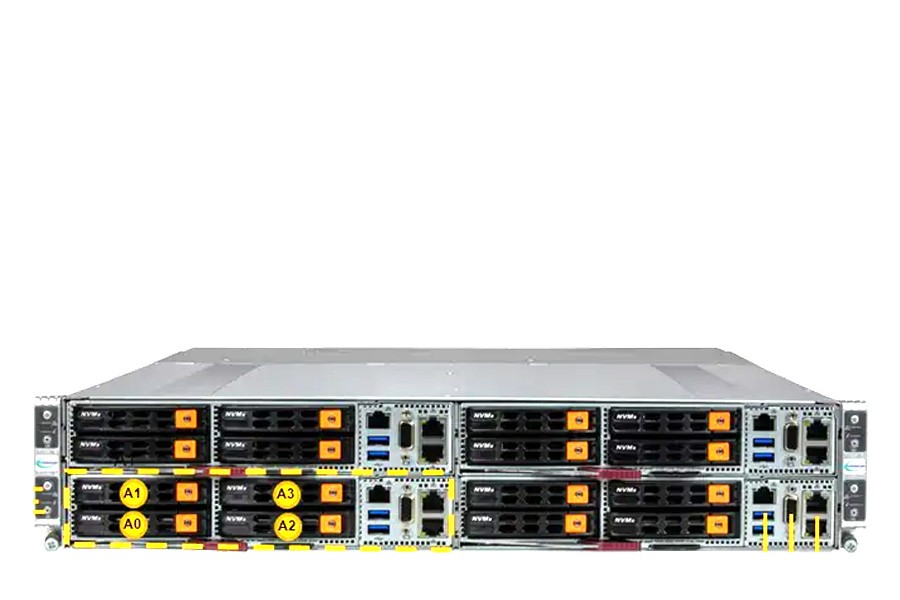

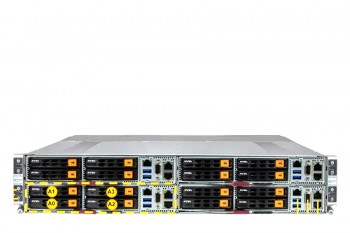

Supermicro 2U 4Nodes 16Bays Single AMD Processor Rackmount Server

Supermicro 2U 4Nodes 16Bays Single AMD Processor Rackmount Server

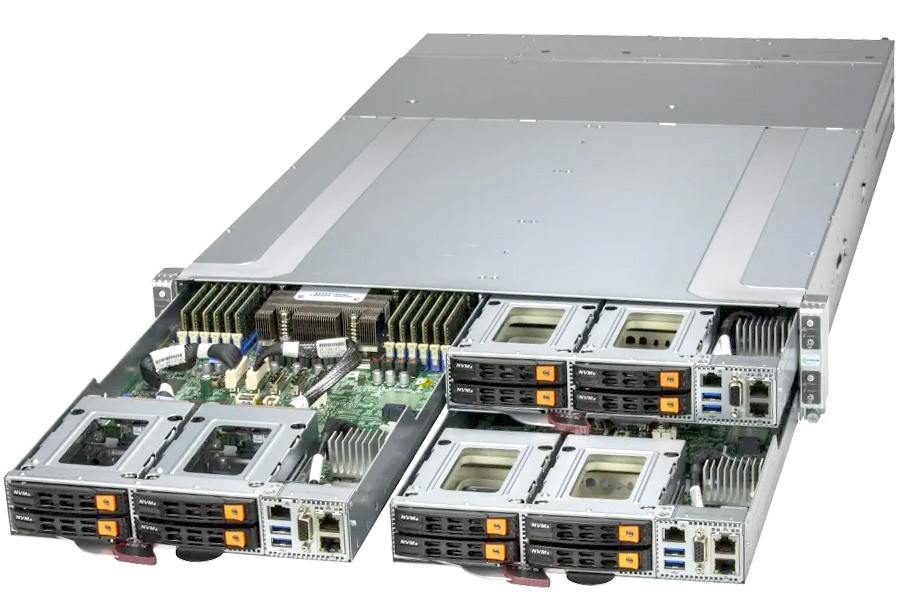

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Single-Socket, AMD EPYC™ 9004 Series Processors up to 360W TDP
12 DIMM Slots , up to 3TB DDR5 memory
Flexible bays for either Storage or AIOM / OCP 3.0 slots
Integrated GrandTwin I/O Module with BMC, 2x USB, VGA and 2x 10GbE or 2x 25GbE
Up to 4 Hot-swap 2.5" NVMe/SATA drives
HPC, Cloud Gaming, MEC (Multi-Access Edge Computing), Multi-Purpose CDN, High-availability Cache Cluster, Telco Edge Cloud, EDA (Electric Design Automation), Mission Critical Web Applications

Complete system only: to maintain quality and integrity, this product is sold only as a complete-assembled system (for optimal performance, 12 DIMMS are recommended per node). Minimum 1CPU, 1 DIMM and 1 storege device HDD/HDS/M.2, and 1 AIOM per node

Storage configuration notice:

(per node)
External:
4x 2.5" Hot-swap HDD Bays
M.2:
2x M.2

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

SKU	AS-2115GT-HNTF

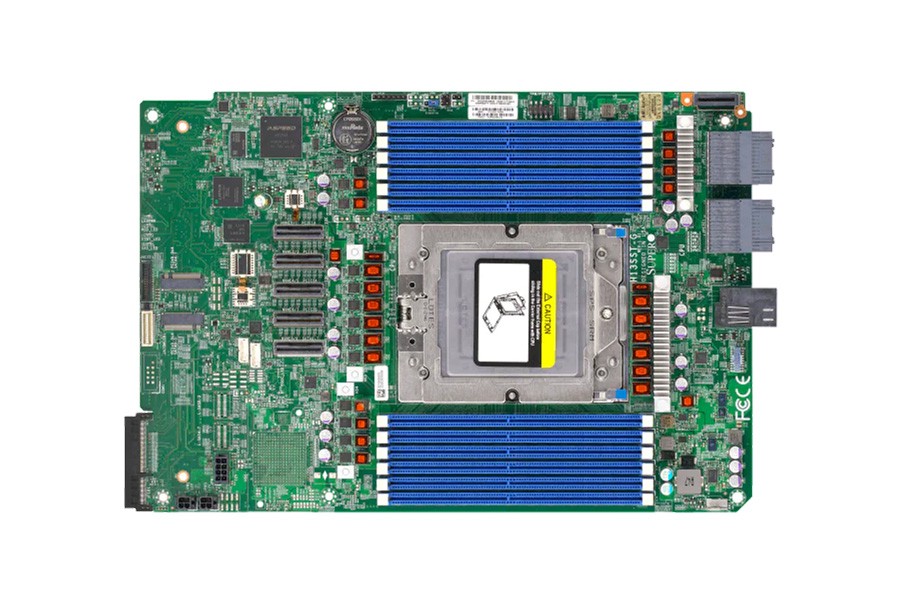

Processor	(per Node) CPU: Single Socket SP5 AMD EPYC™ 9004 Series Processor Support CPU TDP up to 360W Note: Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
Memory	(per Node) Memory: Memory Capacity: 12 DIMM slots Up to 3TB: 12x 256 GB DRAM Memory Type: 4800MHz ECC DDR5 RDIMM
Chassis	2U Rackmount Chassis
Dimensions	Height: 3.46" (88mm) Width: 17.67" (449mm) Depth: 28" (711.2mm)
Front Panel	Buttons: Power On/Off button UID button LEDs: HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Bios	BIOS Type: AMI 32MB Flash ROM
Onboard Devices	(per Node) Chipset: AMD SP5 Network Connectivity: Via IO Module IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays	Hot-swap: 4x 2.5" hot-swap NVMe/SATA drive bays (4x 2.5" NVMe hybrid) M.2: 2 M.2 NVMe OR 2 M.2 SATA3
Expansion Slots	(per Node) PCI-Express (PCIe): 1 PCIe 5.0 x16 LP slot(s)

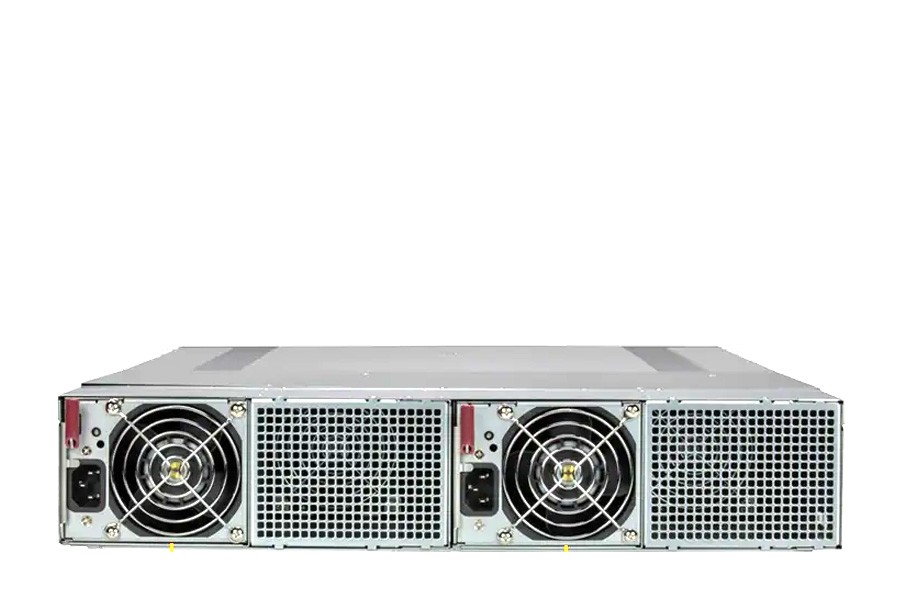

Power Supply	Redundant 2200w Titanium Level(96%)High-Efficiency Power Supplies with I2C & PMBus Dimension (W x H x L): 106 x 84 x 245 mm AC Input: 100-127Vdc (1200W for the Rest of the World) 200-220Vdc (1800W for the Rest of the World) 200-220Vdc (2090W for North America - UL & cUL) 220-230Vdc (1980W for the Rest of the World) 220-240Vdc (2200W for North America - UL & cUL) 230-240Vdc (2090W for the Rest of the World) Certification: Titanium Level
Input Output	(per Node) LAN: 1 RJ45 Dedicated BMC LAN port USB: 2 USB 3.0 port(s) (2 USB) Video: 1 VGA port(s)
Cooling	Air Shroud: 1 per node Air Shroud(s) Fans: 2x 17.6K RPM Heavy Duty 8cm Fan(s)
Operating Environment	RoHS: RoHS Compliant Environmental Spec.: Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)

+ CLICK TO ENLARGE

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.

CPU-1st Node

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

Added

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

MeMory-1st Node

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

CPU-2nd Node

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

Added

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

MeMory-2nd Node

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

CPU-3rd Node

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

Added

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

MeMory-3rd Node

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Added

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

CPU-4th Node

AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)

Added

AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)

AMD EPYC 4th Gen Processor 9354P (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)

AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)

AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)

AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)

AMD EPYC 4th Gen Processor 9454P (2.75GHz,290W)

AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)

AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)

AMD EPYC 4th Gen Processor 9554P (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)

AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)

AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)

AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)

AMD EPYC 4th Gen Processor 9654P (2.40GHz,360W)

AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)

MeMory-4th Node

Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)

Enterprise-Class HDD/SSD

Select Storage Capacity:

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 240GB

Added

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Micron 5400 PRO 2.5" SATA 6Gb/s SSD (7mm) 7.68TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 480GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 960GB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 1.92TB

Micron 5400 MAX 2.5" SATA 6Gb/s SSD (7mm) 3.84TB

Samsung SM883 2.5" SATA III SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 240GB

Samsung PM893 2.5" SATA 6Gb/s SSD 480GB

Samsung PM893 2.5" SATA 6Gb/s SSD 960GB

Samsung PM893 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM893 2.5" SATA 6Gb/s SSD 3.84TB

Samsung PM893 2.5" SATA 6Gb/s SSD 7.68TB

Samsung PM897 2.5" SATA 6Gb/s SSD 960GB

Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB

Samsung PM897 2.5" SATA 6Gb/s SSD 3.84TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 4TB

Samsung 870 QVO 2.5" SATA 6Gb/s SSD 8TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 250GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 500GB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 1TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 2TB

Samsung 870 EVO 2.5" SATA 6Gb/s SSD 4TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 960GB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 1.92TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 3.84TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 7.68TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 15.36TB

Samsung PM1643A 2.5" SAS 12Gb/s SSD 30.72TB

NVMe M.2

*No NVMe M.2 Drives

Added

Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB

Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB

Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB

Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB

Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB

Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB

Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB

Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB

Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB

Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB

Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB

Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB

Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 1TB

SAMSUNG PM9A3 M.2 Nvme SSD 960GB

SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB

SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB

WD Black SN850 M.2 G4 NVMe SSD 500GB

WD Black SN850 M.2 G4 NVMe SSD 1TB

WD Black SN850 M.2 G4 NVMe SSD 2TB

OPERATING SYSTEM

Select Operating System:

*Please contact our sales for more operating system options

Added

Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)

Debian Linux (No Media) (32-Bit/64-Bit)

Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)

Linux Fedora Workstation Edition Linux 64-bit (No Media)

CentOS Enterprise Linux (No Media) (32-Bit/64-bit)

Microsoft Windows Server 2022 Standard 64-bit-1User

WARRANTY

Select Warranty:

*1 Year Parts Replacement Warranty

Added

3 Year Parts Replacement Warranty - Server Value $500 to $2000

3 Year Parts Replacement Warranty - Server Value $2001 to $4000

3 Year Parts Replacement Warranty - Server Value $4001 to $7000

3 Year Parts Replacement Warranty - Server Value $7001 to $10000

3 Year Parts Replacement Warranty - Server Value Over $10000
