AS-2025HS-TNR
$7,520.00 Configured Summary
AS-2025HS-TNR
Supermicro 2U 12Bays Dual AMD Rackmount Server

  • 4th Generation AMD EPYC™ 9004 Series Processors
  • ASPEED AST2600
  • 24 x DIMM slots, DDR5 -4800 memory support up to 6 TB
  • 1 AIOM/OCP NIC 3.0 Slot
  • Configuration Options for up to
  • 4 PCIe 5.0 x16 Slots OR
  • 8 PCIe 5.0 x8 Slots or
  • 3 PCIe 5.0 x16 Slots + 2 PCIe 5.0 x8 Slots or
  • 2 PCIe 5.0 x16 Slots + 4 PCIe 5.0 x8 Slots or
  • 1 PCIe 5.0 x16 Slots + 6 PCIe 5.0 x8 Slots

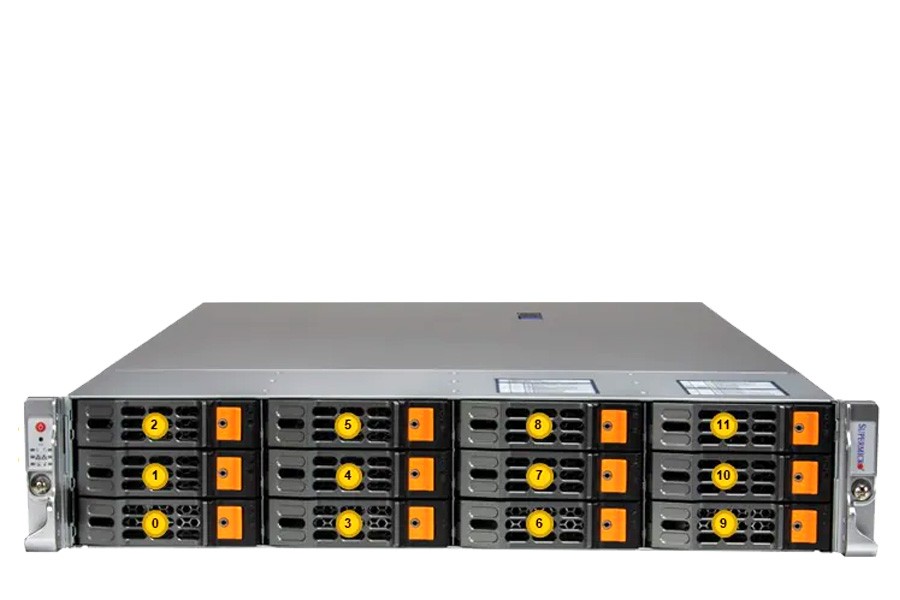

  • 12 Hot-swap 3.5” NVMe/SAS/SATA (Optional parts required for NVMe/SAS/SATA configurations)
  • 2 On-board PCIe 3.0 x4 M.2 NVMe 80mm/110mm (Boot)
  • Virtualization, Software-defined Storage, AI Inference and Machine Learning, Cloud Computing, Enterprise Server
Complete system only: to maintain quality and integrity, this product is sold only as a complete-assembled system (with minimum 1CPU, 2DIMMs and 1 storege device HDD/HDS/M.2, and 1NIC)

Storage configuration notice:
External:
12x 3.5" Hot-swap HDD Bays
M.2:
2x M.2

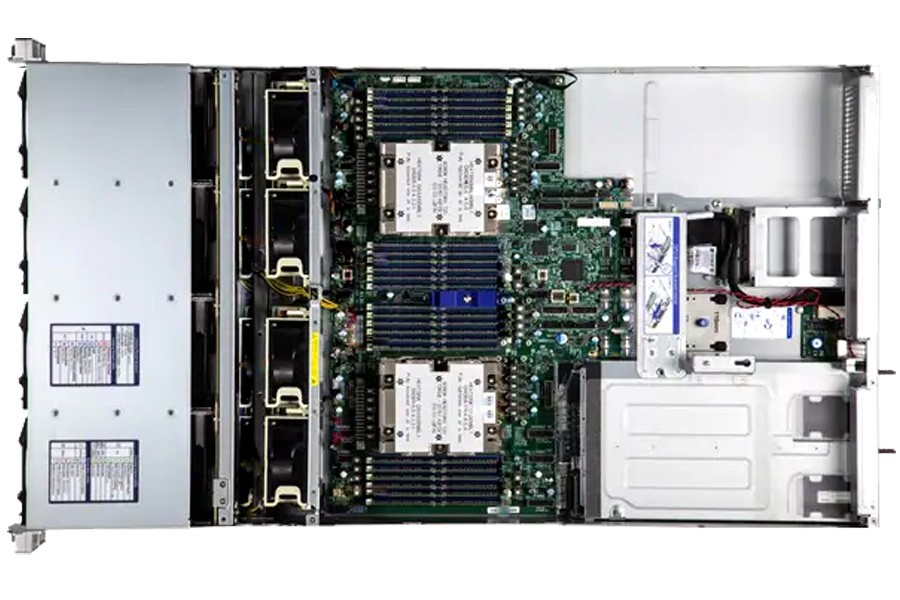

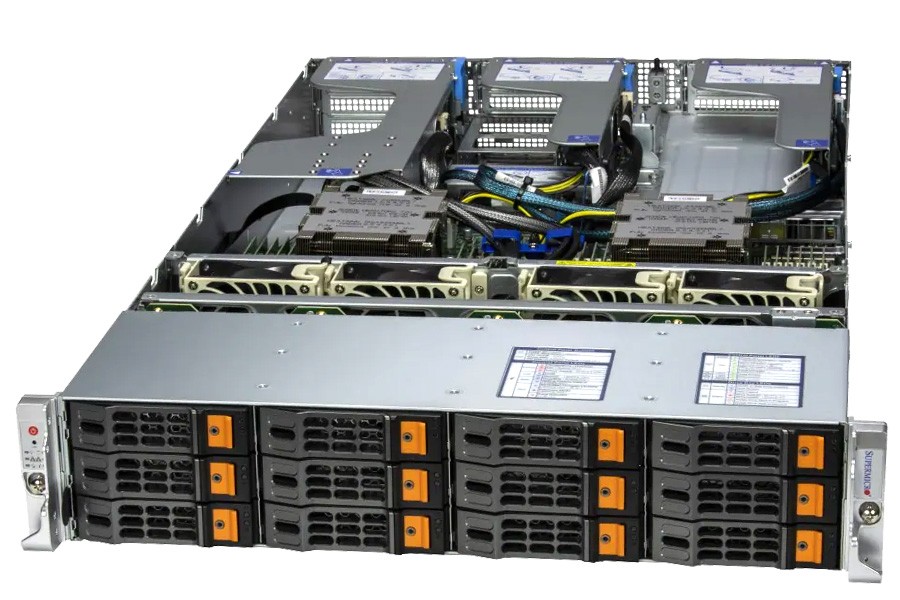

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU AS-2025HS-TNR
Processor
CPU:
Dual Socket SP5
4th Generation AMD EPYC™ 9004 Series Processor
Support CPU TDP up to 360W
Cores:
Up to 192C/384T
Note:
Certain CPUs with high TDP may be supported only under specific conditions. Please contact our Technical Support for additional information about specialized system optimization
Memory
Memory:
Memory Capacity: 24 DIMM slots
Up to 6TB: 3DS ECC Registered RDIMM, DDR5-4800MHz
Memory Type: 4800MHz ECC DDR5 RDIMM Up to 512GB of memory
Note:
For optimal performance AMD recommends full memory population
Memory Voltage:
1.1 V
Error Detection:
Corrects single-bit errors Detects double-bit errors (using ECC memory)
Chassis
2U Rackmount Chassis
Dimensions
Height:
3.5" (88.9mm)
Width:
17.2" (437mm)
Depth:
31.6" (803mm)
Front Panel
Buttons:
Power On/Off
UID button
LEDs:
HDD activity
LAN1 activity
Power status
System information
Bios
BIOS Type:
AMI 256MB SPI Flash
BIOS Features:
ACPI 6.4
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
Onboard Devices
Chipset:
System on Chip
Network Connectivity:
Via AIOM
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
Hot-swap:
12x 3.5" hot-swap NVMe/SATA/SAS drive bays
M.2:
2x NVMe (PCIe 3.0 x4, Boot drive only)
M-Key, 2280/22110

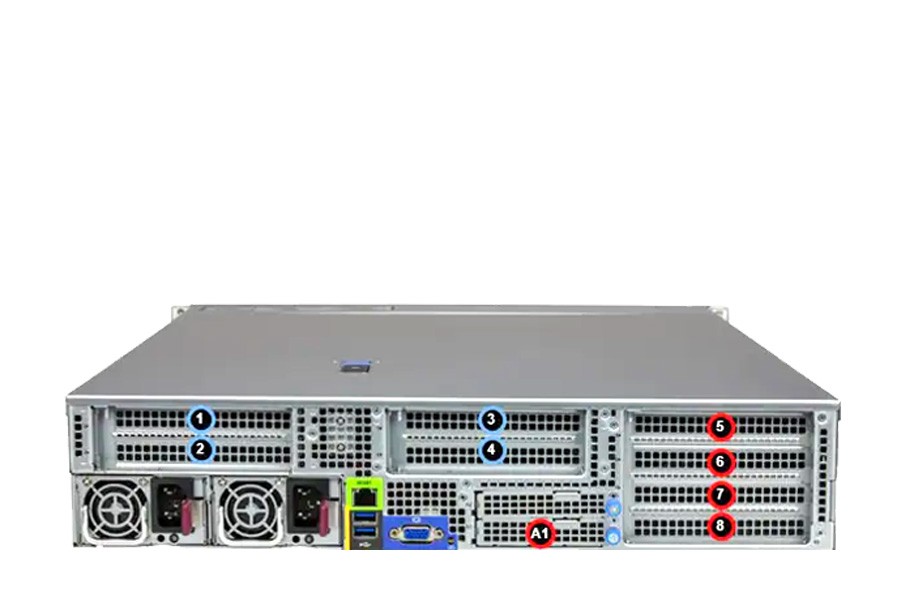

Expansion Slots
4x (Optional) PCIe 5.0 x16 or x8 FH, 10.5"L slot(s)
4x (Optional) PCIe 5.0 x8 FH, 10.5"L slot(s)
Power Supply
1600W 1U redundant power supply
Dimension (W x H x L):
73.5 x 40 x 265 mm
AC Input:
1000W: 100-127Vac / 12A-9A / 50-60Hz
1600W: 200-240Vac / 9A-7.5A / 50-60Hz
+12V:
Max: 83.3A / Min: 0A (100Vac-127Vac)
Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB:
Max: 3.5A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
Titanium Level
Input Output
LAN:
1 Dedicated IPMI LAN port
USB:
2 USB 3.0 port(s) (2 rear)
Video:
1 VGA port(s)
Cooling
Fans:
4x 8cm heavy duty fans with optimal fan speed control
Air Shroud:
2 Air Shroud(s)
Operating Environment
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Note:
Operating Temperature based on configurations
AS-2025HS-TNRAS-2025HS-TNRAS-2025HS-TNRAS-2025HS-TNR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
AMD EPYC 4th Gen Processor 9124 (3.00GHz,200W)
Added
AMD EPYC 4th Gen Processor 9224 (2.50GHz,200W)
+ $1,596.00
AMD EPYC 4th Gen Processor 9254 (2.50GHz,200W)
+ $2,420.00
AMD EPYC 4th Gen Processor 9274F (3.40GHz,320W)
+ $4,064.00
AMD EPYC 4th Gen Processor 9334 (2.70GHz,210W)
+ $4,300.00
AMD EPYC 4th Gen Processor 9354 (3.25GHz,280W)
+ $4,938.00
AMD EPYC 4th Gen Processor 9174F (4.10GHz,320W)
+ $5,812.00
AMD EPYC 4th Gen Processor 9374F (3.85GHz,320W)
+ $8,022.00
AMD EPYC 4th Gen Processor 9454 (3.75GHz,290W)
+ $9,080.00
AMD EPYC 4th Gen Processor 9474F (3.60GHz,360W)
+ $12,290.00
AMD EPYC 4th Gen Processor 9534 (2.45GHz,280W)
+ $12,350.00
AMD EPYC 4th Gen Processor 9554 (3.10GHz,360W)
+ $12,836.00
AMD EPYC 4th Gen Processor 9634 (2.25GHz,290W)
+ $14,916.00
AMD EPYC 4th Gen Processor 9654 (2.40GHz,360W)
+ $17,486.00
MEMORY
Select Memory Capacity:
Micron 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
- $136.00
Samsung 16GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
Added
Micron 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $248.00
Samsung 32GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $396.00
Micron 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $1,120.00
Samsung 64GB DDR5 4800MHz ECC RDIMM Memory (Recommend for Xeon&EPYC 4th Gen CPU)
+ $1,380.00
Enterprise-Class HDD/SSD
Select Storage Capacity:
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $70.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $170.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $57.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $92.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $132.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $152.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $219.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $247.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $300.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $361.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $435.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $216.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $222.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $241.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $335.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $18.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $59.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $135.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $290.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $360.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $281.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $351.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $260.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $286.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $780.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $221.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $325.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $68.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $242.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $126.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $128.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 1TB
+ $231.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $291.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $426.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $686.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
RAID CONTROLLER CARD
*Please contact our sales rep for special requirements
Added
LSI 9560-16I TRI MODE NVMe RAID CONTROLLER
+ $1,109.00
Areca ARC-1886-16i 16 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,226.00
Areca ARC-1886-4x12i 4+12 Ports SAS/SATA/NVMe RAID Controller Card
+ $1,421.00
GRAID SupremeRAID SR-1010 card
+ $4,680.00
NETWORK CARD
NETWORK ADAPTERNETWORK ADAPTERNETWORK ADAPTER
*No Network Adapter
Added
Broadcom NetXtreme 1G PCIe 2.0 x1 Ethernet Card (2x RJ45)
+ $96.00
Broadcom NetXtreme 1G PCIe 2.0 x4 Ethernet Card (4x RJ45)
+ $123.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x RJ45)
+ $363.00
Broadcom NetXtreme 10G PCIe 3.0 x8 Ethernet Card (2x SFP+)
+ $289.00
Broadcom NetXtreme 25G PCIe 3.0 x8 Ethernet Card (2x SFP28)
+ $271.00
Broadcom NetXtreme 25G PCIe 4.0 x16 Ethernet Card (4x SFP28)
+ $689.00
Broadcom NetXtreme 100G PCIe 4.0 x16 EthernetCard (2x QSFP56)
+ $1,279.00
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X520-DA2 (2x SFP+)
+ $377.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
GPU/Coprocessor
*No GPU
Added
NVIDIA RTX 4000 ADA GDDR6 Video Card 20GB
+ $1,690.00
NVIDIA RTX 4500 ADA GDDR6 Video Card 24GB
+ $3,010.00
NVIDIA RTX 5000 ADA GDDR6 Video Card 32GB
+ $5,304.00
NVIDIA RTX 6000 ADA GDDR6 Video Card 48GB
+ $9,193.00
NVIDIA L40 48GB GDDR6 GPU Card
+ $9,698.00
NVIDIA L40S 48GB GDDR6 GPU Card
+ $9,698.00
NVIDIA A100 80GB HBM2e GPU Card
+ $13,982.00
NVIDIA H100 80GB HBM2e GPU Card
+ $32,156.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2860
1
3999.0000
Servers
Cloud
Solutions
Workstations
Components



Copyright©  Yang Ming International Corp. All Rights Reserved.
595 Yorbita Road, La Puente, CA 91744 | Tel:(800)526-8650 | Tel:(626)956-0100 | Fax:(626)956-0098







About Superxpert
SuperXpert.com a member of Yang Ming International Corporation is located in city of La Puente, With a state-of-the-art R&D and manufacturing facility, the company has grown organically, providing cutting edge technological products backed up with tech-savvy engineers, four full-scale assembly lines, and a sophisticated testing lab. In addition we use the latest cutting edge technology to produce some of the server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at Superxpert, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
Super Micro Server & Computer
Supermicro® is the global leader in high-performance, high-efficiency server technology and innovation is a premier provider of end-to-end green computing solutions for Enterprise IT, Datacenter, Cloud Computing, HPC and Embedded Systems worldwide. Supermicro's advanced server Building Block Solutions® offers a wide varity of modular, interoperable components for building energy-efficient, application-optimized, computing solutions. This broad line of products includes servers, blades, GPU systems, workstations, motherboards, chassis, power supplies, storage technologies, networking solutions and SuperRack® cabinets/accessories. Architecture innovations include Twin Architecture, SuperServer®, SuperBlade®, MicroCloud, Super Storage Bridge Bay (SBB), Double-Sided Storage™, Universal I/O (UIO) and WIO expansion technology all of which deliver unrivaled performance and value.
Excellence in Customer Service
Today, SuperXpert.com continues to strive to help customers quickly implement solutions to IT challenges. SuperXpert.com provide a wide range of Intel and AMD rackmount servers with form factors from 1U through 9U and offers various innovative computing solutions for HPC, Data Center, Virtualization, Clustering, GPU, and Cloud Computing applications to help customers meet today demands of high computing capacity and competitiveness. All this to go along with our professional and knowledgeable staff always make sure our customers receives the best service possible.
