2013S-C0R
Please Inquire Configured Summary
2013S-C0R

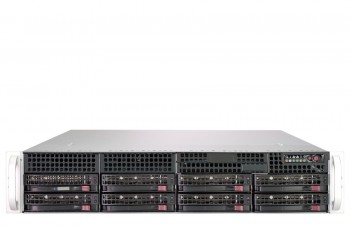

SuperMicro 2U 8Bays Single Processor AMD Rackmount Server

  • Single AMD EPYC™ 7000-Series Processor
  • Up to 1TB Registered ECC DDR4, 2666MHz SDRAM in 8 DIMMs
  • Expansion slots:3 PCI-E 3.0 x16 (low profile);3 PCI-E 3.0 x8 (low profile), M.2 Interface: PCI-E 3.0 x4 (NVMe based), M.2 Form Factor: 2280, 22110, M.2 Key: Onboard M-key, Number of M.2: Single
  • Integrated IPMI 2.0 + KVM with, dedicated LAN, Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management
  • 2x 1GbE LAN ports via Intel® I210
  • 8 hot-swap 3.5" SAS3/SATA3 Drive Bays (on-board Broadcom 3008 IR mode), 1 M.2 NVMe SSD slot Supported
  • 740W Redundant Platinum Level, high-efficiency Power Supplies (Full redundancy based on configuration and application load)
  • Cloud and Virtualization needs, Connectivity/Storage Computer Nodes, Database Processing & Storage, High End Enterprise Server, Hosting & Application delivery

Storage configuration notice:
Hot-swap:
8x Hot-swap 3.5" SATA/SAS drive bays
M.2:
1x M.2 Drive
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU AS-2013S-C0R
Processor
CPU:
Single AMD EPYC™ 7000-series Processor (up to 200W)
Socket SP3
Cores:
Up to 32 Cores
Chipset:
System on Chip (SoC)
Memory
Memory Capacity:
8 DIMM slots
Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM
8-channel memory bus
Memory Type:
DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
2U Rackmount  Chassis
Dimensions
Height:
3.5" (89mm)
Width:
17.2" (437mm)
Depth:
25.5" (647mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Bios
BIOS Type:
AMI 128Mb SPI Flash EEPROM
BIOS Features:
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Onboard Devices
SATA/SAS:
SATA3 (6 Gbps)
Broadcom 3008 SAS3 (12 Gbps) controller
IR mode; RAID 0, 1, 10
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers:
Intel® I210 Controller
VGA:
ASPEED AST2500 BMC
HDD Drive Bays
8 hot-swap 3.5" SAS3/SATA3 Drive Bays
Expansion Slots
PCI Express:
3 PCI-E 3.0 x16 (low profile)
3 PCI-E 3.0 x8 (low profile)
M.2:
Interface: PCI-E 3.0 x4 (NVMe based)
Form Factor: 2280, 22110
Key: Onboard M-key
Number of M.2: Single
Power Supply
740W Redundant high-efficiency power supply with PMBus
AC Input:

100-240 V, 50-60 Hz, 9-3.5 Amp
DC Output:
  4 Amp @ +5V standby
  61.7 Amp @ +12V
Certification:
Platinum Level Certified
Input Output
SATA/SAS:
8 SATA3 (6 Gbps) /
8 SAS3 ports via Broadcom 3008
LAN:
2x 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port
USB:
3 USB 3.0 ports
2 USB 2.0 ports
VGA:
1 VGA port
Others:
1 COM port (rear)
2 SATA DOM power connector
TPM 1.2 header
Cooling
3 heavy-duty PWM fans with optimal fan speed control
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
PC Health Monitoring
CPU:

Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator
FAN:
Fan status tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I²C Temperature Sensing Logic
LED:
CPU / System Overheat LED
Other Features:
Chassis Intrusion Detection
Chassis Intrusion Header
2013S-C0R2013S-C0R2013S-C0R2013S-C0R
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
AMD ROME EPYC™ 7252 Processor 3.1Ghz,120W)
AMD EPYC™ 7251 Processor (2.1Ghz,120W)
Added
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
AMD EPYC™ 7281 Processor (2.1Ghz,155/170W)
AMD EPYC™ 7351P Processor (2.4Ghz,155/170W)
AMD ROME EPYC™ 7302P Processor (3.0Ghz,155W)
AMD EPYC™ 7301 Processor (2.2Ghz,155/170W)
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
AMD EPYC™ 7401P Processor (2.0Ghz,155/170W)
AMD EPYC™ 7351 Processor (2.4Ghz,155/170W)
AMD ROME EPYC™ 7402P Processor (2.8Ghz,180W)
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
AMD EPYC™ 7401 Processor (2.0Ghz,155/170W)
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
AMD EPYC™ 7551P Processor (2.0Ghz,180W)
AMD ROME EPYC™ 7502P Processor (2.5Ghz,180W)
AMD EPYC™ 7451 Processor (2.3Ghz,180W)
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
AMD EPYC™ 7551 Processor (2.0Ghz,180W)
AMD EPYC™ 7501 Processor (2.0Ghz,155/170W)
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
AMD EPYC™ 7601 Processor (2.2Ghz,180W)
AMD ROME EPYC™ 7702P Processor (2.0Ghz,200W)
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
AMD ROME EPYC™ 7742 Processor (2.25Ghz,225W)
MEMORY
Select Memory Capacity:
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 8GB DDR4 3200 ECC RDIMM Memory
Samsung 16GB DDR4 2933 ECC RDIMM Memory
Samsung 16GB DDR4 3200 ECC RDIMM Memory
Samsung 32GB DDR4 2933 ECC RDIMM Memory
Samsung 32GB DDR4 3200 ECC RDIMM Memory
Samsung 64GB DDR4 2933 ECC RDIMM Memory
Samsung 64GB DDR4 3200 ECC RDIMM Memory
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
Enterprise-Class HDD/SSD
Select Storage Capacity:
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 1TB
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
WD Black SN850 M.2 G4 NVMe SSD 500GB
WD Black SN850 M.2 G4 NVMe SSD 1TB
WD Black SN850 M.2 G4 NVMe SSD 2TB
NETWORK CARD
NETWORK ADAPTERNETWORK ADAPTERNETWORK ADAPTER
*No Network Adapter
Added
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
Linux Fedora Workstation Edition Linux 64-bit (No Media)
Microsoft Windows Server 2022 Standard 64-bit-1User
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
