1019D-FRN5TP
$2,658.00 Configured Summary
1019D-FRN5TP
Supermicro 1U 2Bays Single Intel® Xeon®  D-2146NT CPU SuperServer

  • Intel® Xeon® D-2146NT Processor, 8-Core, 16 Threads, 2.3 GHz, 80W
  • Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2133Mz; in 4 DIMM slots
  • 4 PCI-E 3.0 x8 slots for optional AIOM
  • 2x 2.5" drive bays (one drive space shares with M.2), 2 EDSFF
  • 2 M.2 M-Key: 2280/22110 (space share with one 2.5" drive bay), 1 M.2 E-Key: 2230, 1 M.2 B-Key: 3042
  • 2x 10GbE (shared with IPMI), 2x 10G SFP+, 1 Ethernet Management port
  • 2 USB 3.0, 1 VGA, 1 COM via RJ45 or Micro USB
  • 400W Redundant Platinum Level Power Supplies
  • Centralized/Cloud Radio Access Network (C-RAN), Universal Customer Premise Equipment (uCPE), Software Defined WAN (SD-WAN), Network Function Virtualization (NFV)

Storage configuration notice:
Internal:
2x 2.5" drive bays

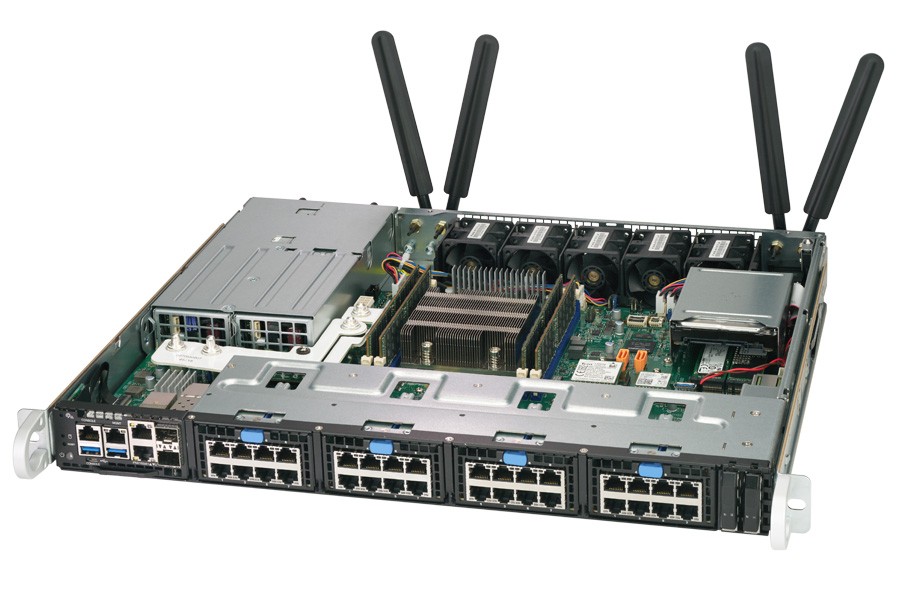

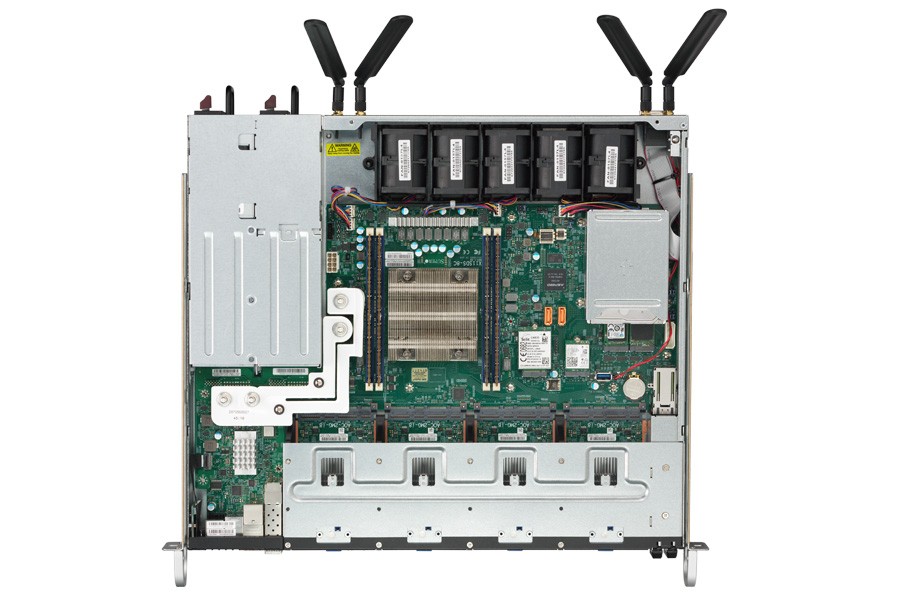

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-1019D-FRN5TP
Processor
CPU:
Intel® Xeon® processor D-2146NT,
CPU TDP support 80W
Cores / Cache:
8 Cores, 16 Threads
Memory
Memory Capacity:
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC RDIMM
4 DIMM slots
Memory Type:
2666/2400/2133MHz ECC DDR4 L/RDIMM
Operating speed up to 2133MHz
DIMM Sizes:
128GB, 64GB, 32GB, 16GB
Memory Voltage:
1.2 V
Chassis
1U rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
15" (381mm)

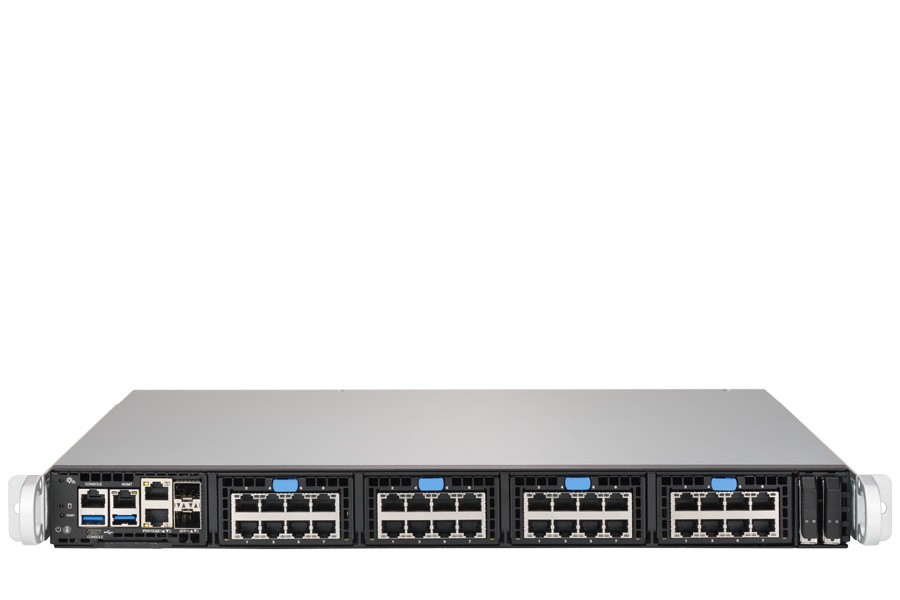

Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Bios
BIOS Type:
128Mb SPI Flash with AMI BIOS
Onboard Devices
Chipset:
System on Chip (SoC)
SATA:
SATA3 (6Gbps) ports via SoC controller
Network Controllers:
Dual 10G SFP+ via SoC
Dual 10GBase-T (share with IPMI)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video:
VGA via BMC
HDD Drive Bays
Hot-swap:
2x 2.5" drive bays (one drive space shares with M.2)
Others:
2 EDSFF
Expansion Slots
PCI-Express:

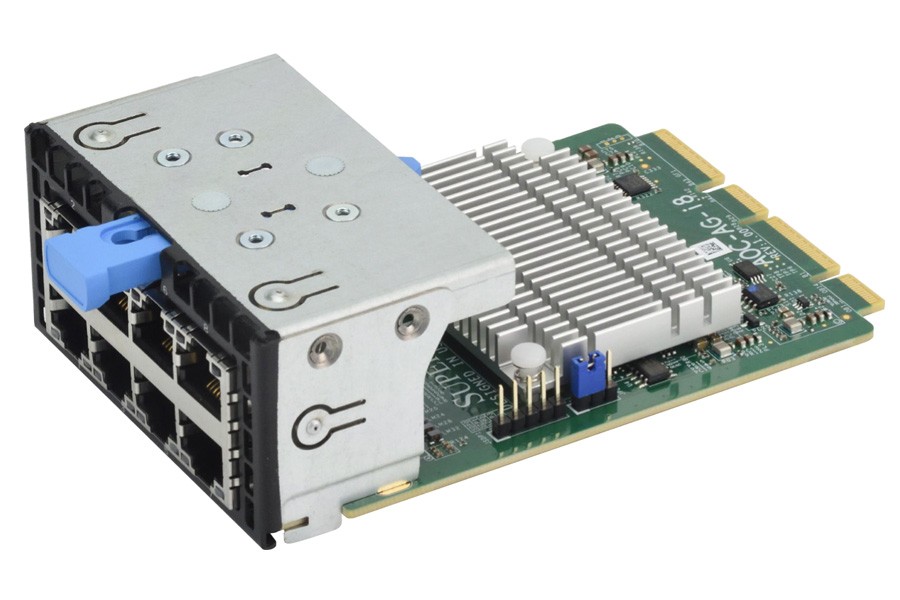

4 PCI-E 3.0 x8 slots for AIOM (AIOM is sold separately, it is not included in this standard/barebone system)
M.2:
2 M.2 M-Key 2280/22110 (space share with one 2.5" drive bay)
1 M.2 E-Key 2230
1 M.2 B-Key 3042

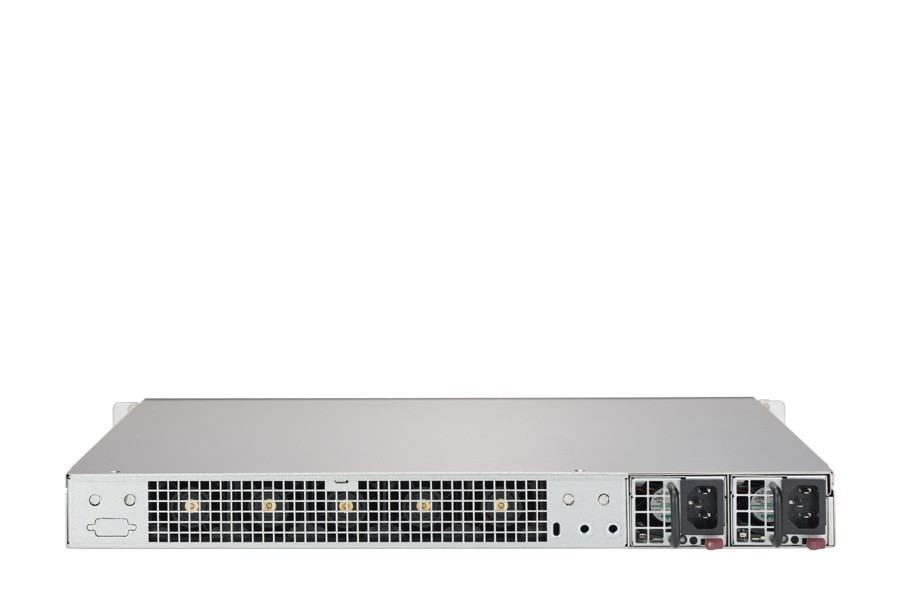

Power Supply
400W 1U Redundant Power Supplies with PMbus
Total Output Power:
400W
Dimension (W x H x L):
54.5 x 40 x 220 mm
Input:
100 - 240Vac / 6.0 - 3.0A / 50-60Hz
200 - 240Vdc / 3.4 - 3.2A (CCC Only)
+12V:
Max: 33A / Min: 0.5A
+5V sb:
Max: 3A / Min: 0A
Output Type:
Gold Finger Connector Mating with Molex 45984-4343
Certification:
Platinum Level Certified
Input Output
SATA:
2 SATA3 (6Gbps) ports
LAN:
2 RJ45 10GbE LAN ports (shared with IPMI)
2 10G SFP+ LAN ports
1 Ethernet Management port
USB:
2 USB 3.0 ports (front)
Video:
1 VGA port
Serial Port / Header:
1 COM via RJ45 or Micro USB
Cooling
5x 40x40x56 mm 13K-11K RPM Counter-rotating Fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   0°C to 45°C (32°F to 113°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Software:
Intel® Node Manager
IPMI 2.0
NMI
SUM
Watch Dog
SuperDoctor® 5
1019D-FRN5TP1019D-FRN5TP1019D-FRN5TP1019D-FRN5TP1019D-FRN5TP
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
