1029P-N32R
$7,513.00 Configured Summary
1029P-N32R

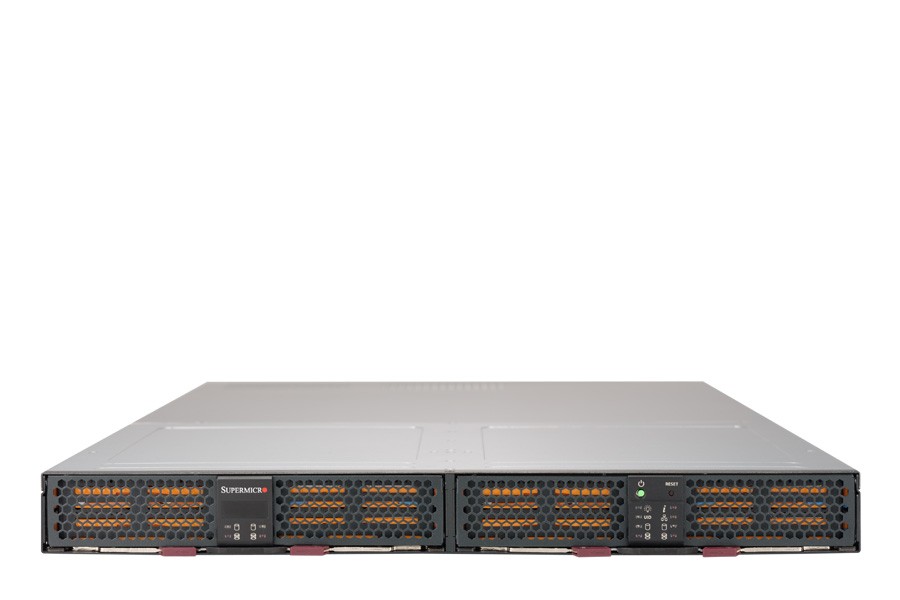

Supermicro 1U 2x Drawer 32x 2.5" NVMe SSDs Dual Scalable CPU High End Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM, Supports Intel® Optane™ DCPMM
  • 2 PCI-E 3.0 x16 Low-profile slots
  • Dual Drawer/Tray with a total of 32 NVMe 2.5" SSDs
  • 2x 10GBase-T LAN ports
  • Built in Intel QAT for Crypto/Compression
  • 8x 40x56mm PWM fans
  • 1600W Redundant Power Supplies Platinum Level
  • High Throughput Ingest, High Density Hot Storage, HPC / Data Analytics, Media/Video Streaming, Content Delivery Network (CDN), Big Data Top of Rack Storage

Storage configuration notice:
Hot-swap:
Dual Drawer/Tray with a total of 32 NVMe 2.5" SSDs
M.2:
2x M.2 Drive
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs and 4 NVMe).
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-1029P-N32R
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake),
3 UPI up to 10.4GT/s
Support CPU TDP up to 140W
Cores:
Up to 22 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
24 DIMM slots
Up to 6TB 3DS ECC DDR4-2933MHz RDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.26" (438mm)
Depth:
35.95" (913mm)
Front Panel
Buttons:
Power On/Off button
UID button
LEDs:
Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Bios
BIOS Type:
AMI 32Mb SPI Flash ROM
Onboard Devices
Chipset:
Intel® C627 chipset
Network Connectivity:
Intel® X550 Dual Port 10GBase-T
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
Dual Drawer/Tray with a total of 32 NVMe 2.5" SSDs
Expansion Slots
PCI-Express:
2 PCI-E 3.0 x16 Low-profile slots
M.2:
M.2 Interface: 2 PCI-E 3.0 x2, RAID 0, 1
M.2 Form Factor: 2260/2280/22110
M.2 Key: M-Key
Power Supply
1000 / 1600W 1U Redundant Power Supply
Total Output Power:

1000W / 1600W
Dimension (W x H x L):
73.5 x 40 x 185 mm
Input:
100 -- 127Vac / 13.8A / 47-63Hz
200 -- 240Vac / 9.6A / 47-63Hz
200 -- 240Vdc / 8.5A (CCC Only)
+12V:
Max: 83A / Min: 0A (1000W)
Max: 132A / Min: 0A (1600W)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
Gold Finger
Certification:
Platinum Level Certified
Input Output
LAN:
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB:
2 USB 3.0 ports (rear)
Video:
1 VGA port
Serial Header
1 COM port (header)
Cooling
8x 40x56mm PWM fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 30°C (50°F ~ 86°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Software:
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor® 5
Watch Dog
Power Configurations:
ACPI / APM Power Management
1029P-N32R1029P-N32R1029P-N32R1029P-N32R
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $238.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $674.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $1,450.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,828.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $2,142.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $2,166.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $2,406.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $3,150.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $3,774.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $5,790.00
MEMORY
Select Memory Capacity:
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $12.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $124.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $136.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $336.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $348.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $844.00
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $924.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $980.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $2,860.00
NVMe M.2
*No NVMe M.2 Drives
Added
Micron 7400 Pro NVMe M.2 (22x80) SSD 480GB
+ $150.00
Micron 7400 Pro NVMe M.2 (22x80) SSD 960GB
+ $198.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 1.92TB
+ $373.00
Micron 7400 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $700.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 400GB
+ $178.00
Micron 7400 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 480GB
+ $162.00
Micron 7450 Pro NVMe M.2 (22x80) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 960GB
+ $189.00
Micron 7450 Pro NVMe M.2 (22x110) SSD 3.84TB
+ $681.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 400GB
+ $189.00
Micron 7450 MAX NVMe M.2 (22x80) SSD 800GB
+ $207.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 250GB
+ $61.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $81.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $108.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $208.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $112.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $119.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $215.00
Samsung 990 PRO MZ-V9P1T0B/AM M.2 NVMe SSD 1TB
+ $139.00
Samsung 990 PRO MZ-V9P2T0B/AM M.2 NVMe SSD 1TB
+ $215.00
SAMSUNG PM9A3 M.2 Nvme SSD 960GB
+ $155.00
SAMSUNG PM9A3 M.2 Nvme SSD 1.92TB
+ $242.00
SAMSUNG PM9A3 M.2 Nvme SSD 3.84TB
+ $468.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $158.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $235.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $639.00
NVMe U.2/U.3
Micron 7400 PRO NVMe U.3 (7mm) SSD 960GB
Added
Micron 7400 PRO NVMe U.3 (7mm) SSD 1.92TB
+ $772.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 3.84TB
+ $2,208.00
Micron 7400 PRO NVMe U.3 (7mm) SSD 7.68TB
+ $4,672.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 800GB
+ $132.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 1.6TB
+ $1,020.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 3.2TB
+ $2,672.00
Micron 7400 MAX NVMe U.3 (7mm) SSD 6.4TB
+ $5,232.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
- $40.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 1.92TB
+ $604.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 3.84TB
+ $2,124.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 7.68TB
+ $4,304.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 15.36TB
+ $9,364.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 800GB
+ $80.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 1.6TB
+ $812.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 3.2TB
+ $2,552.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 6.4TB
+ $5,040.00
Micron 7450 MAX NVMe U.3 (15mm) SSD 12.8TB
+ $10,824.00
Samsung PM9A3 2.5" U.2 NVMe SSD 960GB
- $252.00
Samsung PM9A3 2.5" U.2 NVMe SSD 1.92TB
+ $96.00
Samsung PM9A3 2.5" U.2 NVMe SSD 3.84TB
+ $1,000.00
Samsung PM9A3 2.5" U.2 NVMe SSD 7.68TB
+ $2,508.00
Samsung PM9A3 2.5" U.2 NVMe SSD 15TB
+ $5,744.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
