F629P3-RC0B
$6,428.00 Configured Summary
F629P3-RC0B

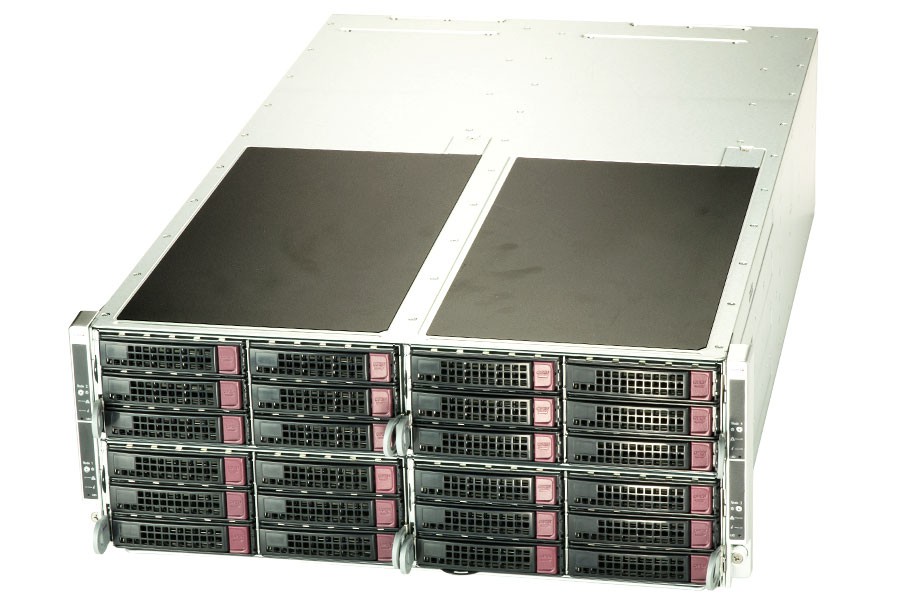

Supermicro 4u 4Nodes 32Bays Dual 2nd Gen Scalable Processor Rackmount Server

4 Hot-plug System Nodes in 4U Each node supports:
  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • Expansion slots: 1 PCI-E 3.0 x16 (LP) 1 PCI-E 3.0 x16 (for SIOM )
  • SIOM Network card, 1 dedicated IPMI LAN port
  • 1 VGA, 2 USB 3.0 ports
  • 8 Hot-swap 3.5" SAS3/SATA3 or 6 Hot-swap 3.5" SAS3/SATA3 + 2 optional NVMe U.2 M.2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280, 22110 M.2 Key: M-Key
  • SAS3 via Broadcom 3008
  • 2x 8cm 14k RPM middle fans
  • 1200W Redundant Power Supplies Titanium Level (96% Efficiency)
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-F629P3-RC0B
Processor
(per node)
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W with IVR
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
(per node)
Memory Capacity:
12 DIMM slots
Up to 3TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
4U Rackmount Chassis
Dimensions
Width:
17.63" (448mm)
Height:
6.96" (177mm)
Depth:
29" (737mm)
Front Panel
Buttons:
Power On/Off button
UID button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
Information LED (UID, Fan failure, Overheat)
Bios
BIOS Type:
128Mb SPI Flash EEPROM with AMI BIOS
Onboard Devices
Chipset:
Intel® C621 chipset
SAS:
SAS3 (12Gbps) via Broadcom 3008
Network Controllers:
Flexible networking via SIOM
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
(per node)
Hot-swap:

8 Hot-swap 3.5" SAS3/SATA3 or 6 Hot-swap 3.5" SAS3/SATA3 + 2 optional NVMe U.2
M.2:
M.2 Support
Expansion Slots
(per node)
PCI-Express
1x PCI-E 3.0 x16 (Low-profile)
1x PCI-E 3.0 x16 (SIOM)
Power Supply
(76mm Width)
1200W Redundant Power Supplies with PMBus

Total Output Power:
1000W/1200W
Dimension (W x H x L):
76 x 40 x 336 mm
Input:
100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A / 50-60Hz
+12V:
Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
+5Vsb:
Max: 4A / Min: 0A
Output Type:
19 Pairs Gold Finger Connector
Certification:
UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Input Output
(per node)
SAS:

8x SAS3 (12Gbps) ports
NVMe:
2x NVMe U.2 option
LAN:
SIOM flexible Network card
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
VGA:
1x VGA port
Cooling
(per node)
Fans:
2x 8cm 14 RPM middle fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
SuperDoctor® 5
Watch Dog
Power Configurations
ACPI Power Management

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
F629P3-RC0BF629P3-RC0BF629P3-RC0BF629P3-RC0BF629P3-RC0BF629P3-RC0B
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU-1st Node
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
Added
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $108.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $228.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $294.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $324.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $492.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $540.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $612.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $881.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $888.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,038.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,050.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,086.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,122.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,128.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,182.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,398.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,500.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,542.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,656.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,698.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,740.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $1,842.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $1,872.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $1,920.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $1,980.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,046.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,118.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,238.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,310.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,502.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,508.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,562.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,682.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $2,826.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $2,856.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,862.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,030.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,060.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,198.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,204.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,228.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,246.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,372.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,438.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,516.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,606.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,726.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $3,858.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,034.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,196.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,604.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,426.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,618.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,614.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,058.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,394.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,528.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,424.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $12,894.00
MeMory-1st Node
8GB DDR4 2666 ECC RDIMM Memory
Added
8GB DDR4 2933 ECC RDIMM Memory
+ $24.00
16GB DDR4 2933 ECC RDIMM Memory
+ $28.00
16GB DDR4 2666 ECC Registered Memory
+ $268.00
32GB DDR4 2933 ECC RDIMM Memory
+ $364.00
32GB DDR4 2666 ECC Registered Memory
+ $568.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $748.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,640.00
CPU-2nd Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $258.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $366.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $486.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $552.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $582.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $750.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $798.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $870.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,146.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,344.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,380.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,386.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,440.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,758.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,956.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,998.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $2,100.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $2,130.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $2,178.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,304.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,376.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,496.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,568.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,766.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,820.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,940.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $3,084.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $3,114.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,288.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,318.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,456.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,462.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,486.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,504.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,630.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,696.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,774.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,984.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $4,116.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,292.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,454.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $6,120.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,684.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,876.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,316.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,652.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,786.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,682.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $13,152.00
MeMory-2nd Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $356.00
8GB DDR4 2933 ECC RDIMM Memory
+ $380.00
16GB DDR4 2933 ECC RDIMM Memory
+ $384.00
16GB DDR4 2666 ECC Registered Memory
+ $624.00
32GB DDR4 2933 ECC RDIMM Memory
+ $720.00
32GB DDR4 2666 ECC Registered Memory
+ $924.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $1,104.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,996.00
CPU-3rd Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $258.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $366.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $486.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $552.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $582.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $750.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $798.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $870.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,146.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,344.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,380.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,386.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,440.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,758.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,956.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,998.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $2,100.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $2,130.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $2,178.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,304.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,376.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,496.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,568.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,766.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,820.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,940.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $3,084.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $3,114.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,288.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,318.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,456.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,462.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,486.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,504.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,630.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,696.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,774.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,984.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $4,116.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,292.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,454.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $6,120.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,684.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,876.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,316.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,652.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,786.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,682.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $13,152.00
MeMory-3rd Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $356.00
8GB DDR4 2933 ECC RDIMM Memory
+ $380.00
16GB DDR4 2933 ECC RDIMM Memory
+ $384.00
16GB DDR4 2666 ECC Registered Memory
+ $624.00
32GB DDR4 2933 ECC RDIMM Memory
+ $720.00
32GB DDR4 2666 ECC Registered Memory
+ $924.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $1,104.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,996.00
CPU-4th Node
*No Processor
Added
Intel® Xeon® Scalable Bronze Processor 3104 (1.70 Ghz 85W)
+ $258.00
Intel® Xeon® Scalable Bronze Processor 3106 (1.70 Ghz 85W)
+ $366.00
Intel® Xeon® Scalable Silver Processor 4108 (1.80 Ghz 85W)
+ $486.00
Intel® Xeon® Scalable Silver Processor 4112 (2.60 Ghz 85W)
+ $552.00
Intel® Xeon® Scalable Silver Processor 4110 (2.10 Ghz 85W)
+ $582.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
+ $750.00
Intel® Xeon® Scalable Silver Processor 4114 (2.20 Ghz 85W)
+ $798.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
+ $870.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $1,139.00
Intel® Xeon® Scalable Silver Processor 4116 (2.10 Ghz 85W)
+ $1,146.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,296.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,308.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
+ $1,344.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
+ $1,380.00
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $1,386.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $1,440.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,656.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,758.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,800.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $1,914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $1,956.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $1,998.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $2,100.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $2,130.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $2,178.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $2,238.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $2,304.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $2,376.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $2,496.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $2,568.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $2,760.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $2,766.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $2,820.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $2,940.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $3,084.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $3,114.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $3,120.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $3,288.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $3,318.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $3,456.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $3,462.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $3,486.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $3,504.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $3,630.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $3,696.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $3,774.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,864.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $3,984.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $4,116.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $5,292.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $5,454.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $5,862.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $6,120.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $6,684.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $6,876.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $7,872.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $8,316.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $8,652.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $9,786.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $11,682.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $13,152.00
MeMory-4th Node
*No Memory
Added
8GB DDR4 2666 ECC RDIMM Memory
+ $356.00
8GB DDR4 2933 ECC RDIMM Memory
+ $380.00
16GB DDR4 2933 ECC RDIMM Memory
+ $384.00
16GB DDR4 2666 ECC Registered Memory
+ $624.00
32GB DDR4 2933 ECC RDIMM Memory
+ $720.00
32GB DDR4 2666 ECC Registered Memory
+ $924.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $1,104.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,996.00
HARD DISK WD/Seagate/HGST Enterprise-Class
Select Storage Capacity:
3.5" SATA 6Gb/s 7200RPM 1TB
Added
3.5" SATA 6Gb/s 7200RPM 2TB
+ $49.00
3.5" SATA 6Gb/s 7200RPM 3TB
+ $90.00
3.5" SATA 6Gb/s 7200RPM 4TB
+ $104.00
3.5" SATA 6Gb/s 7200RPM 6TB
+ $145.00
3.5" SATA 6Gb/s 7200RPM 8TB
+ $244.00
3.5" SATA 6Gb/s 7200RPM 10TB
+ $305.00
3.5" SAS 12Gb/s 7200RPM 2TB
+ $61.00
3.5" SAS 12Gb/s 7200RPM 4TB
+ $116.00
3.5" SAS 12Gb/s 7200RPM 6TB
+ $209.00
3.5" SAS 12Gb/s 7200RPM 8TB
+ $257.00
3.5" SAS 12Gb/s 7200RPM 10TB
+ $330.00
(optional)HARD DISK WD/Seagate/HGST Enterprise-Class
*No Hard Drive
Added
M.2 2280 SATA SSD 128GB
+ $54.00
M.2 2280 SATA SSD 256GB
+ $93.00
M.2 2280 SATA SSD 512GB
+ $167.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
Linux Ubuntu LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2182
1
5724.0000







About Superxpert
SuperXpert.com a member of Yang Ming International Corporation is located in city of La Puente, With a state-of-the-art R&D and manufacturing facility, the company has grown organically, providing cutting edge technological products backed up with tech-savvy engineers, four full-scale assembly lines, and a sophisticated testing lab. In addition we use the latest cutting edge technology to produce some of the server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at Superxpert, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
Super Micro Server & Computer
Supermicro® is the global leader in high-performance, high-efficiency server technology and innovation is a premier provider of end-to-end green computing solutions for Enterprise IT, Datacenter, Cloud Computing, HPC and Embedded Systems worldwide. Supermicro's advanced server Building Block Solutions® offers a wide varity of modular, interoperable components for building energy-efficient, application-optimized, computing solutions. This broad line of products includes servers, blades, GPU systems, workstations, motherboards, chassis, power supplies, storage technologies, networking solutions and SuperRack® cabinets/accessories. Architecture innovations include Twin Architecture, SuperServer®, SuperBlade®, MicroCloud, Super Storage Bridge Bay (SBB), Double-Sided Storage™, Universal I/O (UIO) and WIO expansion technology all of which deliver unrivaled performance and value.
Excellence in Customer Service
Today, SuperXpert.com continues to strive to help customers quickly implement solutions to IT challenges. SuperXpert.com provide a wide range of Intel and AMD rackmount servers with form factors from 1U through 9U and offers various innovative computing solutions for HPC, Data Center, Virtualization, Clustering, GPU, and Cloud Computing applications to help customers meet today demands of high computing capacity and competitiveness. All this to go along with our professional and knowledgeable staff always make sure our customers receives the best service possible.
