6049P-E1CR24H
$4,266.00 Configured Summary
6049P-E1CR24H
Supermicro 4U 24Bays Dual 2nd Gen Scalable Processor Rackmount Server

  • Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 3 PCI-E 3.0 x16, 4 PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port)
  • 24 Hot-swap 3.5" SAS3/SATA3 drive bays; 2 hot-swap 2.5" SATA3 drive bays (rear), 2 M.2 NVMe, Expander based backplane
  • Broadcom 3108 SAS3 AOC
  • 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
  • Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
  • 3 Hot-swap 8cm redundant PWM cooling fans, 2 hot-swap 8cm rear exhaust PWM fans PWM fans
  • 1200W Redundant Power Supplies Titanium Level (96%)
  • Corporate Database, Database Processing & Storage, Enterprise Server, HPC, Data Center, iSCSI SAN

Storage configuration notice:
Hot-swap:
24x Hot-swap 3.5" SAS3/SATA3 drive bays
Optional:
2x Optional Onboard NVMe M.2

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SSG-6049P-E1CR24H
Processor
CPU:
Dual Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake), 3 UPI up to 10.4GT/s
Support CPU TDP 70-205W
Cores:
Up to 28 Cores
Note:
BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors
Memory
Memory Capacity:
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
4U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
7" (178mm)
Depth:
26.5" (673mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Power fail LED
Bios
BIOS Type:
256Mb AMI UEFI
Onboard Devices
Chipset:
Intel® C624 chipset
SAS:
SAS3 (12Gbps) via Broadcom 3108 AOC; HW RAID
RAID 0, 1, 5, 6, 10, 50, 60
SATA:
SATA3 (6Gbps) with RAID 0, 1, 5, 10
Network Controllers:
Intel® X557 10GBase-T Ethernet Controller
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
Hot-swap:
24x Hot-swap 3.5" SAS3/SATA3 drive bays
Optional:
2x Optional Onboard NVMe M.2
Backplane:
SAS3/SATA3 single expander per backplane
Expansion Slots
3x PCI-E 3.0 x16 slot
4x PCI-E 3.0 x8 slots
Slot 2 & 3 occupied by controller and JBOD Expansion Port
Power Supply
1200W Redundant Power Supplies with PMBus
Total Output Power:

1000W/1200W
Dimension (W x H x L):
76 x 40 x 336 mm
Input:
100-127Vac / 15-12A / 50-60Hz
200-240Vac / 8.5-7A / 50-60Hz
+12V:
Max: 83A / Min: 0A (100-127Vac)
Max: 100A / Min: 0A (200-240Vac)
+5Vsb:
Max: 4A / Min: 0A
Output Type:
19 Pairs Gold Finger Connector
Certification:
 UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Input Output
LAN:
2x RJ45 10GBase-T LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
2x USB 2.0 ports (rear)
1x Type A
VGA:
1x VGA port
Serial Port / Header:
1x Fast UART 16550 port / 1 Header
Cooling
3x Hot-swap 8cm redundant PWM cooling fans
2x Hot-swap 8cm rear exhaust PWM fans
Redundant cooling
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:

Intel® Node Manager
IPMI 2.0
NMI
SPM, SUM
SuperDoctor® 5
Watchdog

PC Health Monitoring
CPU:

Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors

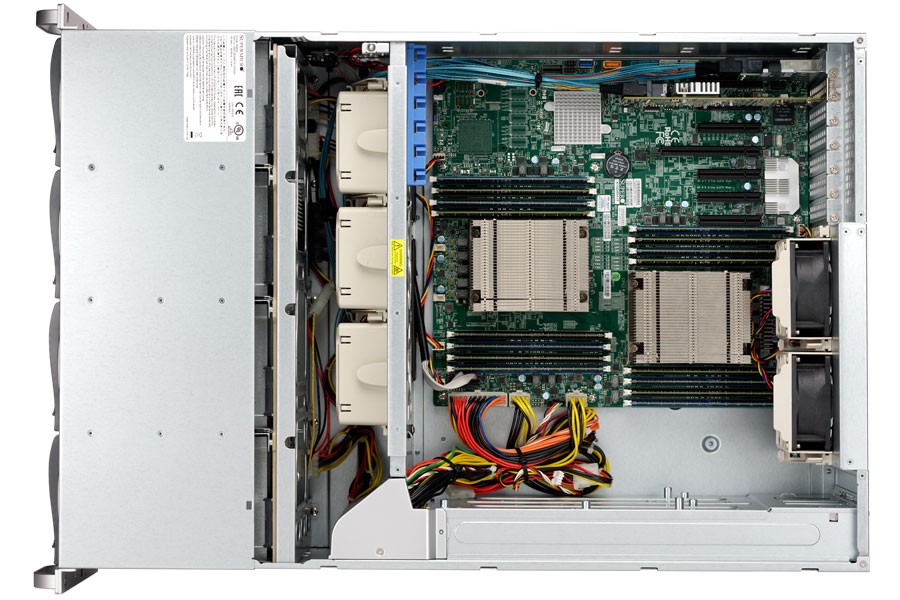

6049P-E1CR24H6049P-E1CR24H6049P-E1CR24H6049P-E1CR24H
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3204 (1.90 Ghz 85W)
Added
Intel® Xeon® Scalable 2nd Gen Bronze Processor 3206R (1.90 Ghz 85W)
+ $119.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4210R (2.40 Ghz 100W)
+ $337.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215R (3.20 Ghz 130W)
+ $725.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
+ $914.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
+ $1,071.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
+ $1,083.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218R (2.10 Ghz 125W)
+ $1,203.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6226R (2.90 Ghz 150W)
+ $1,233.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220R (2.20 Ghz 150W)
+ $1,519.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,575.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240R (2.40 Ghz 150W)
+ $1,839.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230R (2.10 Ghz 150W)
+ $1,887.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242R (3.10 Ghz 205W)
+ $2,613.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6238R (2.20 Ghz 165W)
+ $2,704.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248R (3.00 Ghz 205W)
+ $2,803.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $2,895.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6246R (3.40 Ghz 205W)
+ $3,460.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $3,639.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $3,795.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6258R (2.70 Ghz 205W)
+ $4,206.00
MEMORY
Select Memory Capacity:
Samsung 8GB DDR4 2933 ECC RDIMM Memory
+ $324.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $480.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $832.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $1,664.00
Enterprise-Class HDD/SSD
Select Storage Capacity:
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $34.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $64.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $94.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $134.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $190.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $325.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $445.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $535.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $54.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $84.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $134.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $253.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $307.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $360.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $525.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $615.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $20.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $44.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $74.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $124.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $120.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $355.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $475.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $565.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $40.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $64.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $154.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $283.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $337.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $390.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $555.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $645.00
NVMe M.2
*No NVMe M.2 Drives
Added
Intel 670p Series M.2 NVMe SSD 512GB
+ $83.00
Intel 670p Series M.2 NVMe SSD 1TB
+ $144.00
Intel 670p Series M.2 NVMe SSD 2TB
+ $311.00
KIOXIA Toshiba M.2 NVMe SSD 256GB
+ $75.00
KIOXIA Toshiba M.2 NVMe SSD 512GB
+ $138.00
Samsung 970 EVO Plus MZ-V7S500B/AM M.2 NVMe SSD 500GB
+ $105.00
Samsung 970 EVO Plus MZ-V7S1T0B/AM M.2 NVMe SSD 1TB
+ $174.00
Samsung 970 EVO Plus MZ-V7S2T0B/AM M.2 NVMe SSD 2TB
+ $339.00
Samsung 970 PRO M.2 NVMe SSD 512GB
+ $173.00
Samsung 970 PRO M.2 NVMe SSD 1TB
+ $293.00
Samsung 980 PRO MZ-V8P500B/AM M.2 NVMe SSD 500GB
+ $158.00
Samsung 980 PRO MZ-V8P1T0B/AM M.2 NVMe SSD 1TB
+ $293.00
Samsung 980 PRO MZ-V8P2T0B/AM M.2 NVMe SSD 2TB
+ $467.00
Samsung 983 DCT M.2 NVMe SSD 960GB
+ $243.00
Samsung 983 DCT M.2 NVMe SSD 1.92TB
+ $529.00
WD Blue SN500 M.2 NVMe SSD 250GB
+ $57.00
WD Blue SN500 M.2 NVMe SSD 500GB
+ $62.00
WD Blue SN500 M.2 NVMe SSD 1TB
+ $132.00
WD Black SN850 M.2 G4 NVMe SSD 500GB
+ $148.00
WD Black SN850 M.2 G4 NVMe SSD 1TB
+ $184.00
WD Black SN850 M.2 G4 NVMe SSD 2TB
+ $612.00
(optional) Enterprise-Class HDD/SSD
*No Hard Drive
Added
Intel D3-S4610 2.5" SATA III SSD 240GB
+ $139.00
Intel D3-S4610 2.5" SATA III SSD 480GB
+ $229.00
Intel D3-S4610 2.5" SATA III SSD 960GB
+ $289.00
Intel D3-S4610 2.5" SATA III SSD 1.92TB
+ $619.00
Intel D3-S4610 2.5" SATA III SSD 3.84TB
+ $949.00
Intel D3-S4610 2.5" SATA III SSD 7.68TB
+ $1,669.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 240GB
+ $86.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 480GB
+ $135.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 960GB
+ $229.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 1.9TB
+ $457.00
Samsung 883DCT 2.5" SATA 6Gb/s SSD 3.8TB
+ $885.00
Samsung PM883 2.5" SATA 6Gb/s SSD 960GB
+ $216.00
Samsung PM883 2.5" SATA 6Gb/s SSD 1.92TB
+ $397.00
Samsung PM883 2.5" SATA 6Gb/s SSD 3.8TB
+ $735.00
Samsung PM883 2.5" SATA 6Gb/s SSD 7.68TB
+ $1,424.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 1TB
+ $254.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 2TB
+ $481.00
Samsung 860 Pro 2.5" SATA 6Gb/s SSD 4TB
+ $924.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Linux Ubuntu LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2082
1
3846.0000







About Superxpert
SuperXpert.com a member of Yang Ming International Corporation is located in city of La Puente, With a state-of-the-art R&D and manufacturing facility, the company has grown organically, providing cutting edge technological products backed up with tech-savvy engineers, four full-scale assembly lines, and a sophisticated testing lab. In addition we use the latest cutting edge technology to produce some of the server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at Superxpert, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
Super Micro Server & Computer
Supermicro® is the global leader in high-performance, high-efficiency server technology and innovation is a premier provider of end-to-end green computing solutions for Enterprise IT, Datacenter, Cloud Computing, HPC and Embedded Systems worldwide. Supermicro's advanced server Building Block Solutions® offers a wide varity of modular, interoperable components for building energy-efficient, application-optimized, computing solutions. This broad line of products includes servers, blades, GPU systems, workstations, motherboards, chassis, power supplies, storage technologies, networking solutions and SuperRack® cabinets/accessories. Architecture innovations include Twin Architecture, SuperServer®, SuperBlade®, MicroCloud, Super Storage Bridge Bay (SBB), Double-Sided Storage™, Universal I/O (UIO) and WIO expansion technology all of which deliver unrivaled performance and value.
Excellence in Customer Service
Today, SuperXpert.com continues to strive to help customers quickly implement solutions to IT challenges. SuperXpert.com provide a wide range of Intel and AMD rackmount servers with form factors from 1U through 9U and offers various innovative computing solutions for HPC, Data Center, Virtualization, Clustering, GPU, and Cloud Computing applications to help customers meet today demands of high computing capacity and competitiveness. All this to go along with our professional and knowledgeable staff always make sure our customers receives the best service possible.
