2049U-TR4
$9,069.00 Configured Summary
2049U-TR4
Supermicro 2U 24Bays Dual 2nd Gen Sacalable Processor Rackmount Server

  • Quad Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
  • 48 DIMMs; up to 12TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM
  • 5 PCI-E 3.0 x8 slots, 6 PCI-E 3.0 x16 slots
  • 4 GbE LAN ports via AOC-2UR66-i4G, 1 dedicated IPMI LAN port
  • 24 Hot-swap 2.5" SAS3/SATA3 drive bays supported via optional Add-on RAID controller card; 4 Hybrid ports with NVMe support via extra AOC
  • Optional up to 2 Active Cooling GPUs
  • 4x 8cm heavy duty fans
  • 1600W Redundant Power Supplies Titanium Level (96%)
  • 48 DDR4 DIMM Slots, up to 6TB, Up to 11 PCI-E 3.0 slots, 4 Hot-Swap NVMe Bays support, via optional NVMe AOC, Flexible Connectivity Options
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 4 CPUs, 4 DIMMs and 1 HDD recommended). Please contact our sales rep for special 2 CPUs with 2 DIMMs requirements with fees.

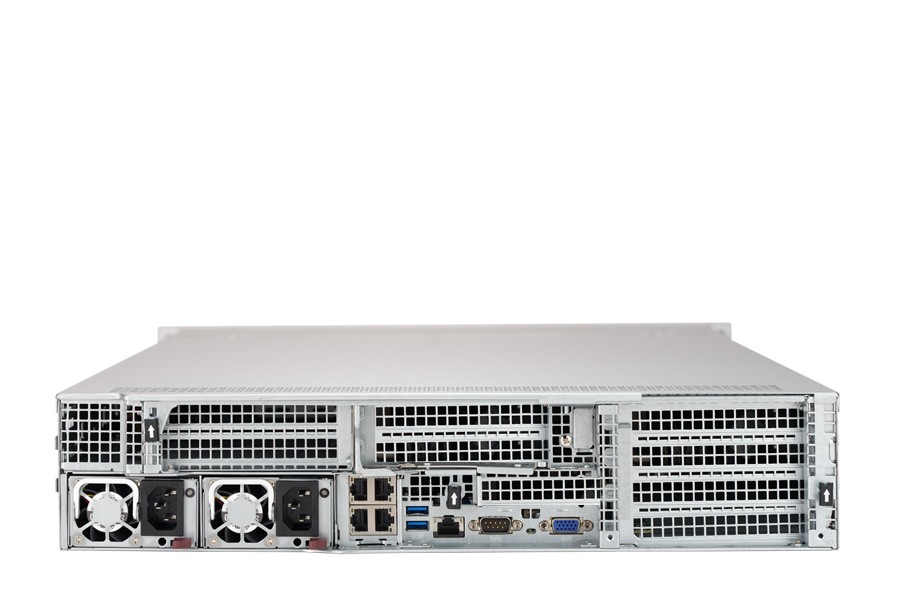

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU SYS-2049U-TR4
Processor
CPU:
Quad Socket P (LGA 3647)
2nd Gen. Intel® Xeon® Scalable Processors (Cascade Lake/Skylake),3 UPI up to 10.4GT/s
Support CPU TDP 70-165W with IVR, 205W supported with optional kit
Cores:
Up to 28 Cores
Note:
BIOS version 3.0 or above is required to support 2nd Gen. Intel® Xeon® Scalable processor
Memory
Memory Capacity:
48 DIMM slots
Up to 12TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel® Optane™ DCPMM
Memory Type:
2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Note:
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info.
Chassis
2U Rackmount Chassis
Dimensions
Width:
17.2" (437mm)
Height:
3.5" (89mm)
Depth:
30.7" (780mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power status LED
HDD activity LED
Network activity LEDs
System information (overheat/UID) LED
Bios
BIOS Type:
128Mb SPI Flash EEPROM with AMI BIOS
Onboard Devices
Chipset:
Intel® C621 chipset
SATA:
SATA3 via Intel C621; RAID 0, 1, 5, 10
Network Connectivity:
4x Gigabit Ethernet ports via AOC-2UR66-i4G; Other options
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:
ASPEED AST2500 BMC
HDD Drive Bays
24x Hot-swap 2.5" SAS3/SATA3 drive bays
Optional 24 SAS3 ports via AOC
Optional 20 SAS3 ports via AOC + 4 NVMe ports via AOC
Expansion Slots
5x PCI-E 3.0 x8 slots
6x PCI-E 3.0 x16 slots
(4x CPUs need to be installed for full access to PCI-E slots and onboard controllers. See AOC Support for details.)
Power Supply
1600W Redundant Power Supplies with PMBus
Total Output Power:

1000W/1600W
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
100-127Vac / 13 - 9A / 50-60Hz
200-240Vac / 10 - 8A / 50-60Hz
+12V:
Max: 83.3A / Min: 0A (100-127Vac)
Max: 133A / Min: 0A (200-240Vac)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
UL/cUL/CB/BSMI/CE/CCC
  Titanium Level
Input Output
SATA:
12x SATA3 (6Gbps) ports
SAS:
24x SAS3 ports support via optional Add-on Cards
NVMe:
4x Hybrid ports with NVMe support via AOC
LAN:
4x RJ45 GbE LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
2x USB 3.0 ports (rear)
Video:
1x VGA Connector
Serial Port / Header:
1x COM port (rear)
DOM:
2x SuperDOM (Disk on Module) ports
Cooling
4x 8cm heavy duty PWM fans
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
Management
Software:
SuperDoctor® 5
Watch Dog
NMI
SUM
IPMI 2.0
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery

PC Health Monitoring
CPU:
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
Thermal Control for 8x fan connectors
2049U-TR42049U-TR4
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
Intel® Xeon® Scalable 2nd Gen Silver Processor 4214 (2.20 Ghz 85W)
- $2,520.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4215 (2.50 Ghz 85W)
- $2,040.00
Intel® Xeon® Scalable 2nd Gen Silver Processor 4216 (2.10 Ghz 100W)
- $964.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5222 (3.80 Ghz 105W)
- $336.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5215 (2.50 Ghz 85W)
- $288.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5218 (2.30 Ghz 125W)
- $144.00
Intel® Xeon® Scalable Gold Processor 5115 (2.40 Ghz 85W)
Added
Intel® Xeon® Scalable Gold Processor 5122 (3.60 Ghz 105W)
+ $24.00
Intel® Xeon® Scalable Gold Processor 5118 (2.30 Ghz 105W)
+ $240.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 5220 (2.20 Ghz 125W)
+ $1,104.00
Intel® Xeon® Scalable Gold Processor 5120 (2.20 Ghz 105W)
+ $1,512.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6222 (1.80 Ghz 115W)
+ $1,680.00
Intel® Xeon® Scalable Gold Processor 6128 (3.40 Ghz 115W)
+ $2,136.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6230 (2.10 Ghz 125W)
+ $2,304.00
Intel® Xeon® Scalable Gold Processor 6126 (2.60 Ghz 125W)
+ $2,472.00
Intel® Xeon® Scalable Gold Processor 6126T (2.60 Ghz 125W)
+ $2,880.00
Intel® Xeon® Scalable Gold Processor 6130 (2.10 Ghz 125W)
+ $3,000.00
Intel® Xeon® Scalable Gold Processor 6126F (2.60 Ghz 135W)
+ $3,192.00
Intel® Xeon® Scalable Gold Processor 6130T (2.10 Ghz 125W)
+ $3,432.00
Intel® Xeon® Scalable Gold Processor 6130F (2.10 Ghz 135W)
+ $3,696.00
Intel® Xeon® Scalable Gold Processor 6132 (2.60 Ghz 140W)
+ $3,984.00
Intel® Xeon® Scalable Gold Processor 6134 (3.20 Ghz 130W)
+ $4,464.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6240 (2.60 Ghz 150W)
+ $4,752.00
Intel® Xeon® Scalable Gold Processor 6140 (2.30 Ghz 140W)
+ $5,520.00
Intel® Xeon® Scalable Gold Processor 6136 (3.00 Ghz 150W)
+ $5,544.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6242 (2.80 Ghz 150W)
+ $5,760.00
Intel® Xeon® Scalable Gold Processor 6138 (2.00 Ghz 125W)
+ $6,240.00
Intel® Xeon® Scalable Gold Processor 6138T (2.00 Ghz 125W)
+ $6,816.00
Intel® Xeon® Scalable Gold Processor 6138F (2.00 Ghz 135W)
+ $6,936.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6262 (1.90 Ghz 135W)
+ $6,960.00
Intel® Xeon® Scalable Gold Processor 6144 (3.50 Ghz 150W)
+ $7,632.00
Intel® Xeon® Scalable Gold Processor 6142 (2.60 Ghz 150W)
+ $7,752.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6248 (2.50 Ghz 150W)
+ $8,304.00
Intel® Xeon® Scalable Gold Processor 6148 (2.40 Ghz 150W)
+ $8,328.00
Intel® Xeon® Scalable Gold Processor 6142F (2.60 Ghz 160W)
+ $8,424.00
Intel® Xeon® Scalable Platinum Processor 8153 (2.00 Ghz 125W)
+ $8,496.00
Intel® Xeon® Scalable Gold Processor 6148F (2.40 Ghz 160W)
+ $9,000.00
Intel® Xeon® Scalable Gold Processor 6146 (3.20 Ghz 165W)
+ $9,264.00
Intel® Xeon® Scalable Gold Processor 6150 (2.70 Ghz 165W)
+ $9,576.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6252 (2.10 Ghz 150W)
+ $9,936.00
Intel® Xeon® Scalable Gold Processor 6154 (2.10 Ghz 125W)
+ $10,416.00
Intel® Xeon® Scalable 2nd Gen Gold Processor 6254 (3.10 Ghz 200W)
+ $10,560.00
Intel® Xeon® Scalable Gold Processor 6152 (2.10 Ghz 140W)
+ $10,944.00
Intel® Xeon® Scalable Platinum Processor 8160 (2.10 Ghz 150W)
+ $15,648.00
Intel® Xeon® Scalable Platinum Processor 8160F (2.10 Ghz 160W)
+ $16,296.00
Intel® Xeon® Scalable Gold Processor 6134M (3.20 Ghz 130W)
+ $17,928.00
Intel® Xeon® Scalable Gold Processor 6140M (2.30 Ghz 140W)
+ $18,960.00
Intel® Xeon® Scalable Platinum Processor 8168 (2.70 Ghz 205W)
+ $20,928.00
Intel® Xeon® Scalable Gold Processor 6142M (2.60 Ghz 150W)
+ $21,216.00
Intel® Xeon® Scalable Platinum Processor 8164 (2.00 Ghz 150W)
+ $21,984.00
Intel® Xeon® Scalable Platinum Processor 8156 (3.60 Ghz 105W)
+ $25,968.00
Intel® Xeon® Scalable Platinum Processor 8158 (3.00 Ghz 150W)
+ $25,968.00
Intel® Xeon® Scalable Platinum Processor 8170 (2.10 Ghz 165W)
+ $27,744.00
Intel® Xeon® Scalable Platinum Processor 8160M (2.10 Ghz 150W)
+ $29,088.00
Intel® Xeon® Scalable Platinum Processor 8176 (2.10 Ghz 165W)
+ $33,624.00
Intel® Xeon® Scalable Platinum Processor 8180 (2.50 Ghz 205W)
+ $39,456.00
Intel® Xeon® Scalable Platinum Processor 8170M (2.10 Ghz 165W)
+ $41,208.00
Intel® Xeon® Scalable Platinum Processor 8176M (2.10 Ghz 165W)
+ $47,088.00
Intel® Xeon® Scalable Platinum Processor 8180M (2.50 Ghz 205W)
+ $52,896.00
MEMORY
Select Memory Capacity:
8GB DDR4 2666 ECC RDIMM Memory
Added
8GB DDR4 2933 ECC RDIMM Memory
+ $12.00
16GB DDR4 2666 ECC Registered Memory
+ $92.00
16GB DDR4 2933 ECC RDIMM Memory
+ $116.00
32GB DDR4 2666 ECC Registered Memory
+ $452.00
32GB DDR4 2933 ECC RDIMM Memory
+ $492.00
32GB DDR4 2400 ECC LRDIMM Memory
+ $800.00
64GB DDR4 2666 ECC LRDIMM Memory
+ $1,052.00
64GB DDR4 2933 ECC LRDIMM Memory
+ $1,096.00
HARD DISK WD/Seagate/HGST Enterprise-Class
Select Storage Capacity:
2.5" SAS 12Gb/s 10000RPM 600GB
+ $242.00
2.5" SAS 12Gb/s 10000RPM 900GB
+ $316.00
2.5" SAS 12Gb/s 10000RPM 1.2TB
+ $346.00
2.5" SAS 12Gb/s 10000RPM 1.8TB
+ $541.00
2.5" SSD SATA 6Gb/s 256GB
+ $94.00
2.5" SSD SATA 6Gb/s 512GB
+ $160.00
2.5" SSD SATA 6Gb/s 1TB
+ $332.00
2.5" SSD SATA 6Gb/s 2TB
+ $564.00
(optional)HARD DISK WD/Seagate/HGST Enterprise-Class
*No Hard Drive
Added
3.5" SATA 6Gb/s 7200RPM 1TB
+ $90.00
3.5" SATA 6Gb/s 7200RPM 2TB
+ $139.00
3.5" SATA 6Gb/s 7200RPM 3TB
+ $180.00
3.5" SATA 6Gb/s 7200RPM 4TB
+ $179.00
3.5" SATA 6Gb/s 7200RPM 6TB
+ $199.00
3.5" SATA 6Gb/s 7200RPM 8TB
+ $269.00
3.5" SATA 6Gb/s 7200RPM 10TB
+ $395.00
3.5" SAS 12Gb/s 7200RPM 2TB
+ $151.00
3.5" SAS 12Gb/s 7200RPM 4TB
+ $199.00
3.5" SAS 12Gb/s 7200RPM 6TB
+ $229.00
3.5" SAS 12Gb/s 7200RPM 8TB
+ $309.00
3.5" SAS 12Gb/s 7200RPM 10TB
+ $420.00
2.5" SAS 12Gb/s 10000RPM 600GB
+ $242.00
2.5" SAS 12Gb/s 10000RPM 900GB
+ $316.00
2.5" SAS 12Gb/s 10000RPM 1.2TB
+ $346.00
2.5" SAS 12Gb/s 10000RPM 1.8TB
+ $541.00
2.5" SSD SATA 6Gb/s 256GB
+ $94.00
2.5" SSD SATA 6Gb/s 512GB
+ $160.00
2.5" SSD SATA 6Gb/s 1TB
+ $332.00
2.5" SSD SATA 6Gb/s 2TB
+ $564.00
2.5" PCIe NVMe SSD 1TB
+ $328.00
2.5" PCIe NVMe SSD 2TB
+ $603.00
2.5" PCIe NVMe SSD 4TB
+ $1,050.00
2.5" PCIe NVMe SSD 8TB
+ $2,092.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
Linux Ubuntu LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
2068
1
3245.0000







About Superxpert
SuperXpert.com a member of Yang Ming International Corporation is located in city of La Puente, With a state-of-the-art R&D and manufacturing facility, the company has grown organically, providing cutting edge technological products backed up with tech-savvy engineers, four full-scale assembly lines, and a sophisticated testing lab. In addition we use the latest cutting edge technology to produce some of the server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at Superxpert, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
Super Micro Server & Computer
Supermicro® is the global leader in high-performance, high-efficiency server technology and innovation is a premier provider of end-to-end green computing solutions for Enterprise IT, Datacenter, Cloud Computing, HPC and Embedded Systems worldwide. Supermicro's advanced server Building Block Solutions® offers a wide varity of modular, interoperable components for building energy-efficient, application-optimized, computing solutions. This broad line of products includes servers, blades, GPU systems, workstations, motherboards, chassis, power supplies, storage technologies, networking solutions and SuperRack® cabinets/accessories. Architecture innovations include Twin Architecture, SuperServer®, SuperBlade®, MicroCloud, Super Storage Bridge Bay (SBB), Double-Sided Storage™, Universal I/O (UIO) and WIO expansion technology all of which deliver unrivaled performance and value.
Excellence in Customer Service
Today, SuperXpert.com continues to strive to help customers quickly implement solutions to IT challenges. SuperXpert.com provide a wide range of Intel and AMD rackmount servers with form factors from 1U through 9U and offers various innovative computing solutions for HPC, Data Center, Virtualization, Clustering, GPU, and Cloud Computing applications to help customers meet today demands of high computing capacity and competitiveness. All this to go along with our professional and knowledgeable staff always make sure our customers receives the best service possible.
