1023US-TR4
$3,480.00 Configured Summary
1023US-TR4
SuperMicro 1U 4Bays Dual Processor AMD Rackmount Server

  • Dual AMD EPYC 7000-Series     Processors; System on Chip (SoC)
  • Up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
  • Expansion slots: 2x PCI-E x16 (FH/HL 9.5") slots, 2x PCI-E x8 slots (1LP, 1 internal LP)
  • Integrated IPMI 2.0 + KVM with dedicated LAN
  • Quad Gigabit LAN ports via Intel i350AM4
  • Drive Bays: 4 hot-swap 3.5" SATA3 by default 4 NVMe (optional supported) or 4 SAS3 ports (SAS Add-on card is optional)
  • 1000W Redundant (1+1) Power Supplies Titanium Level (96%+)
  • Virtualization, Cloud Computing, High End Enterprise Server, Flexible Networking Options

Storage configuration notice:
Hot-swap:
4x Hot-swap 3.5" drive bays or NVMe Drive
Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact our sales rep for special requirements.

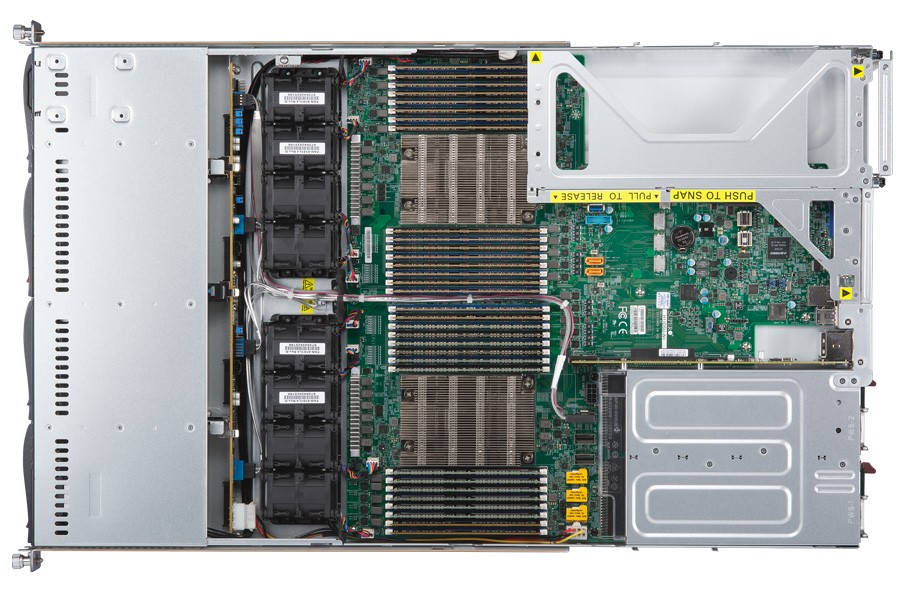

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU AS-1023US-TR4
Processor
CPU:
Dual AMD EPYC™ 7000-series Processors
Socket SP3
Chipset:
System on Chip (SoC)
Memory
Memory Capacity:
32 DIMM sockets
Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
8-channel memory bus
Memory Type:
DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes:
4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage:
1.2V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
1U Rackmount Chassis
Dimensions
Height:
1.7" (43mm)
Width:
17.2" (437mm)
Depth:
29" (737mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED
Bios
BIOS Type:
AMI 128Mb SPI Flash EEPROM
BIOS Features:
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Onboard Devices
VGA:
ASPEED AST2500 BMC
HDD Drive Bays
4x 3.5" Hot-swap SATA drive bays
HDD Backplane:
Supports 4 SATA3 or 4 NVMe or 4 SAS3 HDD
Expansion Slots
2x PCI-E x16 (FH/HL 9.5") slots
2x PCI-E x8 (LP) slot (1 LP, 1 internal LP)
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
Power Supply
1000W Redundant Power Supplies with PMBus
Total Output Power:
800W/1000W
Dimension (W x H x L):
73.5 x 40 x 203 mm
Input:
100-127Vac / 9.8 - 7A / 50-60Hz
200-240Vac / 7 - 5A / 50-60Hz
+12V:
Max: 66.7A / Min: 0A (100-127Vac)
Max: 83A / Min: 0A (200-240Vac)
12Vsb:
Max: 2.1A / Min: 0A
Output Type:
25 Pairs Gold Finger Connector
Certification:
UL/cUL/CB/BSMI/CE/CCC
Titanium Level
Input Output
SATA:
4x SATA3 (6 Gbps) ports
LAN:
Quad Gigabit LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
3x USB 3.0 ports (2 rear + 1 Type A)
VGA:
1x VGA port
SAS:
4x SAS3 ports support via optional Add-on Card
NVMe:
4x NVMe support with optional cables
Others:
1x COM port (rear)
2x SATA DOM power connector
TPM 1.2 header
Cooling
Fans:
8 heavy-duty PWM fans with optimal fan speed control
Air Shroud:
2 Air Shroud
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Details
PC Health Monitoring
CPU:
Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator
FAN:
Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic
LED:
CPU / System Overheat LED
Other Features:
Chassis Intrusion Detection
Chassis Intrusion Header
1023US-TR41023US-TR41023US-TR41023US-TR4
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
AMD ROME EPYC™ 7252 Processor 3.1Ghz,120W)
- $12.00
AMD EPYC™ 7251 Processor (2.1Ghz,120W)
Added
AMD ROME EPYC™ 7262 Processor (3.2Ghz,155W)
+ $228.00
AMD ROME EPYC™ 7272 Processor (2.9Ghz,120W)
+ $348.00
AMD ROME EPYC™ 7282 Processor (2.8Ghz,120W)
+ $408.00
AMD EPYC™ 7281 Processor (2.1Ghz,155/170W)
+ $420.00
AMD EPYC™ 7351P Processor (2.4Ghz,155/170W)
+ $660.00
AMD EPYC™ 7301 Processor (2.2Ghz,155/170W)
+ $840.00
AMD ROME EPYC™ 7302 Processor (3.0Ghz,155W)
+ $1,188.00
AMD EPYC™ 7401P Processor (2.0Ghz,155/170W)
+ $1,440.00
AMD EPYC™ 7351 Processor (2.4Ghz,155/170W)
+ $1,500.00
AMD ROME EPYC™ 7352 Processor (2.3Ghz,155W)
+ $2,076.00
AMD ROME EPYC™ 7402 Processor (2.8Ghz,180W)
+ $3,108.00
AMD EPYC™ 7401 Processor (2.0Ghz,155/170W)
+ $3,300.00
AMD ROME EPYC™ 7452 Processor (2.35Ghz,155W)
+ $3,684.00
AMD EPYC™ 7551P Processor (2.0Ghz,180W)
+ $3,900.00
AMD EPYC™ 7451 Processor (2.3Ghz,180W)
+ $4,620.00
AMD ROME EPYC™ 7502 Processor (2.5Ghz,180W)
+ $5,052.00
AMD ROME EPYC™ 7542 Processor (2.9Ghz,225W)
+ $6,948.00
AMD EPYC™ 7551 Processor (2.0Ghz,180W)
+ $7,020.00
AMD EPYC™ 7501 Processor (2.0Ghz,155/170W)
+ $7,020.00
AMD ROME EPYC™ 7552 Processor (2.2Ghz,200W)
+ $8,436.00
AMD EPYC™ 7601 Processor (2.2Ghz,180W)
+ $8,940.00
AMD ROME EPYC™ 7642 Processor (2.3Ghz,225W)
+ $10,212.00
AMD ROME EPYC™ 7702 Processor (2.0Ghz,200W)
+ $14,196.00
AMD ROME EPYC™ 7742 Processor (2.25Ghz,225W)
+ $15,396.00
MEMORY
Select Memory Capacity:
Samsung 8GB DDR4 2933 ECC RDIMM Memory
Added
Samsung 8GB DDR4 3200 ECC RDIMM Memory
+ $6.00
Samsung 16GB DDR4 2933 ECC RDIMM Memory
+ $62.00
Samsung 16GB DDR4 3200 ECC RDIMM Memory
+ $68.00
Samsung 32GB DDR4 2933 ECC RDIMM Memory
+ $168.00
Samsung 32GB DDR4 3200 ECC RDIMM Memory
+ $174.00
Samsung 64GB DDR4 2933 ECC RDIMM Memory
+ $416.00
Samsung 64GB DDR4 3200 ECC RDIMM Memory
+ $422.00
Hynix 64GB DDR4 2666 ECC LRDIMM Memory
+ $462.00
Samsung 64GB DDR4 2933 ECC LRDIMM Memory
+ $490.00
Samsung 128GB DDR4 3200 ECC LRDIMM Memory
+ $1,430.00
(optional) Enterprise-Class HDD/SSD
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $43.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $70.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $120.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $170.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $173.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $220.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 16TB
+ $232.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 18TB
+ $307.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 20TB
+ $348.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 22TB
+ $448.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $57.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $92.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $132.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $152.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $186.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $219.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $247.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $300.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $361.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 22TB
+ $435.00
Micron 7450 PRO NVMe U.3 (15mm) SSD 960GB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 2TB
+ $31.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 4TB
+ $45.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 6TB
+ $94.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 8TB
+ $100.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 10TB
+ $170.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 12TB
+ $177.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 14TB
+ $216.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 16TB
+ $222.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 18TB
+ $241.00
Seagate Exos 3.5" SATA 6GB/s 7200 RPM HDD 20TB
+ $335.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 2TB
+ $18.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 4TB
+ $59.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 6TB
+ $80.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 8TB
+ $135.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 10TB
+ $202.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 12TB
+ $220.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $290.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $360.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $281.00
Seagate Exos 3.5" SAS 12Gb/s 7200 RPM HDD 20TB
+ $351.00
NETWORK CARD
NETWORK ADAPTERNETWORK ADAPTERNETWORK ADAPTER
*No Network Adapter
Added
Intel® 1G Ethernet Adapter I350-T2V2 (2x RJ-45)
+ $241.00
Intel® 1G Ethernet Adapter I350-T4V2 (4x RJ-45)
+ $341.00
Intel® 10G Ethernet Adapter X550-T1 (1x RJ45)
+ $428.00
Intel® 10G Ethernet Adapter X550-T2 (2x RJ45)
+ $462.00
Intel® 10G Ethernet Adapter X710-DA2 (2x QSFP+)
+ $501.00
Intel® 25G Ethernet Adapter XXV710-DA1 (1x SFP28)
+ $475.00
Intel® 25G Ethernet Adapter XXV710-DA2 (2x SFP28)
+ $512.00
Intel® 40G Ethernet Adapter XL710-QDA1 (1x QSFP+)
+ $558.00
Intel® 40G Ethernet Adapter XL710-QDA2 (2x QSFP+)
+ $636.00
Mellanox NVIDIA 10/25GbE MCX512A-ACAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $610.00
Mellanox NVIDIA 100GbE MCX516A-CCAT ConnectX-5 Ethernet Adapter (2x QSFP28)
+ $1,664.00
Mellanox NVIDIA 200GbE MCX653105A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (1x QSFP56)
+ $1,976.00
Mellanox NVIDIA 200GbE MCX653106A-HDAT-SP ConnectX-6 VPI Ethernet Adapter (2x QSFP56)
+ $2,145.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
Microsoft Windows Server 2022 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
1961
1
2002.0000
Servers
Cloud
Solutions
Workstations
Components



Copyright©  Yang Ming International Corp. All Rights Reserved.
595 Yorbita Road, La Puente, CA 91744 | Tel:(800)526-8650 | Tel:(626)956-0100 | Fax:(626)956-0098







About Superxpert
SuperXpert.com a member of Yang Ming International Corporation is located in city of La Puente, With a state-of-the-art R&D and manufacturing facility, the company has grown organically, providing cutting edge technological products backed up with tech-savvy engineers, four full-scale assembly lines, and a sophisticated testing lab. In addition we use the latest cutting edge technology to produce some of the server and data storage solutions, we also following strict green manufacturing practices to make sure we are as environmentally conscious as possible. Here at Superxpert, we strive to continue our innovation in server and data storage and IT solutions, and aim to provide even better products and services to our clients.
Super Micro Server & Computer
Supermicro® is the global leader in high-performance, high-efficiency server technology and innovation is a premier provider of end-to-end green computing solutions for Enterprise IT, Datacenter, Cloud Computing, HPC and Embedded Systems worldwide. Supermicro's advanced server Building Block Solutions® offers a wide varity of modular, interoperable components for building energy-efficient, application-optimized, computing solutions. This broad line of products includes servers, blades, GPU systems, workstations, motherboards, chassis, power supplies, storage technologies, networking solutions and SuperRack® cabinets/accessories. Architecture innovations include Twin Architecture, SuperServer®, SuperBlade®, MicroCloud, Super Storage Bridge Bay (SBB), Double-Sided Storage™, Universal I/O (UIO) and WIO expansion technology all of which deliver unrivaled performance and value.
Excellence in Customer Service
Today, SuperXpert.com continues to strive to help customers quickly implement solutions to IT challenges. SuperXpert.com provide a wide range of Intel and AMD rackmount servers with form factors from 1U through 9U and offers various innovative computing solutions for HPC, Data Center, Virtualization, Clustering, GPU, and Cloud Computing applications to help customers meet today demands of high computing capacity and competitiveness. All this to go along with our professional and knowledgeable staff always make sure our customers receives the best service possible.
