8048B-C0R4FT
Please Inquire Configured Summary
8048B-C0R4FT
Supermicro 4U 5 bays Quad Processor SuperServer

  • Quad socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
  • Up to 4TB DDR4 (128GB 3SDS LRDIMM), up to 1866MHz; 32x DIMM slots
  • 2x PCI-E 3.0 x16 FH slot; 2x PCI-E 3.0 x8 FH slot
  • Intel® X540 Dual port 10GBase-T
  • I/O ports: 2x 10GBase-T, 1x Dedicated LAN for IPMI Remote Management, 1x VGA, 1x COM port, 3x USB 2.0
  • 5x 3.5" Hot-swap SAS2 Drive Bays; SAS2 via onboard LSI 3008
  • 3x 9cm + 3x 8cm Heavy Duty fans with speed control
  • 1400W Redundant Digital PS Platinum Level (95%)

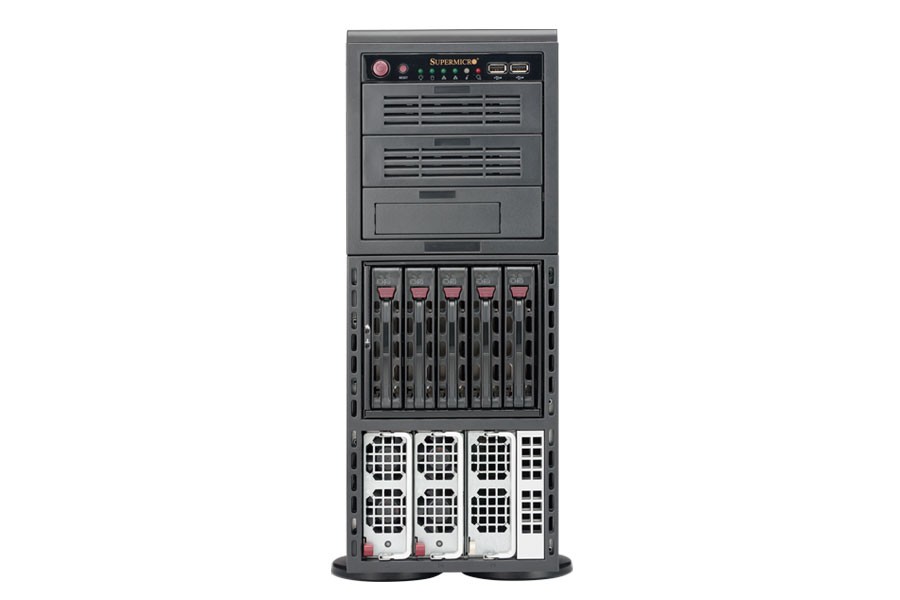

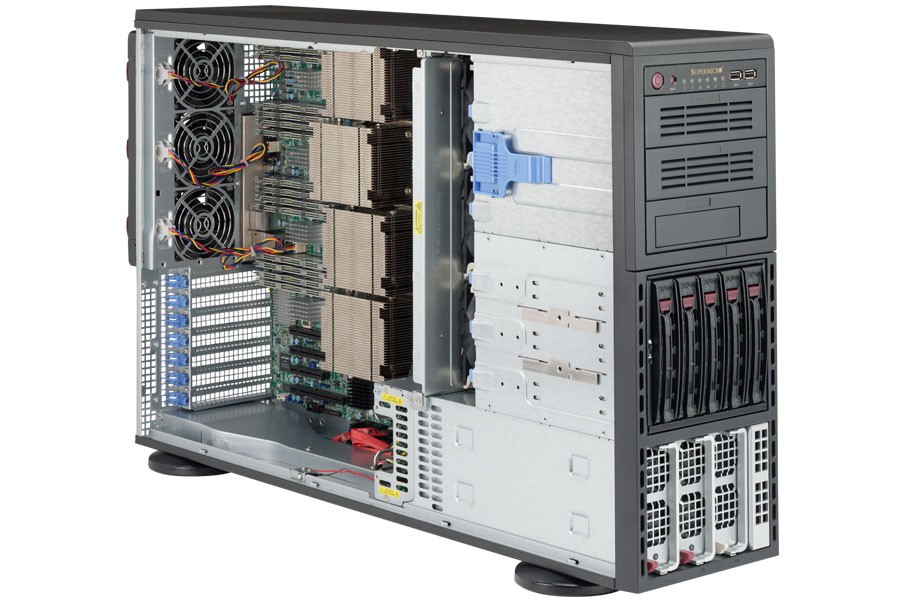

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 8048B-C0R4FT
Processor
CPU:
Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP)
Quad Socket R1 (LGA 2011)
Cache:
Up to 60 MB
System Bus:
QPI up to 9.6 GT/s
Memory
Memory Capacity:
32x 288-pin DDR4 DIMM slots
Supports up to 4TB DDR4 ECC 3SDS LRDIMM in 32 DIMM slots
Memory Type:
1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes:
128GB, 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage:
1.2 V
Error Detection:
Corrects single-bit errors
Chassis
4U Rackmount
Dimensions
Height:
18.2" (462mm)
Width:
7.0" (178mm)
Depth:
28.4" (721mm)
Bios
BIOS Type:
128MB SPI Flash EEPROM with AMI® BIOS
BIOS Features:
Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support
Onboard Devices
Chipset:
Intel® C602J chipset
SAS:
SAS2 (6Gbps) via LSI® 3008 controller
SATA:
SATA2 (3Gbps) with RAID 0, 1, 5, 10
SATA3 (6Gbps) with RAID 0, 1
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers:
Intel® X540 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBase-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201F PHY (dedicated IPMI)
Graphics:
ASPEED 2400
HDD Drive Bays
5x 3.5" Hot-swap Drive Bays
Expansion Slots
2x PCI-E 3.0 x16 Full-heigh slot
2x PCI-E 3.0 x8 Full-heigh slot
Power Supply
Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage:
100-240 V, 50-60 Hz, 15 Amp max
+12V:
100 Amp/115 Vac
117 Amp/230 Vac
With Power Distributor:
+5V: 30 Amp
+3.3V: 25 Amp
-12V: 0.6 Amp
Certification:
Platinum Level Certified
Input Output
SAS:
8x SAS2 ports (6Gbps)
LAN:
2x RJ45 10GBase-T ports
1x dedicated LAN port for IPMI on AOM
USB:
3x USB 2.0 rear ports
Serial Port / Header:
2x Fast UART 16550 ports: 1 rear and 1 header
DOM:
2x DOM (Disk on Module) power connectors
Cooling
Fans:
3x 9cm Heavy Duty fans with speed controlCooling Fans
3x 8cm Heavy Duty fans with speed controlCooling Fans
Shrouds:
1x Air Shroud (MCP-310-74806-0B)
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
8048B-C0R4FT8048B-C0R4FT8048B-C0R4FT

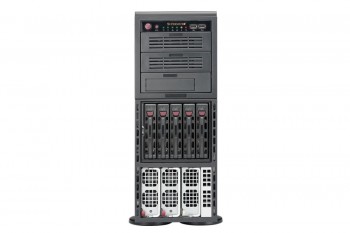

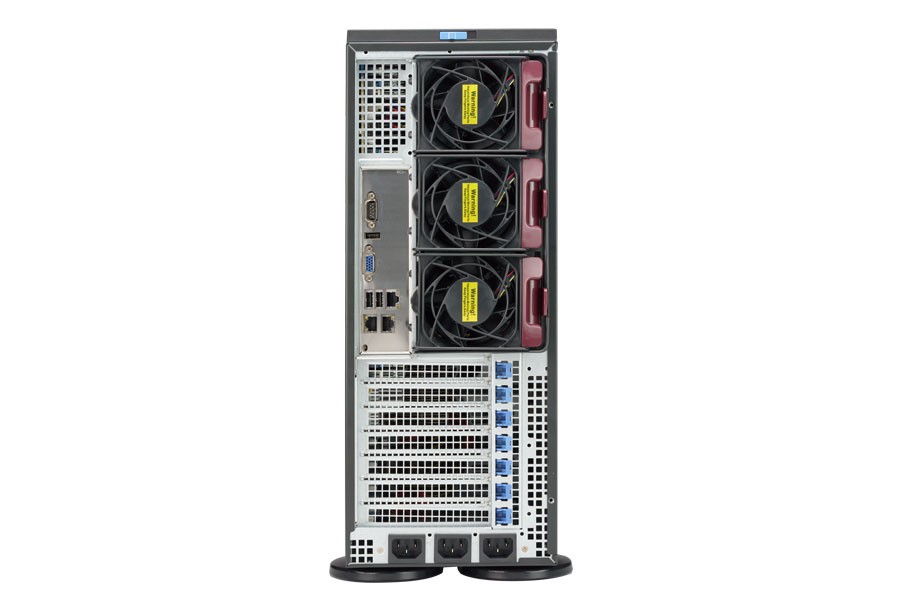

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
*No Processor
Added
Intel® Xeon® Processor E7-4809 v4 (20M Cache, 2.10 GHz,115W)
Intel® Xeon® Processor E7-4820 v4 (25M Cache, 2.00 GHz,115W)
Intel® Xeon® Processor E7-4830 v4 (35M Cache, 2.00 GHz,115W)
Intel® Xeon® Processor E7-4850 v4 (40M Cache, 2.10 GHz,115W)
Intel® Xeon® Processor E7-8860 v4 (45M Cache, 2.20 GHz,140W)
Intel® Xeon® Processor E7-8867 v4 (45M Cache, 2.40 GHz,165W)
Intel® Xeon® Processor E7-8870 v4 (50M Cache, 2.10 GHz,140W)
Intel® Xeon® Processor E7-8893 v4 (60M Cache, 3.20 GHz)
Intel® Xeon® Processor E7-8890 v4 (60M Cache, 2.20 GHz,165W)
MEMORY
Select Memory Capacity:
*No Memory
Added
Enterprise-Class HDD/SSD
Select Storage Capacity:
*No Hard Drive
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Linux Fedora Workstation Edition Linux 64-bit (No Media)
Debian Linux (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
