7038A-I
$761.00 Configured Summary
7038A-I
Supermicro Mid-Tower 4 Bays 2 Processor Whisper Quiet Workstation

  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 / v3 family; QPI up to 9.6GT/s
  • Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots
  • 3x PCI-E 3.0 x16, 2x PCI-E 3.0 x8, 1x PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
  • Intel® i210 Dual port GbE LAN
  • 7.1 HD Audio
  • 4x 3.5" HDD bays (internal), 2x 5.25" drive bays, and 1x 3.5" internal fixed drive bay
  • 900W Multi-output Power Supply Gold Level Certified
  • Whisper Quiet Workstation

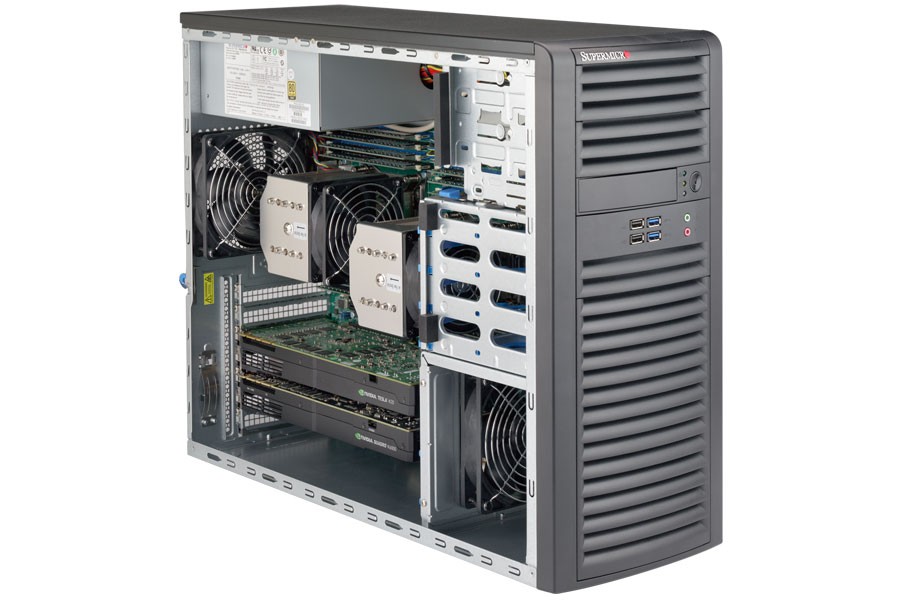

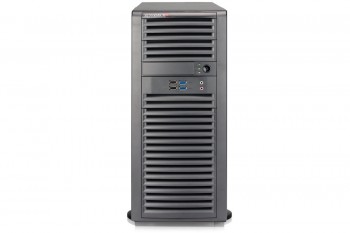

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 7038A-I
Processor
CPU:
Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 160W TDP)
Dual Socket R3 (LGA 2011)
Cores / Cache:
Up to 22 Cores / Up to 55MB Cache
System Bus:
QPI up to 9.6 GT/s
Note:
BIOS version 2.0 or above is required
Note:
Please contact sales rep. for additional information about frequency optimized CPUs and specialized system optimization.
Memory
Memory Capacity:
16x 288-pin DDR4 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type:
2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes:
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
3DS LRDIMM: 128GB
Memory Voltage:
1.2 V
Error Detection:
Corrects single-bit errors
Chassis
Mid-Tower
Dimensions
Height:
16.7" (424mm)
Width:
7.6" (193mm)
Depth:
20.68" (525.3mm)
Front Panel
Buttons:
Power On/Off button
LEDs:
Power LED
Hard drive activity LED
Network activity LED
System Overheat LED
Ports:
2x front USB 3.0 Ports
2x front USB 2.0 Ports
2x front HD/AC97 Audio Ports
Bios
BIOS Type:
128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features:
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Onboard Devices
Chipset:
Intel® C612 chipset
SATA:
SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers:
Intel® i210 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio:
RealTek ALC888 7.1 High Definition Audio with S/PDIF header
Super I/O:
Nuvoton W83627
HDD Drive Bays
Internal:
4x 3.5" SATA HDD Bays
(90° rotatable drive cage)
Enterprise SATA HDD only recommended
Peripheral Bay:
2x 5.25" standard drive bays
1x 3.5" internal fixed drive bay
Expansion Slots
PCI-Express:
3x PCI-E 3.0 x16 slots
2x PCI-E 3.0 x8 slots
1x PCI-E 2.0 x4 (in x8) slot supports Thunderbolt 2.0 AIC
Power Supply
900W AC multi output power supply
AC Voltage:
100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby:
3 Amp
+12V1:
25 Amp
+12V2:
25 Amp
+12V3:
25 Amp
+12V4:
25 Amp
+5V:
25 Amp
+3.3V:
25 Amp
-12V:
0.5 Amp
Certification:
Gold Level
Note:
Max. continuous combined load on +3.3V and +5V output shall not exceed 155W.
Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W.
Input Output
SATA:
10x SATA3 (6Gbps) ports
LAN:
2x RJ45 Gigabit Ethernet LAN ports
USB:
6x USB 3.0 ports (4 rear + 2 via header)
5x USB 2.0 ports (2 rear + 2 via header + 1 Type A)
Audio:
7.1 HD Audio with optical S/PDIF
DOM:
2x DOM (Disk on Module) power connectors
TPM:
1x TPM 1.2 20-pin Header
Cooling
Fans:
2x 12cm (1859rpm) cooling fans
Optimized cooling technology for Whisper-Quiet Operation
Heatsink:
Optional 2x Active CPU Heat Sink (SNK-P0050AP4)
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
7038A-I7038A-I7038A-I

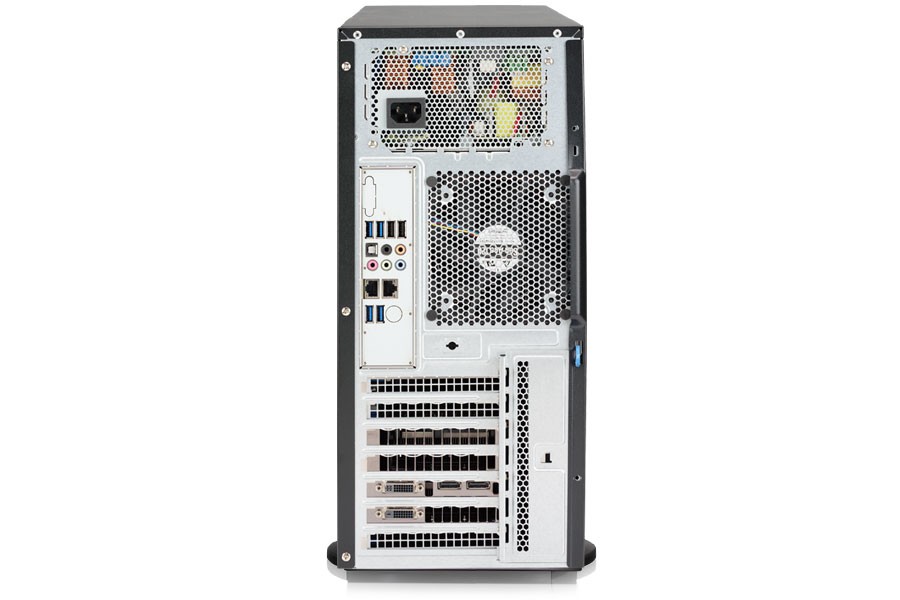

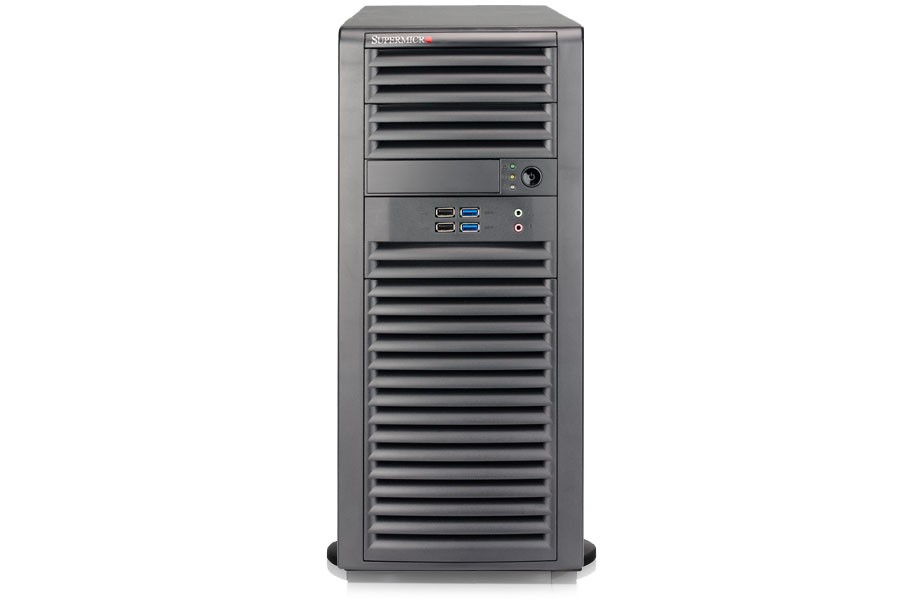

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
*No Processor
Added
MEMORY
Select Memory Capacity:
*No Memory
Added
Enterprise-Class HDD/SSD
Select Storage Capacity:
*No Hard Drive
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
+ $129.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $172.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $199.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $249.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $299.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $302.00
GPU/Coprocessor
*No GPU
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
