Supermicro 2U 6 Bays Quad Processor SuperServer
- Quad socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
- Up to 4TB DDR4 (128GB 3SDS LRDIMM), up to 1866MHz; 32x DIMM slots
- 2x PCI-E 3.0 x16 Low-profile slot;2x PCI-E 3.0 x8 Low-profile slot
- Intel® i350 Dual port GbE LAN
- I/O ports: 2x GbE LAN, 1x Dedicated LAN for IPMI Remote Management, 1x VGA, 1x COM port, 3x USB 2.0
- 6x 3.5" Hot-swap SATA Drive Bays
- 3x 8cm Heavy Duty fans w/ speed control
- 1400W Redundant Digital PS Platinum Level (95%)

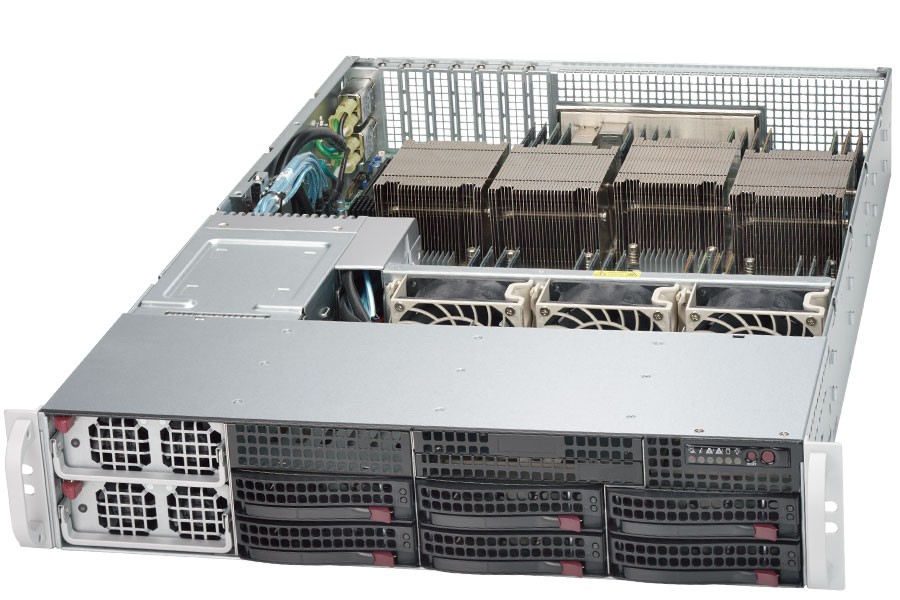

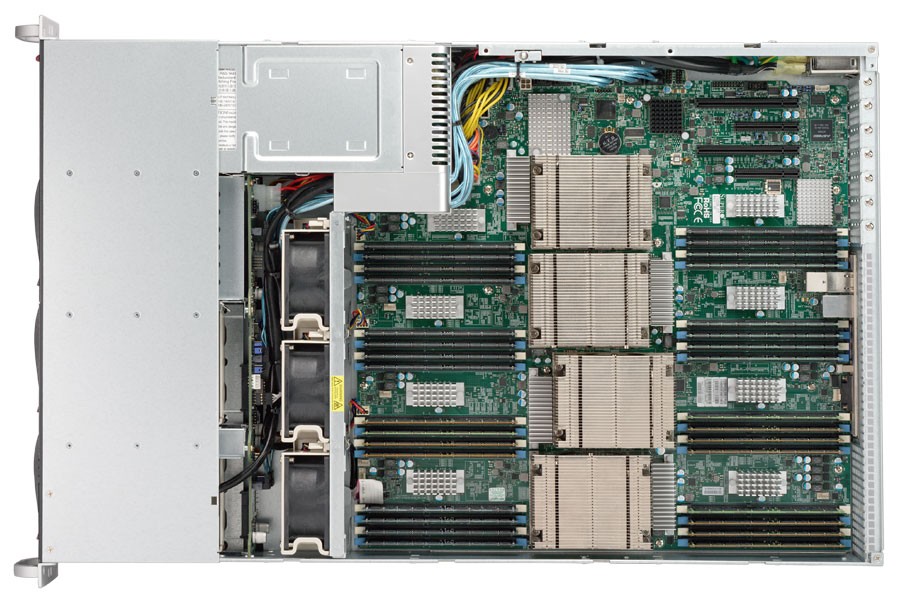

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | 8028B-TR4F |
| Processor | CPU:
Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP) Quad Socket R1 (LGA 2011) Cache: Up to 60 MB System Bus: QPI up to 9.6 GT/s |
| Memory | Memory Capacity:
32x 288-pin DDR4 DIMM slots Supports up to 2TB DDR4 ECC LRDIMM in 32 DIMM slots Memory Type: 1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs DIMM Sizes: 128GB,64GB, 32GB, 16GB, 8GB, 4GB Memory Voltage: 1.2 V Error Detection: Corrects single-bit errors |
| Chassis | 2U Chassis
|
| Dimensions | Height:
3.5" (89mm) Width: 17.2" (437mm) Depth: 27.9" (709mm) Available Colors:
Black |

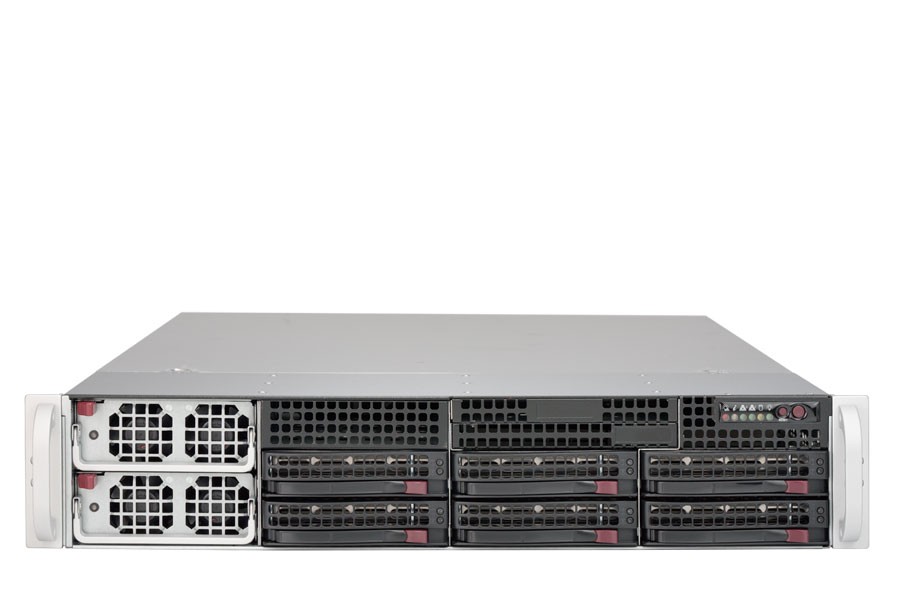

| Front Panel | Buttons:
Power On/Off button System Reset button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED |
| Bios | BIOS Type:
128MB SPI Flash EEPROM with AMI® BIOS BIOS Features: Plug and Play (PnP) PCI 2.2 ACPI up to 3.0 USB Keyboard support |
| Onboard Devices | Chipset:
Intel® C602J chipset SATA: SATA2 (3Gbps) with RAID 0, 1, 5, 10 SATA3 (6Gbps) with RAID 0, 1 IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers: Intel® i350 Dual port GbE LAN Virtual Machine Device Queues reduce I/O overhead Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201F PHY (dedicated IPMI) Graphics: ASPEED AST2400 BMC |
| HDD Drive Bays | 6x 3.5" Hot-swap Drive Bays
|
| Optical Drive | 1x Slim DVD-ROM (Optional)
|
| Expansion Slots | 2x PCI-E 3.0 x16 Low-profile slot
2x PCI-E 3.0 x8 Low-profile slot |
| Power Supply | Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage: 100-240 V, 50-60 Hz, 15 Amp max +12V: 100 Amp/115 Vac 117 Amp/230 Vac With Power Distributor: +5V: 30 Amp +3.3V: 25 Amp -12V: 0.6 Amp Certification: 80 plus Platinum Level Certified |

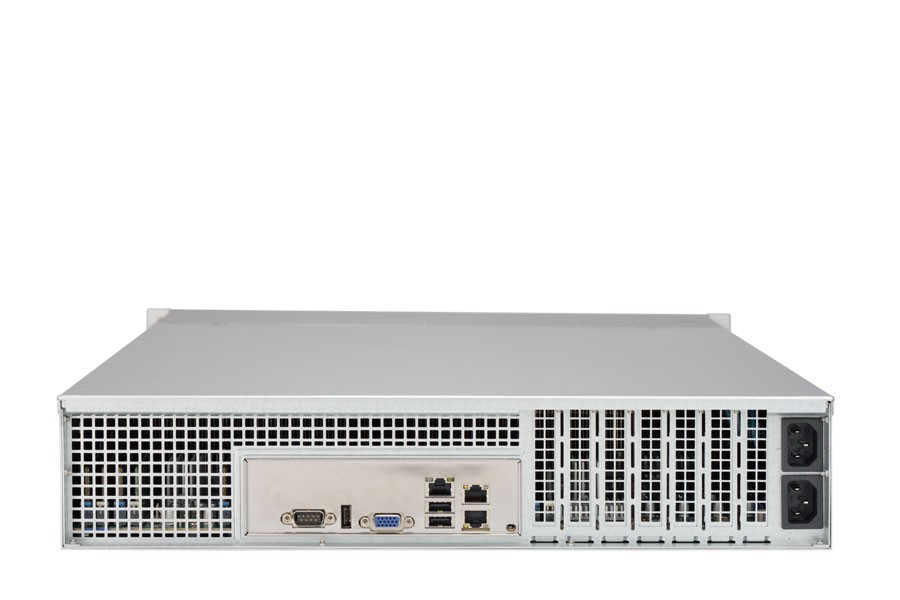

| Input Output | SATA:
2x SATA3 (6Gbps) ports 4x SATA2 (3Gbps) ports LAN: 2x RJ45 Gigabit Ethernet LAN ports 1x dedicated LAN port for IPMI USB: 3x USB 2.0 rear ports Video: 1x VGA Port Serial Port / Header: 1 Fast UART 16550 serial port |
| Cooling | Fans:
3x 8cm Hot-swap Cooling fans Shroud: 1x Air Shroud |
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Details | Backplane:
SAS/SATA HDD Backplane PC Health Monitoring
CPU:
Monitors for CPU Cores, +1.2V, 1.5V, +3.3V, +12V, (+3V, 1.0V, 1.2V, 1.8V, 1.1V) Standby, VBAT, Memory, Chipset Voltages. 4-Phase-switching voltage regulator with auto-sense from 0.6V-1.35V FAN: 4-pin fan headers with tachometer status monitoring Low noise fan speed control mode Temperature: Monitoring for CPU and system environment Thermal Control for 10x fan connectors Other Features: Chassis intrusion detection |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
*No Processor
Added
Intel® Xeon® Processor E7-4809 v4 (20M Cache, 2.10 GHz,115W)
Intel® Xeon® Processor E7-4820 v4 (25M Cache, 2.00 GHz,115W)
Intel® Xeon® Processor E7-4830 v4 (35M Cache, 2.00 GHz,115W)
Intel® Xeon® Processor E7-4850 v4 (40M Cache, 2.10 GHz,115W)
Intel® Xeon® Processor E7-8860 v4 (45M Cache, 2.20 GHz,140W)
Intel® Xeon® Processor E7-8867 v4 (45M Cache, 2.40 GHz,165W)
Intel® Xeon® Processor E7-8870 v4 (50M Cache, 2.10 GHz,140W)
Intel® Xeon® Processor E7-8893 v4 (60M Cache, 3.20 GHz)
Intel® Xeon® Processor E7-8890 v4 (60M Cache, 2.20 GHz,165W)
MEMORY
Select Memory Capacity:
*No Memory
Added
Enterprise-Class HDD/SSD
Select Storage Capacity:
*No Hard Drive
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
OPTICAL DRIVE
*No CD-ROM
Added
8x Slim Internal DVD-RW
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
