Please Inquire Configured Summary

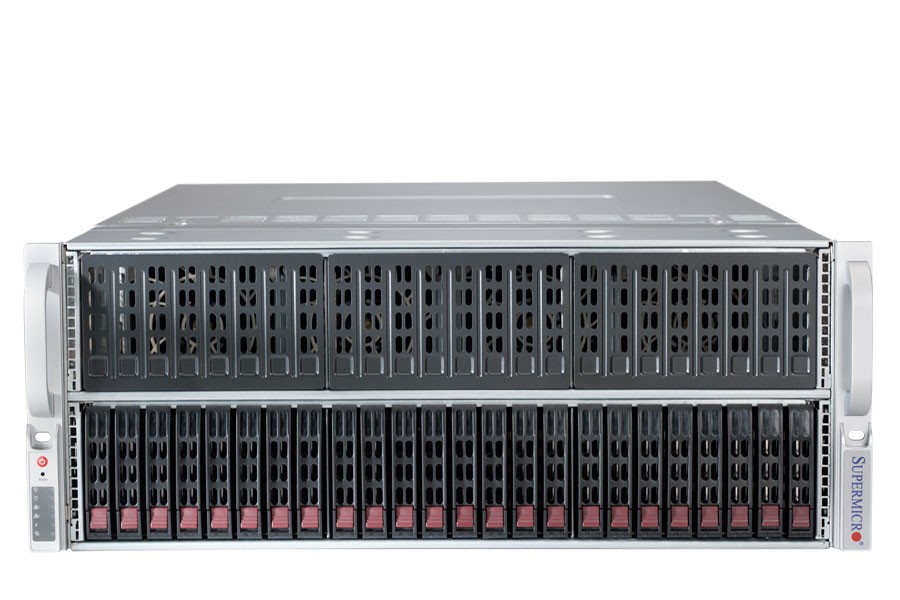

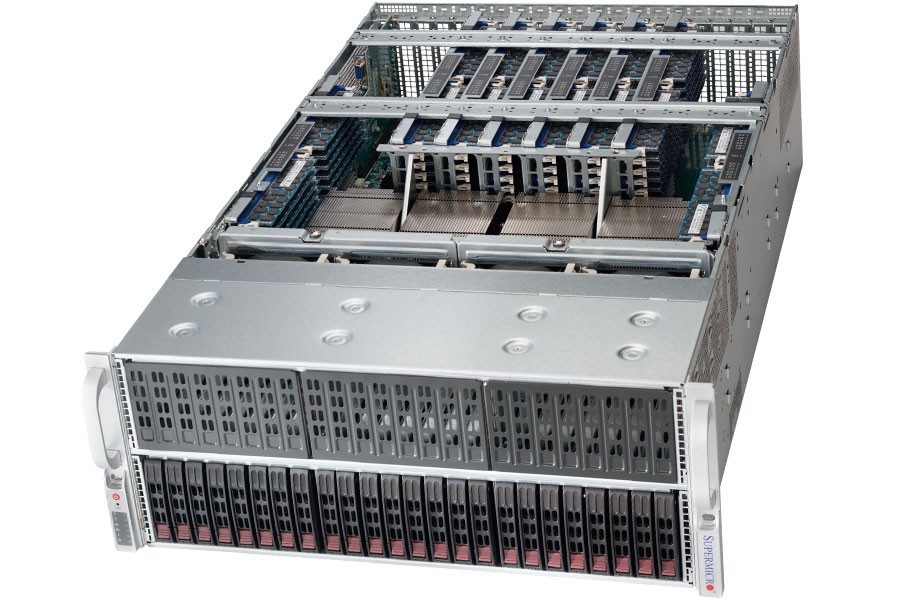

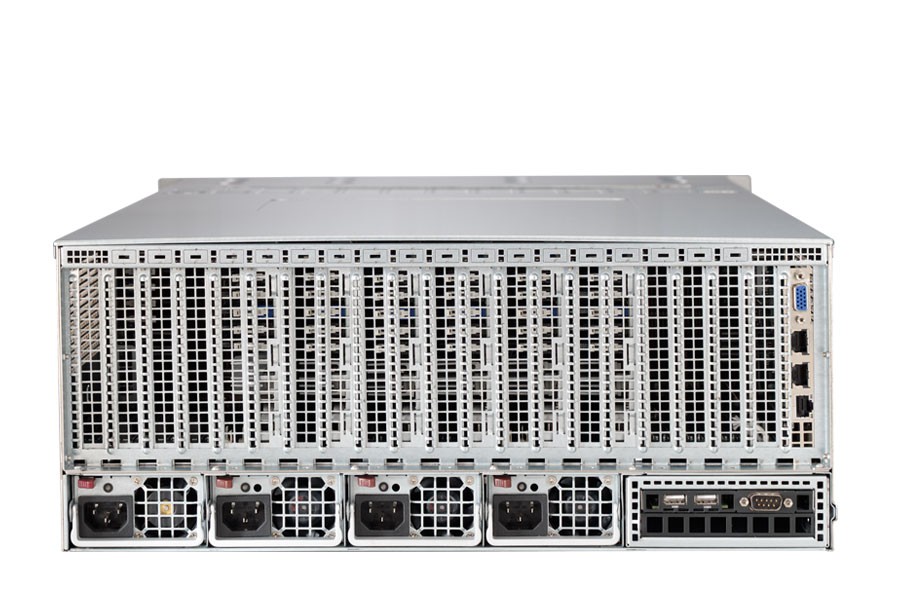

Supermicro 4U up to 48 Bays 4-Way SuperServer
  • Quad socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24-Core)
  • Up to 12TB DDR4 (128GB 3SDS LRDIMM); 96x DIMM slots (8x memory module boards: X10QBi-MEM2)
  • Up to 11x PCI-E 3.0 slots (4 x16, 7 x8)
  • I/O ports via Add-on Card: 2x 10Gb LAN, 1x Dedicated LAN for IPMI Remote Management, 1x VGA
  • 24x 2.5" Hot-swap SAS3/SATA3 HDD or SSD (selected RAID/HBA cards); 48x 2.5" Hot-swap HDD/SSD optional
  • 4x 9cm + 3x 8cm Heavy-duty Fans
  • 1620W Redundant (N+1) Power Supplies, Platinum Level (94%)
Due to the complexity of integration, this product is sold as completely assembled systems only (including but not limited to CPUs, memory, and HDDs). Please contact our sales rep for special requirements.
96/64/32 DIMMs are the recommended memory population configurations for the best performance.
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Intel® Xeon® processor E7-8800 v3 / E7-4800 v3 family (up to 18 Cores and 165W TDP)
Quad Socket R1 (LGA 2011)
Up to 45 MB
System Bus:
QPI up to 9.6 GT/s
Memory Capacity:
96x 288-pin DDR4 DIMM slots
Supports up to 6TB DDR4 ECC RDIMM/LRDIMM in 96 DIMM slots
Memory Type:
1866/1600/1333/1066/800MHz ECC DDR4 SDRAM 72-bit, 288-pin gold-plated DIMMs
DIMM Sizes:
64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage:
1.2 V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
4U Chassis
7.0" (178mm)
17.2" (437mm)
31.3" (795mm)
BIOS Type:
BIOS Features:
Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support
Onboard Devices
Intel® C602J chipset
SATA3 (6Gbps) with RAID 0, 1
SATA2 (3Gbps) with RAID 0, 1, 5, 10
Network Controllers (via AOM):
Intel® X540 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBase-T , 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
IPMI (via AOM):
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
HDD Drive Bays
24x 2.5" Hard drive bays (default)
48x 2.5" Hard drive bays (optional)
BPN-SAS3-216A direct attached backplane, system supports up to 24 HDDs by using selected RAID/HBA card and default HDD connection is onboard C602J chipset 2 SATA3 + 4 SATA2
Expansion Slots
11x PCI-E 3.0 slots w/ 48 memory slots (4x PCI-E 3.0 x16 and 7x PCI-E 3.0 x8)
8x PCI-E 3.0 slots w/ 96 memory slots (4x PCI-E 3.0 x16 and 4x PCI-E 3.0 x8)
Power Supply
1620W high-efficiency redundant power supply w/ PMBus
AC Input:

1000W Output @ 100-120V, 12-10A, 50-60Hz
1200W Output @ 120-140V, 12-10A, 50-60Hz
1620W Output @ 180-240V, 10.5-8A, 50-60Hz
DC Output:
1000W: +12V/84A; +5Vsb/4A
1200W: +12V/100A; +5Vsb/4A
1620W: +12V/150A; +5Vsb/4A
80 Plus Platinum Level Certified
Input Output
2x SATA3 (6Gbps) ports
4x SATA2 (3Gbps) ports
2x RJ45 10GBase-T ports on AOM
1x dedicated LAN port for IPMI on AOM
2x USB 2.0 ports
Serial Port / Header:
2x Fast UART 16550 ports: 1 rear and 1 header
1x DOM (Disk on Module) power connector
4x 92mm RPM Hot-Swappable Cooling Fans
3x 80mm RPM Hot-Swappable Rear Exhaust Fan
2x 80mm Rear Exhaust Fans (optional)
1x Air Shroud (MCP-310-41804-0B)
Operating Environment
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Select CPU:
*No Processor
Intel® Xeon® Processor E7-4809 v4 (20M Cache, 2.10 GHz,115W)
Intel® Xeon® Processor E7-4820 v4 (25M Cache, 2.00 GHz,115W)
Intel® Xeon® Processor E7-4830 v4 (35M Cache, 2.00 GHz,115W)
Intel® Xeon® Processor E7-4850 v4 (40M Cache, 2.10 GHz,115W)
Intel® Xeon® Processor E7-8860 v4 (45M Cache, 2.20 GHz,140W)
Intel® Xeon® Processor E7-8867 v4 (45M Cache, 2.40 GHz,165W)
Intel® Xeon® Processor E7-8870 v4 (50M Cache, 2.10 GHz,140W)
Intel® Xeon® Processor E7-8893 v4 (60M Cache, 3.20 GHz)
Intel® Xeon® Processor E7-8890 v4 (60M Cache, 2.20 GHz,165W)
Select Memory Capacity:
*No Memory
Enterprise-Class HDD/SSD
Select Storage Capacity:
*No Hard Drive
Select Operating System:
*Please contact our sales for more operating system options
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
Debian Linux (No Media) (32-Bit/64-Bit)
Linux Ubuntu LTS Workstation Edition 32/64-bit (No Media)
Linux Fedora Workstation Edition Linux 64-bit (No Media)
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Select Warranty:
*1 Year Parts Replacement Warranty
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
