8028B-TR3F
Please Inquire Configured Summary
8028B-TR3F
Supermicro 2U 6 Bays 4 Processors SuperServer

  • Quad socket R1 (LGA 2011) supports Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP)
  • Up to 2TB DDR3 (64GB LRDIMM), up to 1600MHz; 32x DIMM slots
  • 2x PCI-E 3.0 x16 Low-profile slot; 2x PCI-E 3.0 x8 Low-profile slot
  • Intel® i350 Dual port GbE LAN
  • I/O ports: 2x GbE LAN, 1x Dedicated LAN for IPMI Remote Management, 1x VGA, 1x COM port, 3x USB 2.0
  • 6x 3.5" Hot-swap SATA Drive Bays
  • 3x 8cm Heavy Duty fans w/ speed control
  • 1400W Redundant Digital PS Platinum Level (95%)

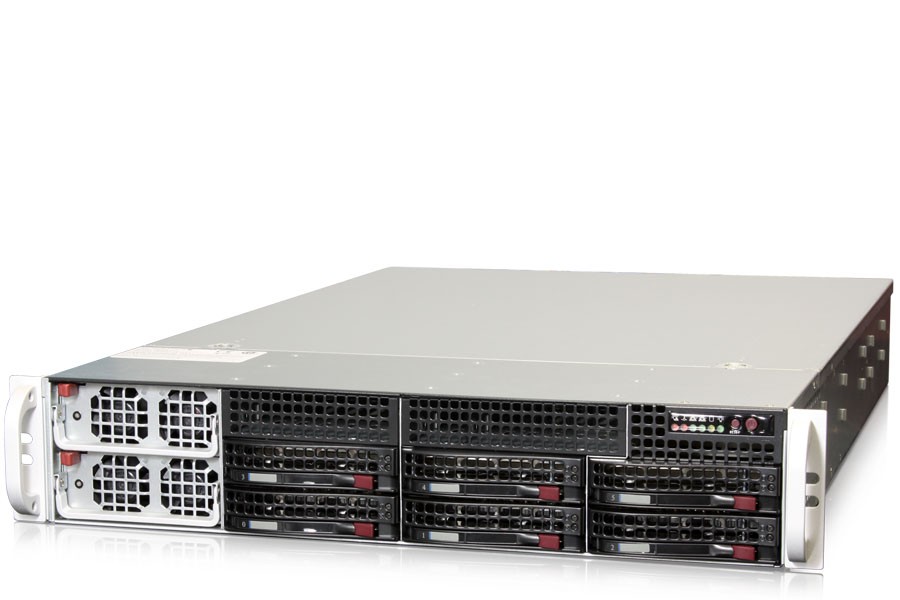

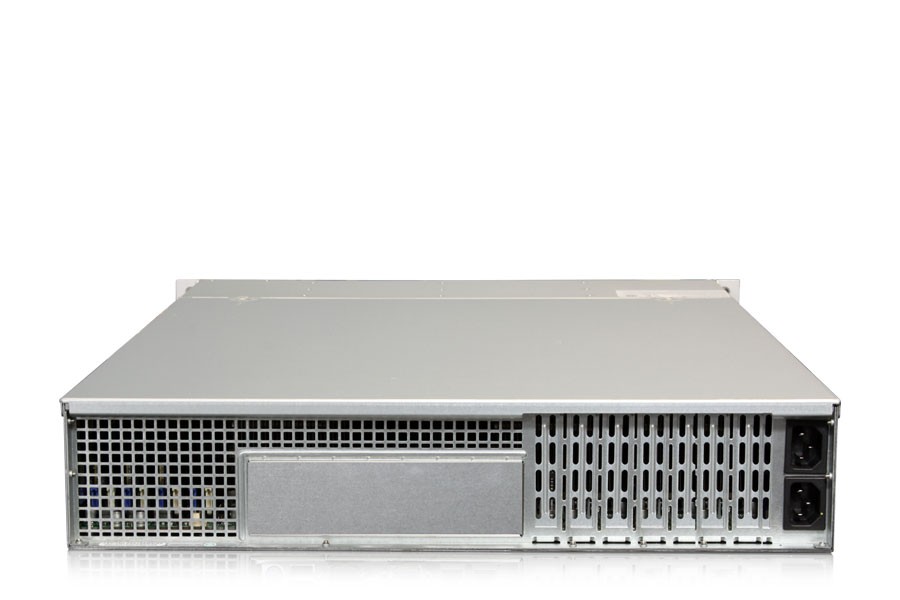

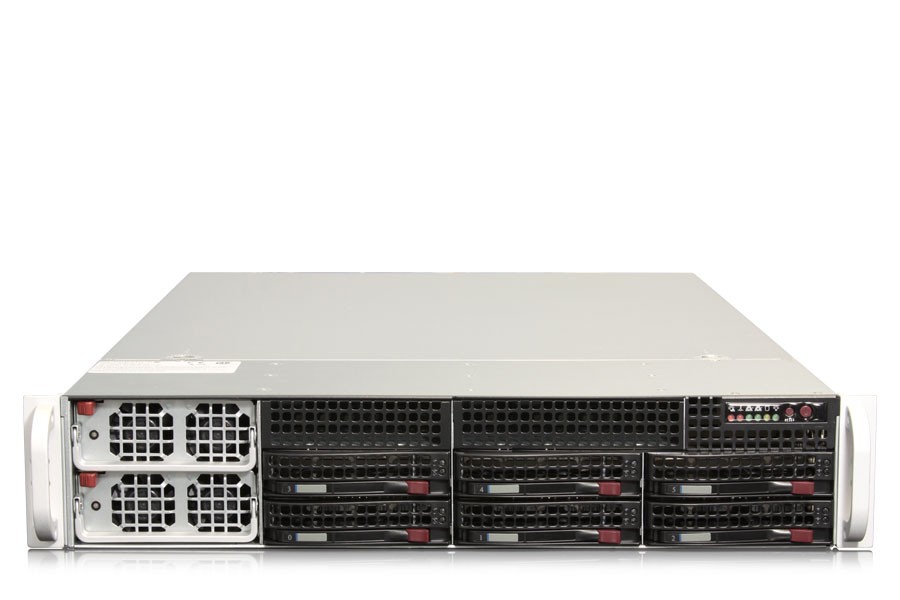

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 8028B-TR3F
Processor
CPU:
Intel® Xeon® processor E7-8800 v4/v3, E7-4800 v4/v3 family (up to 24 Cores and 165W TDP) Quad Socket R1 (LGA 2011)
Cache:
Up to 60 MB
System Bus:
QPI up to 9.6 GT/s
Note:
E7-48XX/88XX v4/v3 family or above requires Rev. 2.0x or above motherboard w/ Jordan Creek II
Memory
Memory Capacity:
32x 240-pin DDR3 DIMM slots
Supports up to 2TB DDR3 ECC LRDIMM in 32 DIMM slots
Memory Type:
1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes:
64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage:
1.5 V, 1.35 V
Error Detection:
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
Chassis
2U Chassis
Dimensions
Height:
3.5" (89mm)
Width:
17.2" (437mm)
Depth:
27.9" (709mm)
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Bios
BIOS Type:
16MB SPI Flash EEPROM with AMI® BIOS
BIOS Features:
Plug and Play (PnP)
PCI 2.2
ACPI up to 3.0
USB Keyboard support
Onboard Devices
Chipset:
Intel® C602J chipset
SATA:
SATA2 (3Gbps) with RAID 0, 1, 5, 10
SATA3 (6Gbps) with RAID 0, 1
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers:
Intel® i350 Dual port GbE LAN
Virtual Machine Device Queues reduce I/O overhead
Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201F PHY (dedicated IPMI)
Graphics:
ASPEED AST2400 BMC
HDD Drive Bays
6x 3.5" Hot-swap Drive Bays
Optical Drive
1x Slim DVD-ROM (Optional)
Expansion Slots
2x PCI-E 3.0 x16 Low-profile slot
2x PCI-E 3.0 x8 Low-profile slot
Power Supply
Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage:
100-240 V, 50-60 Hz, 15 Amp max
+12V:
100 Amp/115 Vac
117 Amp/230 Vac
With Power Distributor:
+5V: 30 Amp
+3.3V: 25 Amp
-12V: 0.6 Amp
Certification:
80 plus Platinum Level Certified
Input Output
SATA:
2x SATA3 (6Gbps) ports
4x SATA2 (3Gbps) ports
LAN:
2x RJ45 Gigabit Ethernet LAN ports
1x dedicated LAN port for IPMI
USB:
3x USB 2.0 rear ports
Video:
1x VGA Port
Serial Port / Header:
1 Fast UART 16550 serial port
Cooling
Fans:
3x 8cm Hot-swap Cooling fans
Shroud:
1x Air Shroud
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
8028B-TR3F8028B-TR3F8028B-TR3F
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
*No Processor
Added
Intel® Xeon® Processor E7-4809 v4 (20M Cache, 2.10 GHz,115W)
Intel® Xeon® Processor E7-4820 v4 (25M Cache, 2.00 GHz,115W)
Intel® Xeon® Processor E7-4830 v4 (35M Cache, 2.00 GHz,115W)
Intel® Xeon® Processor E7-4850 v4 (40M Cache, 2.10 GHz,115W)
Intel® Xeon® Processor E7-8860 v4 (45M Cache, 2.20 GHz,140W)
Intel® Xeon® Processor E7-8870 v4 (50M Cache, 2.10 GHz,140W)
Intel® Xeon® Processor E7-8867 v4 (45M Cache, 2.40 GHz,165W)
Intel® Xeon® Processor E7-8893 v4 (60M Cache, 3.20 GHz)
Intel® Xeon® Processor E7-8890 v4 (60M Cache, 2.20 GHz,165W)
MEMORY
Select Memory Capacity:
*No Memory
Added
4GB DDR3 1600MHz ECC Registered Memory
8GB DDR3 1600MHz ECC Registered Memory
16GB DDR3 1600MHz ECC Registered Memory
HARD DISK WD/Seagate/HGST Enterprise-Class
Select Storage Capacity:
*No Hard Drive
Added
3.5" SATA 6Gb/s 7200RPM 1TB
3.5" SATA 6Gb/s 7200RPM 2TB
3.5" SATA 6Gb/s 7200RPM 3TB
3.5" SATA 6Gb/s 7200RPM 4TB
3.5" SATA 6Gb/s 7200RPM 6TB
3.5" SATA 6Gb/s 7200RPM 8TB
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
Debian Linux (No Media) (32-Bit/64-Bit)
Linux Ubuntu LTS Workstation Edition 32/64-bit (No Media)
Linux Fedora Workstation Edition Linux 64-bit (No Media)
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
3 Year Parts Replacement Warranty - Server Value Over $10000
