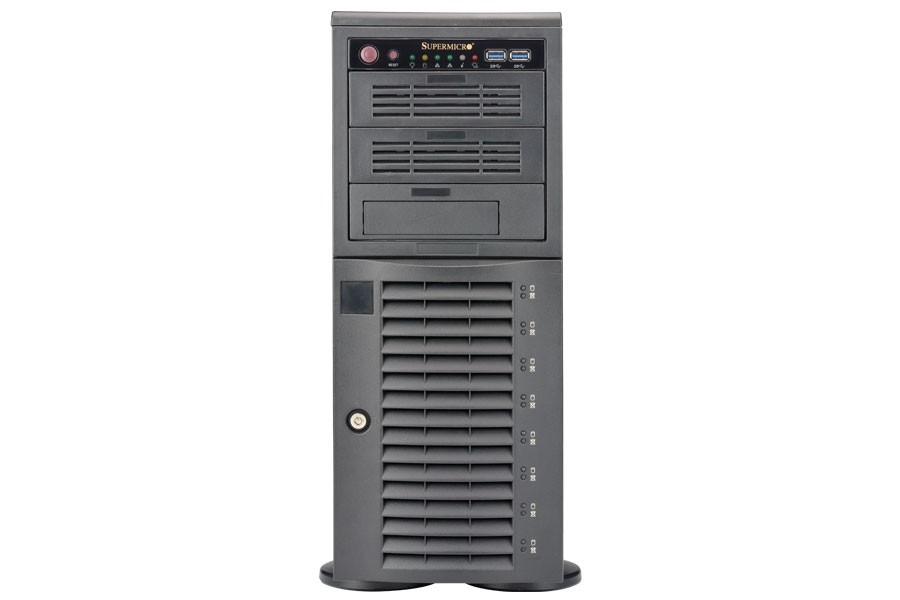

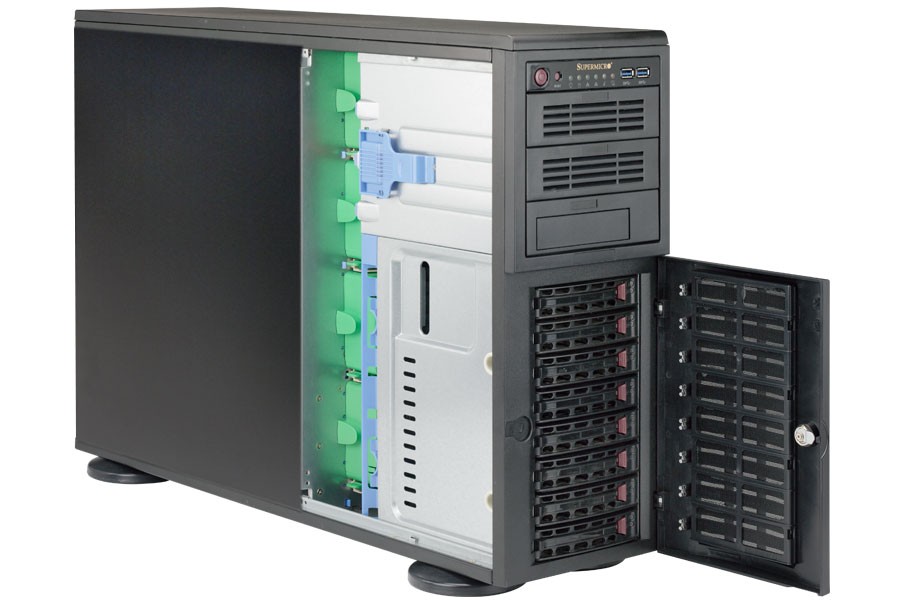

Supermicro 4U / Tower 8 Bays Dual Processor SuperServer
- Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 / v3 family; QPI up to 9.6GT/s
- Up to 2TB† ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
- 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots
- Intel® X540 Dual port 10GBase-T
- Intel C612 controller for 8 SATA3 ports; RAID 0, 1, 5, 10
- 8x 3.5" Hot-swap SATA3 HDD Bays
- 920W Redundant Power Supplies Platinum Level (94%)
- Cloud and Virtualization needs, Compute Intensive Application, Database Processing and Storage, High Availability Storage, Mission-critical Applications
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | 7048R-TRT |
| Processor | CPU:
Intel® Xeon® processor E5-2600 v4 / v3 family (up to 145W TDP) Dual Socket R3 (LGA 2011) Cores / Cache: Up to 22 Cores / Up to 55MB Cache System Bus: QPI up to 9.6 GT/s Note: BIOS version 2.0 or above is required Please contact sales for additional information about frequency optimized CPUs and specialized system optimization. |
| Memory | Memory Capacity:
16x 288-pin DDR4 DIMM slots Up to 2TB ECC 3DS LRDIMM, 512 ECC RDIMM Memory Type: 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit DIMM Sizes: RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB Memory Voltage: 1.2 V Error Detection: Corrects single-bit errors |
| Chassis | 2U Rackmount
|
| Dimensions | Height:
17.2" (437mm) Width: 7.0" (178mm) Depth: 25.5" (648mm) Available Colors: Black |
| Front Panel | Buttons:
Power On/Off button System Reset button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power Fail LED Ports: 2x USB Ports |
| Bios | BIOS Type:
128Mb SPI Flash EEPROM with AMI® BIOS BIOS Features: Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1 |
| Onboard Devices | Chipset:
Intel® C612 Express chipset SATA: SATA 3.0 (6Gbps) with RAID 0, 1, 5, 10 IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC Network Controllers: Intel® X540 Dual Port 10GBase-T Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) Video: ASPEED AST2400 BMC |
| HDD Drive Bays | Hot-swap:
8x 3.5" Hot-swap SAS/SATA Drive Trays Peripheral Bay(s) [90o Rotatable]: 2x 5.25" Peripheral Drive Bays 1x 5.25" Bay that fits 3.5" bay devices |
| Expansion Slots | 3x PCI-E 3.0 x16 (Full-height, Full-length)
3x PCI-E 3.0 x8 (Full-height, Full-length) |
| Power Supply | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input: 100-240 V, 50-60 Hz, 11-4.5 Amp DC Output: 4 Amp @ +5V standby 75 Amp @ +12V Certification: 80 Plus Platinum Certified |
| Input Output | SATA:
8x SATA3 (6Gbps) ports 2x SATA3 powered ports that support SATA DOM LAN: 2x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port USB: Rear USB: 2x USB 3.0 + 2x USB 2.0 Front USB: 2x USB 2.0 USB Header: 2x 3.0, 2x 2.0, 1x Type A Video: 1x VGA port Serial Port / Header: 1x COM/Serial |
| Cooling | 3x 8cm hot-swap redundant PWM cooling fans
2x 8cm hot-swap exhaust Fans and air shroud |
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Details | PC Health Monitoring
CPU:
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. 6-Phase-switching voltage regulator FAN: Total of eight fan headers supporting up to 8 fans 8x fans with tachometer status monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x fan connectors Thermal Monitor 2 (TM2) support PECI LED: CPU / System Overheat LED Suspend static indicator LED UID/Remote LED Other Features: Chassis intrusion detection Chassis intrusion header |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
*No Processor
Added
MEMORY
Select Memory Capacity:
*No Memory
Added
Enterprise-Class HDD/SSD
Select Storage Capacity:
*No Hard Drive
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
+ $129.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $172.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $199.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $249.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $299.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $302.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $348.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $376.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $429.00
OPTICAL DRIVE
*No CD-ROM
Added
5.25" SATA 24x DVDRW DVDR DL Double Layer Internal Drive
+ $30.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
