7048R-TR
$1,316.00 Configured Summary
7048R-TR
Supermicro 4U / Tower 8 Bays Dual Processor SuperServer

  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 / v3 family; QPI up to 9.6GT/s
  • Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots
  • 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots
  • Intel® i350 Dual port GbE LAN
  • Intel C612 controller for 8 SATA3 ports; RAID 0, 1, 5, 10
  • 8x 3.5" Hot-swap SATA3 HDD Bays
  • 920W Redundant Power Supplies Platinum Level (94%)
  • Cloud and Virtualization needs, Compute Intensive Application, Database Processing and Storage, High Availability Storage, Mission-critical Applications,

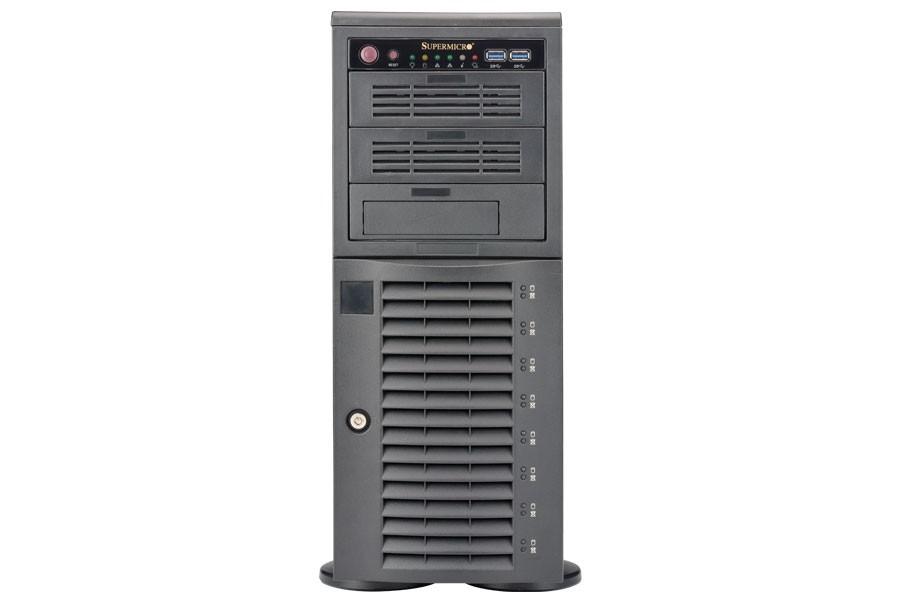

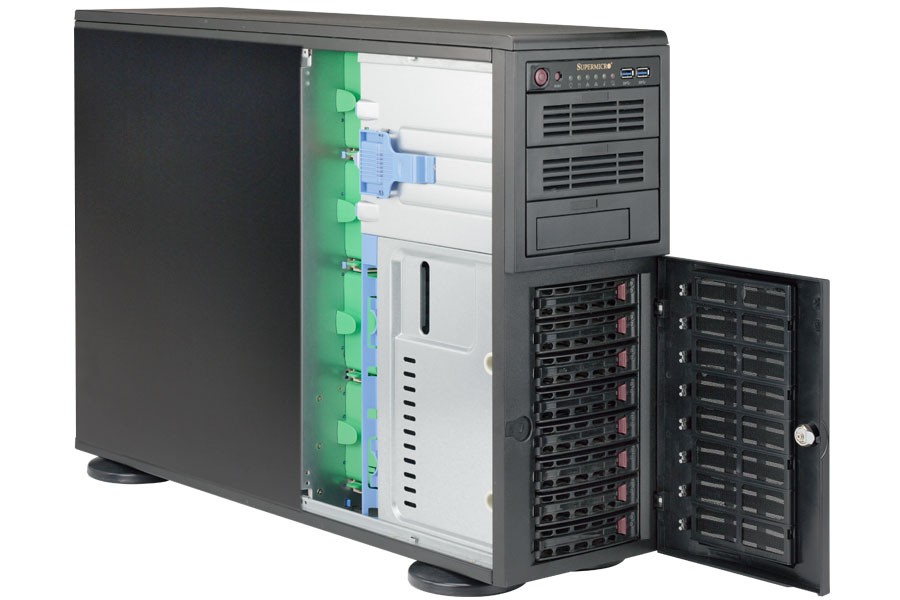

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU 7048R-TR
Processor
CPU:
Intel® Xeon® processor E5-2600 v4 / v3 family (up to 145W TDP)
Dual Socket R3 (LGA 2011)
Cores / Cache:
Up to 22 Cores / Up to 55MB Cache
System Bus:
QPI up to 9.6 GT/s
Note:
BIOS version 2.0 or above is required
Please contact sales for additional information about frequency optimized CPUs and specialized system optimization.
Memory
Memory Capacity:
16x 288-pin DDR4 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type:
2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes:
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
3DS LRDIMM: 128GB
Memory Voltage:
1.2 V
Error Detection:
Corrects single-bit errors
Chassis
4U Rackmount/ Tower
Dimensions
Height:
17.2" (437mm)
Width:
7.0" (178mm)
Depth:
25.5" (648mm)
Available Colors:
Black
Front Panel
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power Fail LED
Ports:
2x USB Ports
Bios
BIOS Type:
128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features:
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Onboard Devices
Chipset:
Intel® C612 Express chipset
SATA:
SATA 3.0 (6Gbps) with RAID 0, 1, 5, 10
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers:
Intel® i350 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Video:
ASPEED AST2400 BMC
HDD Drive Bays
Hot-swap:
8x 3.5" Hot-swap SAS/SATA Drive Trays
Peripheral Bay(s) [90o Rotatable]:
2x 5.25" Peripheral Drive Bays
1x 5.25" Bay that fits 3.5" bay devices
Expansion Slots
3x PCI-E 3.0 x16 (Full-height, Full-length)
3x PCI-E 3.0 x8 (Full-height, Full-length)
Power Supply
920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input:

100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output:
4 Amp @ +5V standby
75 Amp @ +12V
Certification:
80 plus Platinum Certified
Input Output
SATA:
8x SATA3 (6Gbps) ports
2x SATA3 powered ports that support SATA DOM
LAN:
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB:
Rear USB: 2x USB 3.0 + 2x USB 2.0
Front USB: 2x USB 2.0
USB Header: 2x 3.0, 2x 2.0, 1x Type A
Video:
1x VGA port
Serial Port / Header:
1x COM/Serial
Cooling
3x 8cm hot-swap redundant PWM cooling fans
2x 8cm hot-swap exhaust Fans and air shroud
Operating Environment
RoHS:
RoHS Compliant
Environmental Spec.:
Operating Temperature:
   10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)
7048R-TR7048R-TR
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
*No Processor
Added
MEMORY
Select Memory Capacity:
*No Memory
Added
Enterprise-Class HDD/SSD
Select Storage Capacity:
*No Hard Drive
Added
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
+ $129.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $172.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $199.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $249.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $299.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $302.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 14TB
+ $348.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 16TB
+ $376.00
WD Ultrastar 3.5" SAS 12Gb/s 7200 RPM HDD 18TB
+ $429.00
OPTICAL DRIVE
*No CD-ROM
Added
5.25" SATA 24x DVDRW DVDR DL Double Layer Internal Drive
+ $30.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
