ARC-1883X
$897.00 Configured Summary
ARC-1883X

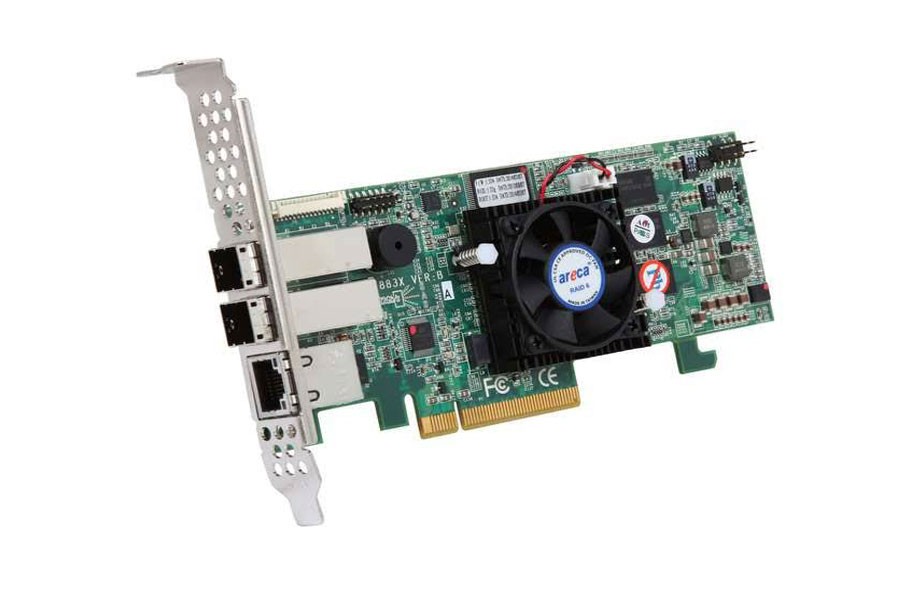

Areca ARC-1883X 12Gb/s 8-Port Ext. PCI-Express 3.0 x8 SAS RAID Adapter

  • 0, 1,1E, 3, 5, 6, 10, 30, 50, 60 or JBOD
  • 2 x SFF-8644 mini-SAS HD External Connectors
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU ARC-1883X
Details
General
Brand:
areca
Model:
ARC-1883X

Specifications
Type:
SAS
External Connectors:
2 x SFF-8644 mini-SAS HD
Interface:
PCI-Express 3.0 x8
Cache Memory:
2GB on-board DDR3-1866 SDRAM
RAID:
0, 1,1E, 3, 5, 6, 10, 30, 50, 60 or JBOD
Operating Systems Supported
Windows 8/Server2012/7/2008/Vista/Server 2003/XP
Linux
FreeBSD
VMware (only driver package available w/o management utility)
Solaris 10/11 x86/x86_64
Mac OS X 10.4.x/10.5.x/10.6.x/10.7.x/10.8.x/10.9.x
Dimensions:
169.5mm x 64.4mm

Features
Dual Core RAID-on-Chip 1.2 GHz
Write-through or write-back cache support
Multi-adapter support for large storage requirements
Supports up to 256 SATA or SAS devices using SAS expanders
12Gb/s throughput at each drive ports
Boot support for the uEFI host BIOS
NVRAM for RAID event & transaction log
Redundant flash image for controller availability
ARC-1883X
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
BBU
ARC-6120BA-T121-12G BBU for RAID ARC-1883 series
+ $150.00
