$1,173.00 Configured Summary

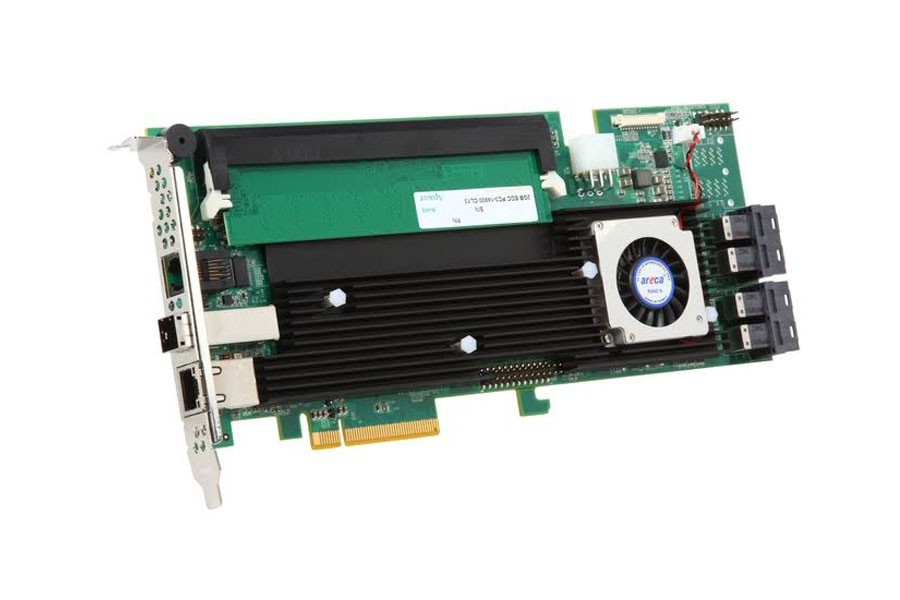

Areca ARC-1883ix-12-2G 12GB/s 12-Port Int. 4-Port Ext. PCI-Express 3.0 x8 SAS RAID Adapter
  • 0, 1,1E, 3, 5, 6, 10, 30, 50, 60 or JBOD
  • 3 x SFF-8643 1 x SFF-8644 Internal Connectors
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
SKU ARC-1883ix-12-2G

Internal Connectors:
3 x SFF-8643
1 x SFF-8644
PCI-Express 3.0 x8
Cache Memory:
2GB on-board DDR3-1866 SDRAM
0, 1,1E, 3, 5, 6, 10, 30, 50, 60 or JBOD
Operating Systems Supported:
Windows 8/Server2012/7/2008/Vista/Server 2003/XP
VMware (only driver package available w/o management utility)
Solaris 10/11 x86/x86_64
Mac OS X 10.4.x/10.5.x/10.6.x/10.7.x/10.8.x/10.9.x
254 x 98.4 mm
12 Port internal + 4port external PCIe3.0 x8 Lanes, Dual Core RAID-on-Chip 1.2 GHz;
12G SAS2 Raid Adapter, 2GB on-board DDR3-1866 Cache, max. 8GB.
Up to 256 12Gb/s SAS or 5Gb/s and 3Gb/s SAS/SATA HDDs/SSD, using 12Gb/s SAS expander, 3x - Internal HD MiniSAS (SFF-8643 Port), 1x External HD MiniSAS (SFF-8644);
No Cable
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
Cache Memory
ARC-5404GB 4GB Memory Upgrade for ARC-1883ix-12 / 16 / 24
+ $111.00
ARC-5408GB 8GB Memory Upgrade for RAC-1883ix-12 / 16 / 24
+ $203.00
ARC-6120BA-T121-12G BBU for RAID ARC-1883 series
+ $150.00
