AIC 1U 2Bays Hot-swap 2.5" HDD NEBS/Telco Appliance Server
Intel® 3420 chipset to support one Intel® Xeon® Processor 3400 series
Flexible I/O usage with Max I/O™ to support up to 3 COTS PCIe Gen2 cards
Front-to-back airflow and easy-swap redundant fan design provide optimal thermal conditions
Customizable to meet your requirements
2 x server Class GbE ports
Onboard Baseboard Management Controller for system management and IPMI control
Flexible I/O usage with Max I/O™ to support up to 3 COTS PCIe Gen2 cards
Front-to-back airflow and easy-swap redundant fan design provide optimal thermal conditions
Customizable to meet your requirements
2 x server Class GbE ports
Onboard Baseboard Management Controller for system management and IPMI control

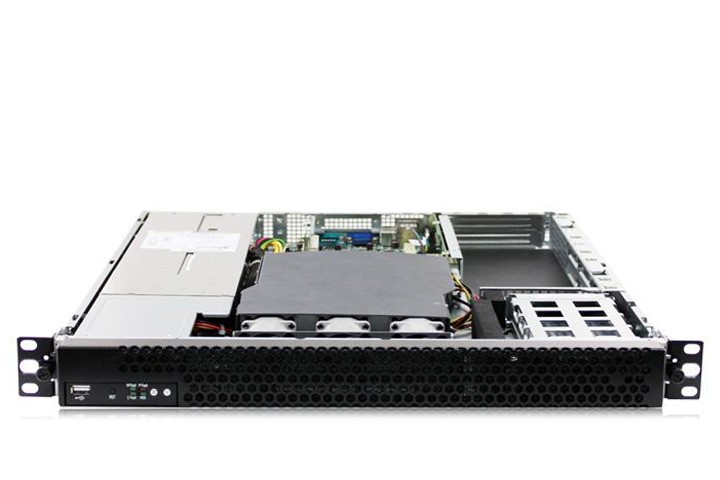

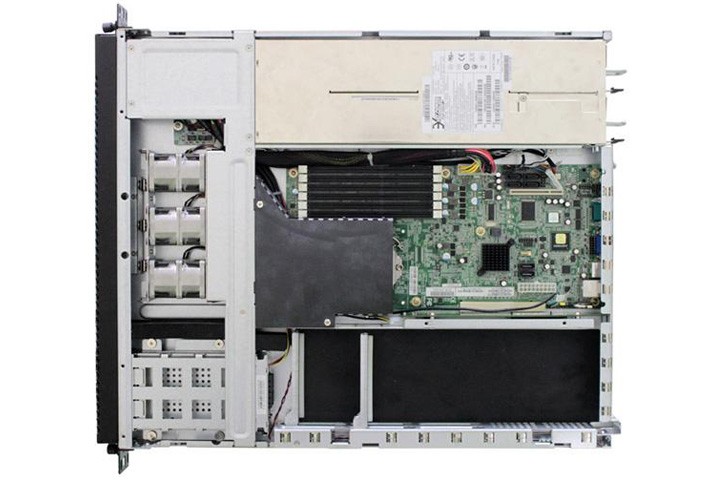

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | TB116-AL |
| Processor | Processor:
1x Intel® Xeon® Processor 3400 Series, Previous Generation Intel® Core™ i3 Processor, Intel® Pentium® Processor G6950 or Intel® Celeron® Processor G1101 System Bus: 1066/1333 MHz Socket Type: FCLGA1156 (Socket H) |
| Memory | 6 x DIMM slots support DDR3 800/1066/1333 MHz
Registered ECC (recommended) or Unbuffered ECC SDRAM Up to 16GB DDR3 support with RDIMM (6) for Lynnfield processor Up to 8GB DDR3 support with UDIMM (4) for Clarkdale processor |
| Chassis | 1U Barebone
|
| Dimensions | 19"(W) x 21"(D) x 1.7"(H)
|

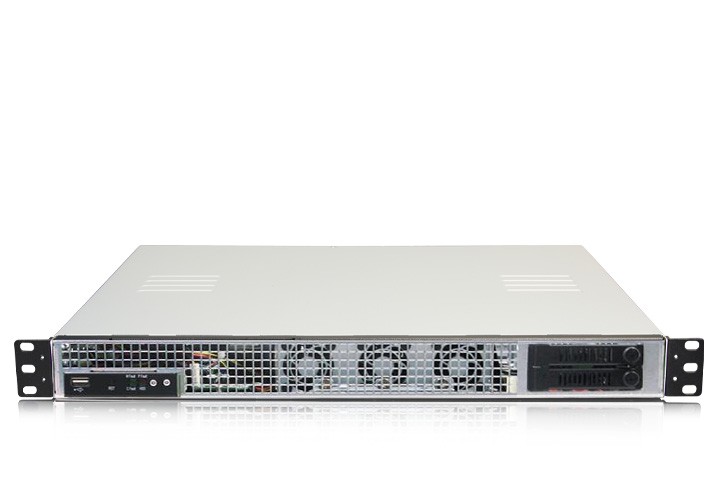

| Front Panel | Buttons:
Power on/off System reset System ID 1 x USB LEDs: Power System ID Hard drive activity System management alert Network activity |
| Bios | BIOS Type:
AMI BIOS SPI (Serial Peripheral Interface) FLASH Interface BIOS Features: ACPI 1.0/2.0/3.0 PXE 2.0 WOL AC loss recovery IPMI KCS interface SMBIOS 2.0 Serial console redirection USB legacy boot |
| Onboard Devices | SATA:
Built-in SATA2 controller with RAID support IPMI: Aspeed AST2050 Mainstream PCI Graphics and Remote Management Processor Baseboard Management Controller (BMC) Intelligent Platform Management Interface 2.0 (IPMI 2.0) iKVM, Media re-direction, IPMI over LAN, Serial over LAN SMASH support Network Controllers: Intel® 82574L Gigabit Ethernet Controller, single port, PCIe Intel® 82578DM Gigabit Ethernet PHY, single port, 1 Gbps Graphics: Aspeed AST2050 Mainstream PCI Graphics and Remote Management Processor 2D video graphics adapter with PCI bus interface 8MB of system memory 1600x1200 @ 60Hz Super I/O: Winbond W83627DHG |
| HDD Drive Bays | 2x 2.5" hot-swap SATA/SAS/SSD HDD bays
|
| Expansion Slots | 2x PCIe x8 (full-length, full-height)
|
| Power Supply | 450W 1+1 redundant high efficiency 80+ power supply unit
90-264VAC, 47-63Hz |

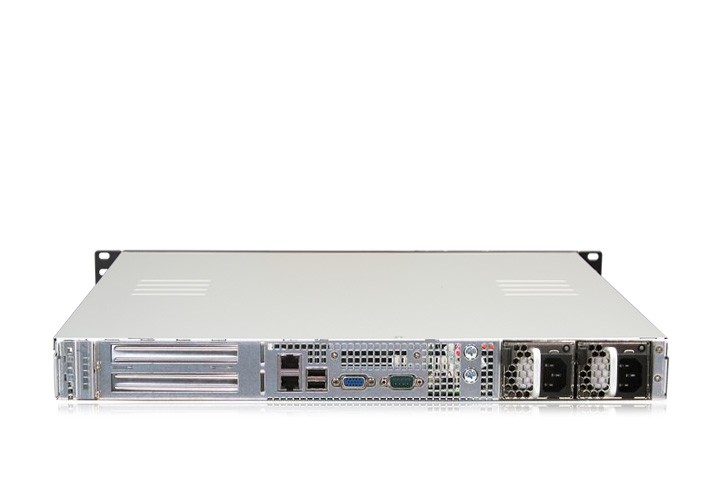

| Input Output | Rear I/O:
LAN: 2x RJ45 ports USB: 2x USB ports VGA: 1x external VGA port Serial Port: 1x external DB-9 serial port |
| Cooling | 3x 40x56mm easy-swap redundant fans
|
| Operating Environment | Operating temp:
0 – 40°C
Operating altitude condition: 0 – 10K feet
Storage temp: -20°C – 60°C
System relative humidity: 5% to 95% (38°C) non-condensing
|
| Details | System Management:
IPMI 2.0 compliance KVM over IP Media redirection Temperature, fan, voltage, PSU sensor monitor CPU temperature (PECI) System temperature Fan speed detection Smart fan speed control System ID / System fail indicator SMASH support Remote power on/off/reset SEL message alarm through mail SNMP support Riser Card: PSG-RC-AR1U-20-XXX (PSG Code: PE1U03) 1U Gold finger PCIe x 16 to 2 PCIe x 8 riser for Aquila |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
*No Processor
Added
Intel® Xeon® Processor X3430 (8M Cache, 2.40 GHz)
+ $208.00
Intel® Xeon® Processor X3450 (8M Cache, 2.66 GHz)
+ $258.00
Intel® Xeon® Processor X3470 (8M Cache, 2.93 GHz)
+ $282.00
MEMORY
Select Memory Capacity:
*No Memory
Added
Enterprise-Class HDD/SSD
Select Storage Capacity:
*No Hard Drive
Added
Samsung PM897 2.5" SATA 6Gb/s SSD 960GB
+ $218.00
Samsung PM897 2.5" SATA 6Gb/s SSD 1.92TB
+ $311.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
