OPEN BOX SuperMicro 1U 6 Bays GPU SuperServer
( 2 Pcs in Stock)

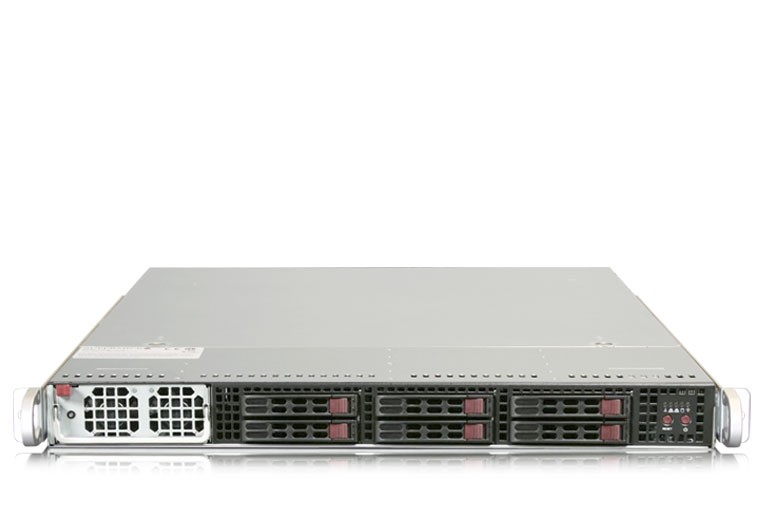

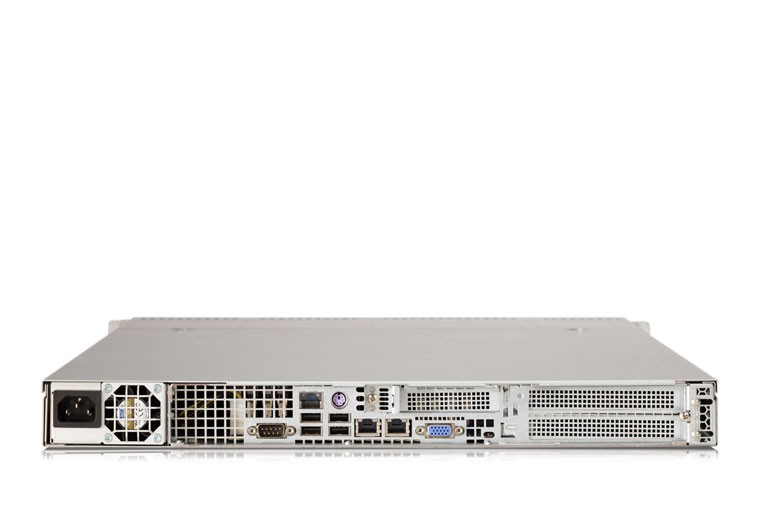

Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | 1017GR-TF |
| Processor | CPU:
Single Socket R (LGA 2011) Intel® Xeon® processor E5-2600 and E5-2600 v2 family (up to 12 cores and up to 130W) Note: BIOS version 3.0 or above is required Cache: Up to 30MB System Bus: QPI up to 8 GT/s GPU/Xeon Phi Support: M2075/M2090, up to 130W CPU at 35°C K10/K20/K20X (Kepler), up to 130W CPU at 35°C |
| Memory | Memory Capacity:
8x 240-pin DDR3 DIMM sockets Up to 512GB DDR3 ECC LRDIMM Up to 256GB DDR3 ECC Registered memory (RDIMM) Memory Type: 1866/1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes: 32GB, 16GB, 8GB, 4GB, 2GB, 1GB Memory Voltage: 1.5 V, 1.35 V Error Detection: Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| Chassis | 1U Rackmount
|
| Dimensions | Height:
1.7" (43mm) Width: 17.2" (437mm) Depth: 28.5" (724mm) Gross Weight: 41.4 lbs (18.8 kg) Available Color: Black |
| Front Panel | Buttons:
Power On/Off button System Reset button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED / UID LED |
| Bios | BIOS Type:
64Mb SPI Flash EEPROM with AMI® BIOS BIOS Features: Plug and Play (PnP) APM 1.2 DMI 2.3 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.3 UEFI RTC (Real Time Clock) Wakeup |
| Onboard Devices | Chipset:
Intel® C602 Chipset SATA: Intel ICH10R SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC Network Controllers: Intel® i350 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Graphics: Matrox G200eW Super I/O: Nuvoton W83527 |
| HDD Drive Bays | 6x 2.5" Hot-swap drive bays
|
| Expansion Slots | 2x PCI-E 3.0 x16 slots
(support GPU/Xeon Phi cards) 1x PCI-E 3.0 x8 slot for I.B. card AOC Compatibility Matrix |
| Power Supply | 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
AC Voltage: 1200W: 100-140 V, 14.7-10.5A, 50-60 Hz 1400W: 180-240 V, 10.5-8.0A, 50-60 Hz +5V standby: 6 Amp +12V: 100 Amp/115 Vac 117 Amp/230 Vac With Power Distributor: +5V: 14 Amp Certification: 80+ Platinum Certified |
| Input Output | SATA:
2 SATA 3.0 ports (6Gbps) 4 SATA 2.0 ports (3Gbps) LAN: 2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port USB: 6 USB 2.0 ports total (2 rear + 4 via headers) Video: 1 VGA Connector Keyboard/Mouse: 1 PS/2 Keyboard/Mouse port Serial Port: 1 Serial header DOM: 1 DOM (Disk on Module) power connector |
| Cooling | 8x counter-rotating fans with optimal fan speed control
|
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Included Items | Motherboard / Chassis:

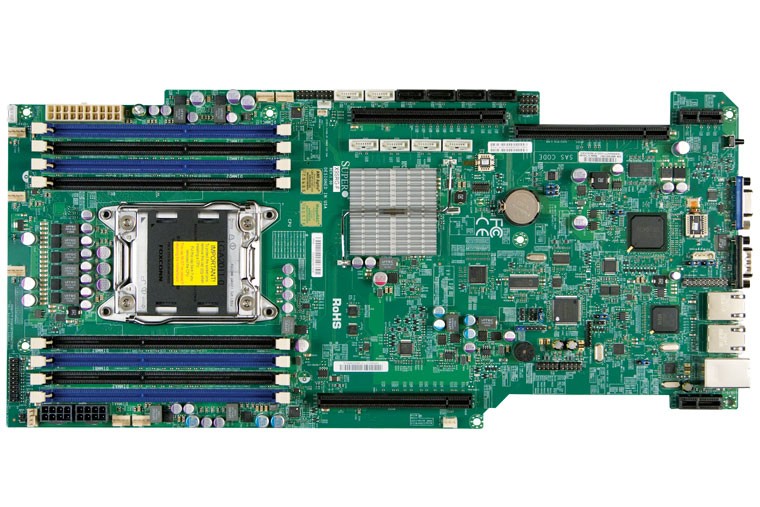

1x MBD-X9SRG-F 1x CSE-118G-1K43B Backplane: 1x BPN-SAS-118TQ Cable 1: 1x CBL-0157L-01 Cable 2: 2x CBL-0333L Cable 3: 1x CBL-0157L Cable 4: 2x CBL-0228L Cable 5: 2x CBL-0230L Cable 6: 2x CBL-0226L Riser Card: 1x RSC-R1UG-E16-UP Riser Card: 1x RSC-R1U-E16R Riser Card: 1x RSC-R1UG-E16R-UP Heatsink / Retention: 1x SNK-P0047PS Power Supply: 1x PWS-1K43F-1R Cable 7: 1x CBL-0087 Cable 8: 1x CBL-0160L Fan 1: 8x FAN-0141L4 Drive Tray(s): 6x MCP-220-00047-0B Mounting Rails: 1 set MCP-290-00054-0N |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
