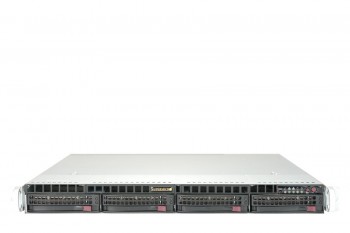

Supermicro 1U 4Bays Single Processor Rackmount Server
- Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
- Intel® C246 chipset
- Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots
- 1x PCI-E 3.0 x16 or 2 PCI-E x8, 1x PCI-E 3.0 x4 (in x8) slot
- 4x Hot-swap 3.5" drive bays
- M.2 Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4, M.2 Form Factor: 2260/2280/22110, M.2 Key: M-Key

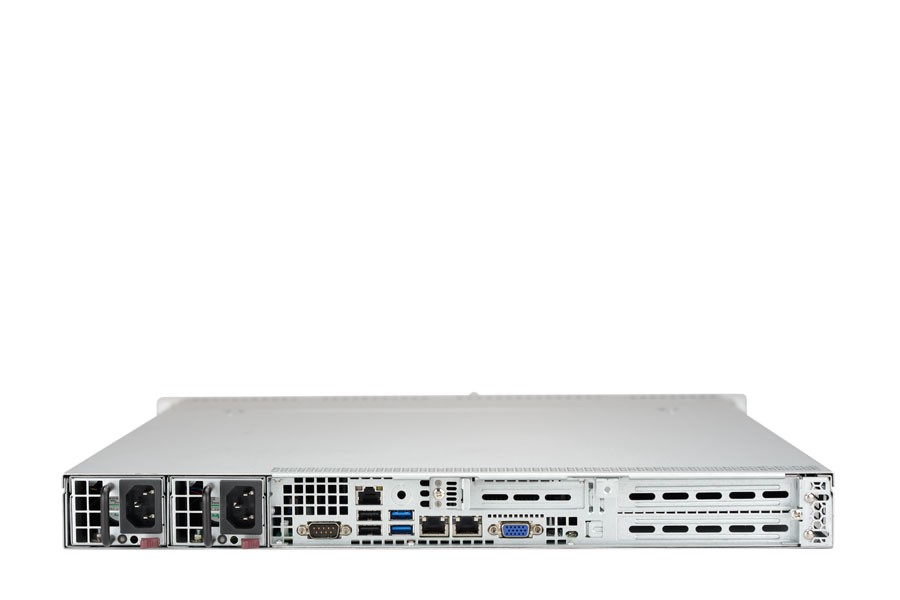

- 2x GbE LAN ports, 1x dedicated IPMI LAN
- 2x USB 3.1 (rear), 2x USB 2.0 (rear)
- 1x VGA, 2x COM, 1x TPM header
- 500W High efficiency (96%) Redundant PSU, 54.5mm wide; Platinum Level
- HA, High flexibility, VM, Communication, Application and data serving, Appliance Server
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
| SKU | 5019C-WR |
| Processor | CPU:
Single Socket H4 (LGA 1151), CPU TDP support up to 95W Support Intel® Xeon® Processor E-2100 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors Cores: 6 cores, 12 threads |
| Memory | Memory Capacity:
4x DIMM slots Up to 128GB Unbuffered ECC UDIMM Up to DDR4-2666MHz Memory Type: 2666/2400/2133MHz ECC DDR4 SDRAM DIMM Sizes: 32GB, 16GB, 8GB, 4GB Note: 128GB system memory capacity will be available in 2019 through a published BIOS update. |
| Chassis | 1U Rackmount Chassis
|
| Dimensions | Height:
1.7" (43mm) Width: 17.2" (437mm) Depth: 25.6" (650mm) |

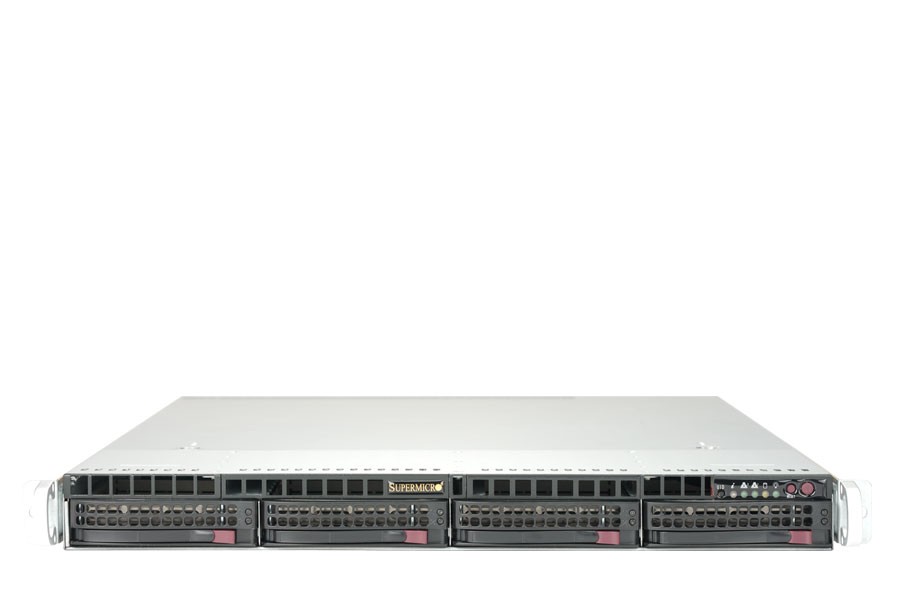

| Front Panel | Buttons:
Power On/Off button System Reset button UID button LEDs: Power LED Hard drive activity LED Network activity LEDs System Information LED |
| Bios | BIOS Type:
UEFI 256Mb BIOS Features: ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0 |
| Onboard Devices | Chipset:
Intel® C246 chipset SATA: SATA3 (6Gbps) via Intel C246 controller RAID 0, 1, 5, 10 support IPMI: ASPEED AST2500 Network Controllers: Dual LAN with Intel® I210-AT Video: ASPEED AST2500 BMC |
| HDD Drive Bays | 4 Hot-swap 3.5" drive bays
|
| Expansion Slots | PCI-Express:
1x PCI-E 3.0 x16 or 2x PCI-E x8 slots 1x PCI-E 3.0 x4 (in x8) slot M.2: M.2 Interface: 1x SATA/PCI-E 3.0 x4 and 1x PCI-E 3.0 x4 M.2 Form Factor: 2260/2280/22110 M.2 Key: M-Key |
| Power Supply | 500W Redundant Power Supplies with PMBus
Total Output Power: 500W Dimension (W x H x L): 54.5 x 40.25 x 320 mm Input: 100-240Vac, 50-60Hz, 6.1-2.6A +12V: Max: 42A / Min: 0.5A +5Vsb: Max: 4A / Min: 0A Output Type: Gold Finger Connector Mating with Molex 45984-4343 With Power Distributor: +5V: 25A +3.3V: 12A -12V: 0.6A Certification: UL/cUL/CB/CE/BSMI/CCC Platinum Certified |
| Input Output | SATA:
6x SATA3 (6Gbps) ports; RAID 0, 1, 5, 10 LAN: 2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port USB: 2x USB 3.1 ports (rear) 2x USB 2.0 ports (rear) Video: 1x VGA port Serial Port / Header: 1x COM port (header), 1x COM port (rear) TPM: 1x TPM 2.0 Header |

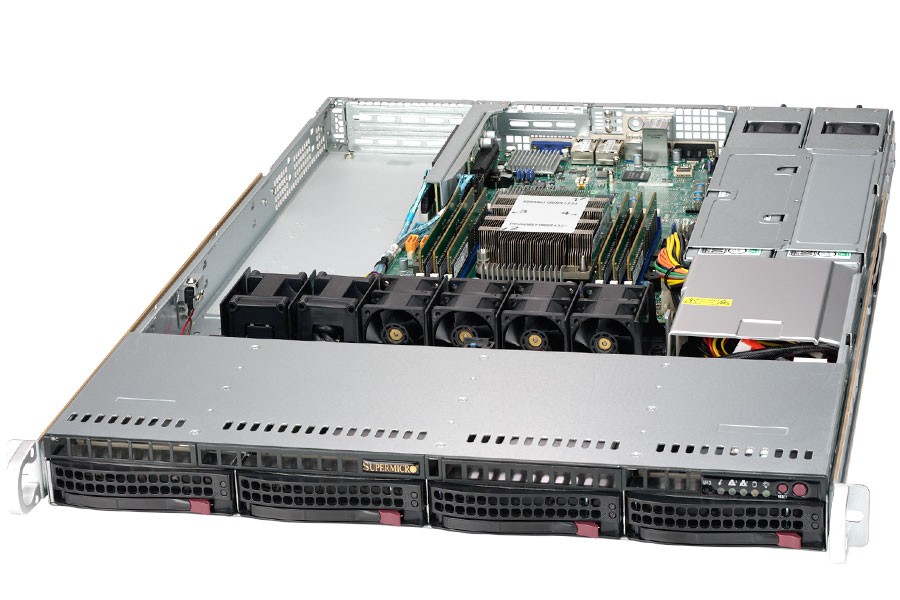

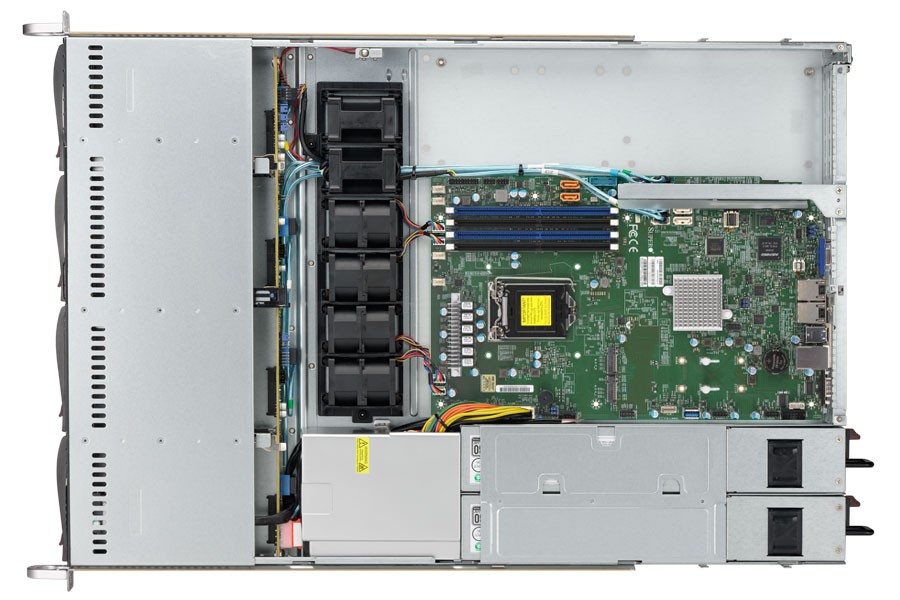

| Cooling | 5x 4cm heavy duty counter-rotating fans with optimal fan speed control
|
| Operating Environment | RoHS:
RoHS Compliant Environmental Spec.: Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Details | Management
Software: Intel® Node Manager IPMI 2.0 NMI SSM, SPM, SUM Watch Dog SuperDoctor® 5 |
|
|
Note: Image above may show a varied configuration or optional part. Please refer to parts list for standard parts included.
CPU
Select CPU:
MEMORY
Select Memory Capacity:
Enterprise-Class HDD/SSD
Select Storage Capacity:
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 2TB
+ $129.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 4TB
+ $172.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 6TB
+ $199.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 8TB
+ $249.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 10TB
+ $299.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 12TB
+ $302.00
WD Ultrastar 3.5" SATA 6Gb/s 7200 RPM HDD 14TB
+ $349.00
OPERATING SYSTEM
Select Operating System:
*Please contact our sales for more operating system options
Added
Fedora Linux Desktop Edition Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Ubuntu Linux LTS Server Edition (No Media) (32-Bit/64-Bit)
+ $99.00
Linux Fedora Workstation Edition Linux 64-bit (No Media)
+ $99.00
CentOS Enterprise Linux (No Media) (32-Bit/64-bit)
+ $99.00
Linux Ubuntu LTS Workstation Edition 32/64-bit (No Media)
+ $99.00
Debian Linux (No Media) (32-Bit/64-Bit)
+ $99.00
Microsoft Windows Server 2016 Standard 64-bit-1User
+ $799.00
WARRANTY
Select Warranty:
*1 Year Parts Replacement Warranty
Added
3 Year Parts Replacement Warranty - Server Value $500 to $2000
+ $299.00
3 Year Parts Replacement Warranty - Server Value $2001 to $4000
+ $399.00
3 Year Parts Replacement Warranty - Server Value $4001 to $7000
+ $599.00
3 Year Parts Replacement Warranty - Server Value $7001 to $10000
+ $899.00
3 Year Parts Replacement Warranty - Server Value Over $10000
+ $1,280.00
